105670-0191 ZEXEL 9 420 615 775 BOSCH AUTOM. ADVANCE MECHANISM 9420615775 1056700191 8944154061




Information autom. advance mechanism

BOSCH 9 420 615 775 9420615775
ZEXEL 105670-0191 1056700191
ISUZU 8944154061 8944154061
105670-0191 AUTOM. ADVANCE MECHANISM
Rating:
22
Buy AUTOM. ADVANCE MECHANISM 105670-0191 zexel genuine, new aftermarket engine parts with delivery

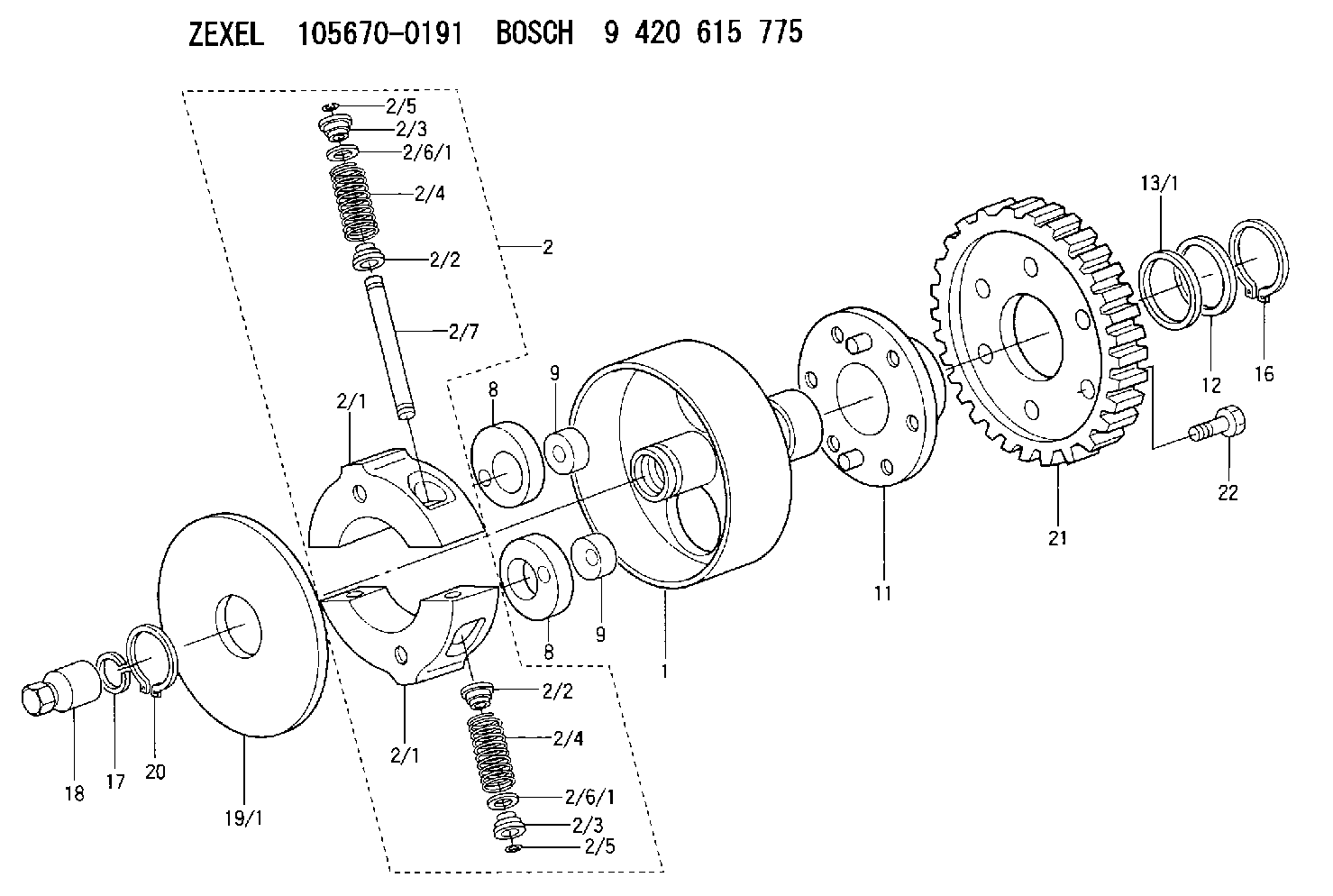

Scheme ###:

1. [1] 156700-0200 FLANGE BUSHING
2. [1] 156710-1720 FLYWEIGHT ASSEMBLY
2/1. [2] 156702-9520 FLYWEIGHT
2/1. [2] 156702-9520 FLYWEIGHT
2/2. [4] 156707-0100 SLOTTED WASHER
2/2. [4] 156707-0100 SLOTTED WASHER
2/3. [4] 156707-0000 SLOTTED WASHER
2/3. [4] 156707-0000 SLOTTED WASHER
2/4. [4] 156704-4100 COMPRESSION SPRING
2/4. [4] 156704-4100 COMPRESSION SPRING
2/5. [4] 156709-0200 LOCKING WASHER
2/5. [4] 156709-0200 LOCKING WASHER
2/6/1. [0] 156708-3600 SHIM D15.5&11.5T0.1
2/6/1. [0] 156708-3700 SHIM D15.5&11.5T0.2
2/6/1. [0] 156708-3800 SHIM D15.5&11.5T0.3
2/6/1. [0] 156708-3900 SHIM D15.5&11.5T0.4
2/6/1. [0] 156708-4000 SHIM D15.5&11.5T0.5
2/6/1. [0] 156708-4100 SHIM D15.5&11.5T0.6
2/6/1. [0] 156708-4200 SHIM D15.5&11.5T0.7
2/6/1. [0] 156708-4300 SHIM D15.5&11.5T0.8
2/6/1. [0] 156708-4400 SHIM D15.5&11.5T0.9
2/6/1. [0] 156708-4500 SHIM D15.5&11.5T1.0
2/6/1. [0] 156708-4500 SHIM D15.5&11.5T1.0
2/7. [2] 156706-0000 PIN
8. [2] 156703-0500 ECCENTRIC DISC
8. [2] 156703-0500 ECCENTRIC DISC
9. [2] 156703-0600 ECCENTRIC DISC
9. [2] 156703-0600 ECCENTRIC DISC
11. [1] 156701-0220 FLANGE BUSHING
12. [1] 156708-0000 SHIM D46.0&34.1T2.85
13/1. [0] 156708-0100 SHIM D46.0&34.1T0.1
13/1. [0] 156708-0200 SHIM D46.0&34.1T0.12
13/1. [0] 156708-0300 SHIM D46.0&34.1T0.14
13/1. [0] 156708-0400 SHIM D46.0&34.1T0.16
13/1. [0] 156708-0500 SHIM D46.0&34.1T0.18
13/1. [0] 156708-0600 SHIM D46.0&34.1T0.2
13/1. [0] 156708-0700 SHIM D46.0&34.1T0.3
16. [1] 016020-3420 LOCKING WASHER
17. [1] 029321-2040 LOCKING WASHER
18. [1] 131325-2100 UNION NUT
19/1. [0] 156708-1800 SHIM D104&26.2T1.9
19/1. [0] 156708-1900 SHIM D104&26.2T2.0
19/1. [0] 156708-2000 SHIM D104&26.2T2.1
20. [1] 016020-2620 LOCKING WASHER
21. [1] 156211-6500 TOOTHED GEAR
22. [6] 139006-4300 BLEEDER SCREW

Cross reference number

Zexel num
Bosch num
Firm num
Name
105670-0191
9 420 615 775
NP-EP/SCDM1000-1600A2/R
8944154061  ISUZU
AUTOM. ADVANCE MECHANISM
K 14KJ AUTOMATIC TIMER TIMER SCDM TIMER




Information:

Fuel Recommendations
Fill the fuel tank at the end of each day of operation to drive out moist air and prevent condensation. Maintain a fairly consistent level in the day tank (near the top) to avoid drawing moisture into the tank as the level decreases.Do not fill the tank to the top. Fuel expands as it warms, and may overflow.Do not fill fuel filters with fuel before installing them. Contaminated fuel causes accelerated wear to fuel system parts.
Use fuel only as recommended in this section. Fuel grades recommended for use in Caterpillar diesel engines are: No.2-D diesel fuel with low sulfur (0.05 percent maximum), or regular sulfur (0.5 percent maximum). No. 1 grades are acceptable.The following chart lists worldwide fuel standards which meet Caterpillar requirements. Aviation kerosene-type fuels meeting acceptable limits may also be used as an engine fuel. The following chart lists some of the acceptable kerosene-type fuels. Fuel viscosity is a major concern with aviation fuels. A minimum viscosity of 1.4 cSt at 38°C (100°F) is required to properly lubricate Caterpillar fuel system components. These kerosene-type fuels have a lower viscosity for low temperature operation.The kerosene-type fuels have less energy per unit volume than diesel fuels, producing less peak power. More kerosene-type fuel is needed than diesel fuel to do the same amount of work.Caterpillar Diesel Engines are capable of burning a wide range of distillate fuels. Burning clean, stable blends of distillate fuel meeting the following requirements will provide quality engine service life. When economics or fuel availability dictate, other fuel types may be burned in the engine. Consult your Caterpillar dealer for more information and advice on any specific fuel.Cetane Number
Under average starting conditions, direct injection engines require a minimum cetane number of 40. A higher cetane value may be required for high altitude or cold weather operation.Filterability
Clean fuels should have no more than 0.1 percent of sediment and water. Fuel stored for extended periods of time may oxidize and form solids, causing filtering problems.Pour Point
Fuel pour point should be at least 6°C (10°F) below the lowest ambient temperature at which the engines must start and operate. Lower pour points of No.1 or No.1-D fuel may be necessary in extremely cold weather.Cloud Point
The cloud point should be below the lowest ambient temperature at which the engines must start and operate, to prevent the fuel filter elements from plugging with wax crystals. Refer to Fuel Problems in Cold Weather Operation for additional information.Viscosity
Fluid viscosity is a measure of resistance to flow. Fuel viscosity is important because it effects lubrication of fuel system components, and fuel atomization. The provided viscosity limits address both of those effects.Additives
Fuel additives are generally not recommended or needed for the specified fuels listed. Acetone improvers can be used as necessary for direct injection engine requirements. Biocides may be needed to eliminate microorganism growth in storage tanks. In cold conditions, treatment for entrained water may also be necessary.Consult your fuel supplier about the use of additives to prevent incompatibility among additives already in

Have questions with 105670-0191?





Group cross 105670-0191 ZEXEL

Nissan-Diesel

9 420 615 465
NP-EP/SCDM900-1850A4/R
16810T9304
AUTOM. ADVANCE MECHANISM
9 420 616 517
NP-EP/SCDM1300-1800A4/R

AUTOM. ADVANCE MECHANISM

Isuzu

9 420 615 104
NP-EP/SCDM1250-1500A3.5/R
8941719180
AUTOM. ADVANCE MECHANISM






Isuzu

9 420 616 870
NP-EP/SCDM1050-1600A3/R
8944154040
AUTOM. ADVANCE MECHANISM
9 420 616 871
NP-EP/SCDM1050-1600A3/R
8944154050
AUTOM. ADVANCE MECHANISM
9 420 615 029
8941788210
AUTOM. ADVANCE MECHANISM
9 420 615 380
NP-EP/SCDM1050-1600A5/R

AUTOM. ADVANCE MECHANISM

Isuzu

9 420 615 381
8944154060
AUTOM. ADVANCE MECHANISM
105670-0191
9 420 615 775
NP-EP/SCDM1000-1600A2/R
8944154061
AUTOM. ADVANCE MECHANISM
