105644-0500 ZEXEL 9 420 615 696 BOSCH AUTOM. ADVANCE MECHANISM 9420615696 1056440500 1157404100

Information autom. advance mechanism

BOSCH 9 420 615 696 9420615696

ZEXEL 105644-0500 1056440500

ISUZU 1157404100 1157404100

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105644-0500 zexel genuine, new aftermarket engine parts with delivery

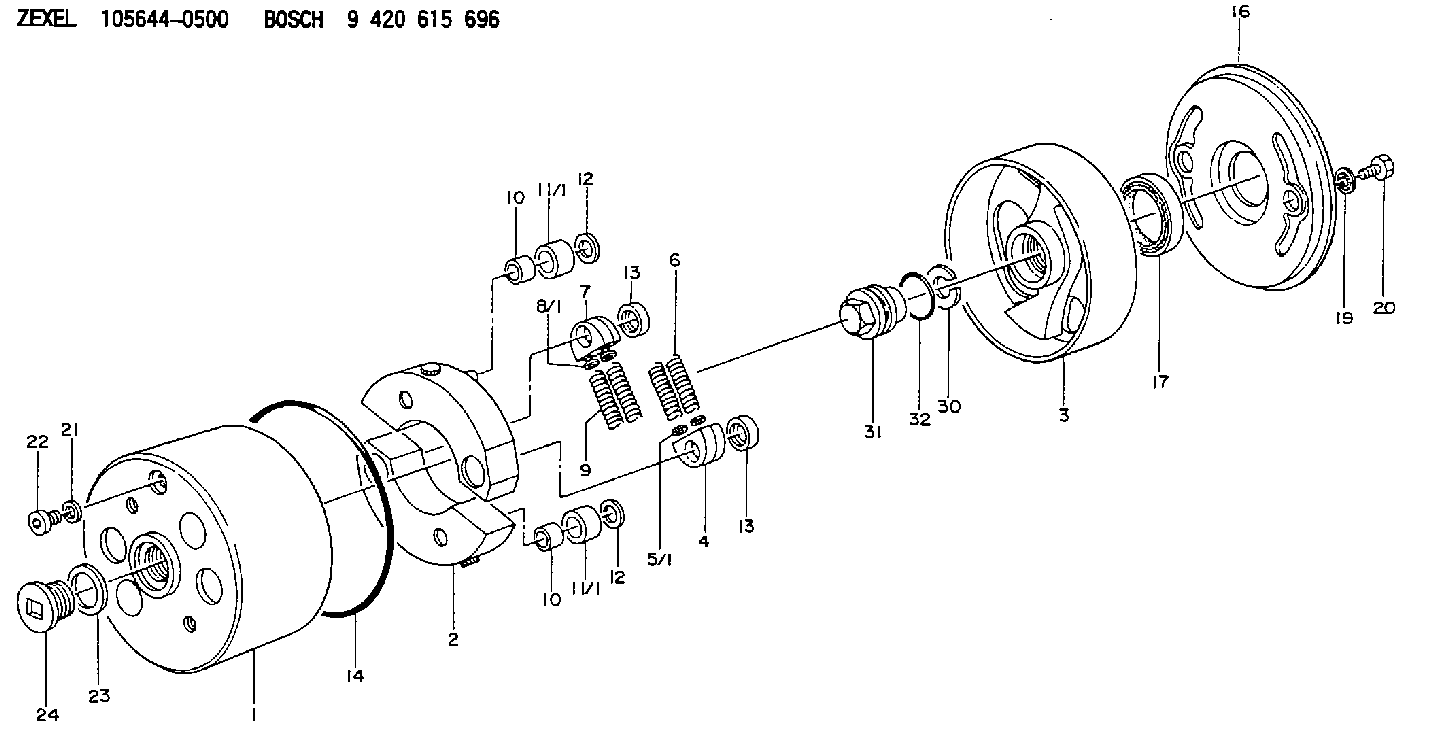

Scheme ###:

1.	[1]	156400-0820	TIMING-DEVICE HOUSING
2.	[2]	156405-8420	FLYWEIGHT
3.	[1]	156402-1920	FLANGE BUSHING
4.	[2]	156410-0300	SLOTTED WASHER
5/1.	[0]	029310-6220	SHIM D11.5&6.5T0.10
5/1.	[0]	029310-6230	SHIM D11.5&6.5T0.20
5/1.	[0]	029310-6240	SHIM D11.5&6.5T0.25
5/1.	[0]	029310-6250	SHIM D11.5&6.5T1.00
5/1.	[0]	029310-6370	SHIM D11.5&6.5T0.30
5/1.	[0]	029310-6380	SHIM D11.5&6.5T0.40
5/1.	[0]	029310-6390	SHIM D11.5&6.5T0.50
5/1.	[0]	029310-6400	SHIM D11.5&6.5T0.60
5/1.	[0]	029310-6410	SHIM D11.5&6.5T0.70
5/1.	[0]	029310-6420	SHIM D11.5&6.5T0.80
5/1.	[0]	029310-6430	SHIM D11.5&6.5T0.90
5/1.	[0]	139406-0500	SHIM D11.5&6.5T1.5
5/1.	[0]	139406-0600	SHIM D11.5&6.5T2.0
6.	[2]	156421-7500	COMPRESSION SPRING
7.	[2]	156410-0300	SLOTTED WASHER
8/1.	[0]	029310-6220	SHIM D11.5&6.5T0.10
8/1.	[0]	029310-6230	SHIM D11.5&6.5T0.20
8/1.	[0]	029310-6240	SHIM D11.5&6.5T0.25
8/1.	[0]	029310-6250	SHIM D11.5&6.5T1.00
8/1.	[0]	029310-6370	SHIM D11.5&6.5T0.30
8/1.	[0]	029310-6380	SHIM D11.5&6.5T0.40
8/1.	[0]	029310-6390	SHIM D11.5&6.5T0.50
8/1.	[0]	029310-6400	SHIM D11.5&6.5T0.60
8/1.	[0]	029310-6410	SHIM D11.5&6.5T0.70
8/1.	[0]	029310-6420	SHIM D11.5&6.5T0.80
8/1.	[0]	029310-6430	SHIM D11.5&6.5T0.90
8/1.	[0]	139406-0500	SHIM D11.5&6.5T1.5
8/1.	[0]	139406-0600	SHIM D11.5&6.5T2.0
9.	[2]	156421-7500	COMPRESSION SPRING
10.	[2]	156412-0100	BUSHING
10.	[2]	156412-0100	BUSHING
11/1.	[1]	156413-0600	ROLLER D18.00
11/1.	[1]	156413-0600	ROLLER D18.00
11/1.	[1]	156413-0700	ROLLER D17.90
11/1.	[1]	156413-0800	ROLLER D18.10
11/1.	[1]	156413-0900	ROLLER D18.20
12.	[2]	029301-0420	PLAIN WASHER
12.	[2]	029301-0420	PLAIN WASHER
13.	[2]	156417-0000	RETAINER
13.	[2]	156417-0000	RETAINER
14.	[1]	156415-0101	O-RING
16.	[1]	156408-0100	COVER
17.	[1]	156409-0100	PACKING RING
19.	[2]	139508-0000	GASKET D13.2&8.2T1
20.	[2]	029005-8080	BLEEDER SCREW M8P1.25L15
21.	[1]	139510-0000	GASKET D15.2&10.2T1.0
22.	[1]	156419-0600	CAPSULE
23.	[1]	156419-0300	GASKET
24.	[1]	156419-0500	CAP
30.	[1]	029321-4030	LOCKING WASHER
31.	[1]	131325-2201	UNION NUT
32.	[1]	156415-0200	O-RING

Include in #1:

101603-8121 as AUTOM. ADVANCE MECHANIS

101603-8260

Cross reference number

Zexel num

Bosch num

Firm num

Name

105644-0500

9 420 615 696

1157404100 ISUZU

AUTOM. ADVANCE MECHANISM
K 14KE AUTOMATIC TIMER TIMER SAD(Z) TIMER
