105643-5041 ZEXEL 9 420 616 512 BOSCH AUTOM. ADVANCE MECHANISM 9420616512 1056435041 ez40085xx003




Information autom. advance mechanism

BOSCH 9 420 616 512 9420616512
ZEXEL 105643-5041 1056435041
M.BISHI-HI.-NAG EZ40085XX003 ez40085xx003
105643-5041 AUTOM. ADVANCE MECHANISM
Rating:
19
Buy AUTOM. ADVANCE MECHANISM 105643-5041 zexel genuine, new aftermarket engine parts with delivery

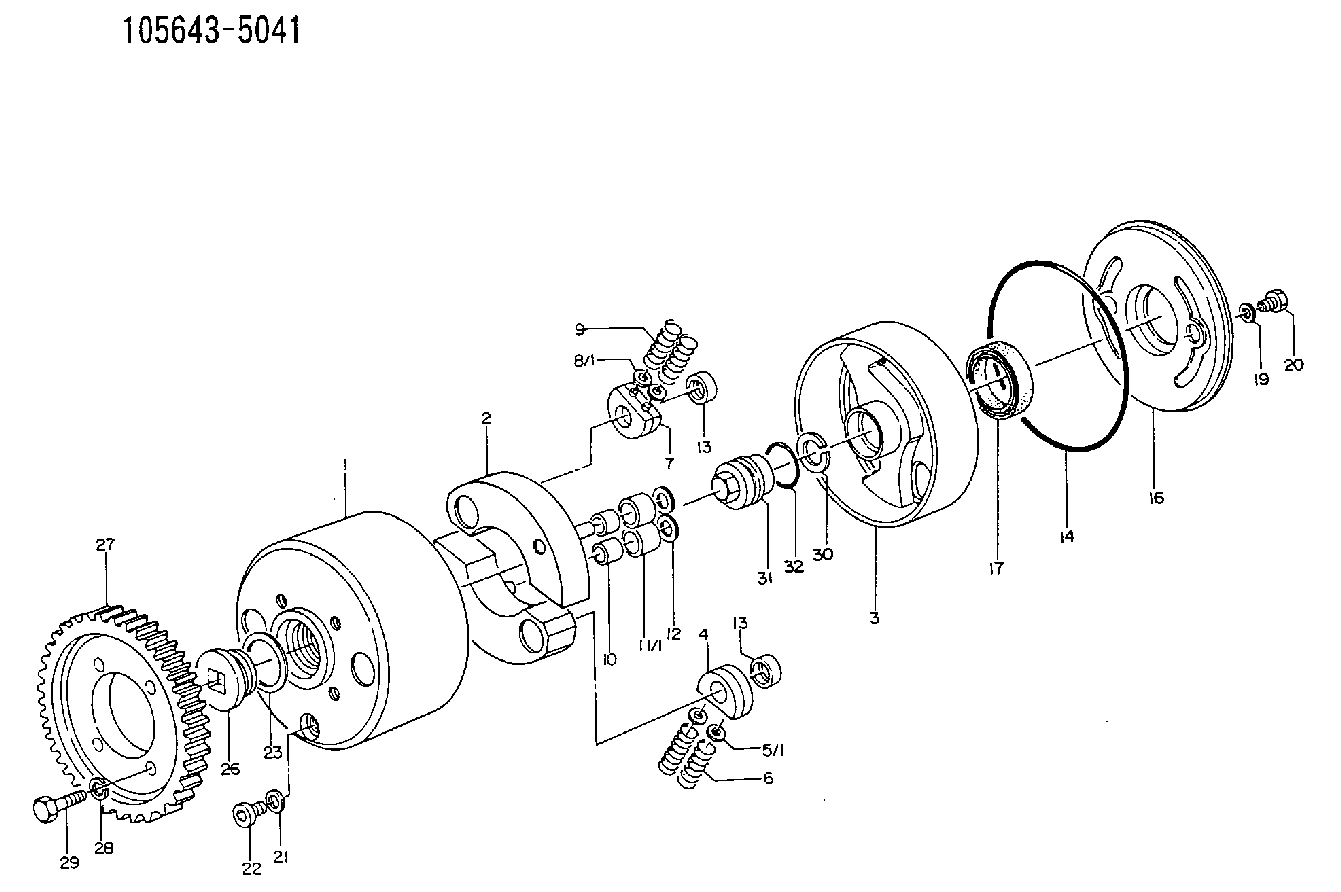

Scheme ###:

1. [1] 156400-0520 TIMING-DEVICE HOUSING
2. [2] 156405-2520 FLYWEIGHT
3. [1] 156402-1620 FLANGE BUSHING
4. [2] 156410-0300 SLOTTED WASHER
5/1. [0] 029310-6220 SHIM D11.5&6.5T0.10
5/1. [0] 029310-6230 SHIM D11.5&6.5T0.20
5/1. [0] 029310-6240 SHIM D11.5&6.5T0.25
5/1. [0] 029310-6250 SHIM D11.5&6.5T1.00
5/1. [0] 029310-6370 SHIM D11.5&6.5T0.30
5/1. [0] 029310-6380 SHIM D11.5&6.5T0.40
5/1. [0] 029310-6390 SHIM D11.5&6.5T0.50
5/1. [0] 029310-6400 SHIM D11.5&6.5T0.60
5/1. [0] 029310-6410 SHIM D11.5&6.5T0.70
5/1. [0] 029310-6420 SHIM D11.5&6.5T0.80
5/1. [0] 029310-6430 SHIM D11.5&6.5T0.90
5/1. [0] 139406-0500 SHIM D11.5&6.5T1.5
5/1. [0] 139406-0600 SHIM D11.5&6.5T2.0
6. [2] 156411-4200 COMPRESSION SPRING
7. [2] 156410-0300 SLOTTED WASHER
8/1. [0] 029310-6220 SHIM D11.5&6.5T0.10
8/1. [0] 029310-6230 SHIM D11.5&6.5T0.20
8/1. [0] 029310-6240 SHIM D11.5&6.5T0.25
8/1. [0] 029310-6250 SHIM D11.5&6.5T1.00
8/1. [0] 029310-6370 SHIM D11.5&6.5T0.30
8/1. [0] 029310-6380 SHIM D11.5&6.5T0.40
8/1. [0] 029310-6390 SHIM D11.5&6.5T0.50
8/1. [0] 029310-6400 SHIM D11.5&6.5T0.60
8/1. [0] 029310-6410 SHIM D11.5&6.5T0.70
8/1. [0] 029310-6420 SHIM D11.5&6.5T0.80
8/1. [0] 029310-6430 SHIM D11.5&6.5T0.90
8/1. [0] 139406-0500 SHIM D11.5&6.5T1.5
8/1. [0] 139406-0600 SHIM D11.5&6.5T2.0
9. [2] 156411-4200 COMPRESSION SPRING
10. [2] 156412-0100 BUSHING
11/1. [1] 156413-0600 ROLLER D18.00
11/1. [1] 156413-0700 ROLLER D17.90
11/1. [1] 156413-0800 ROLLER D18.10
11/1. [1] 156413-0900 ROLLER D18.20
12. [2] 029301-0420 PLAIN WASHER
13. [2] 156417-0000 RETAINER
13. [2] 156417-0000 RETAINER
14. [1] 156415-0001 O-RING
16. [1] 156408-0100 COVER
17. [1] 156409-0000 PACKING RING
19. [2] 029341-0130 GASKET
20. [2] 029005-8080 BLEEDER SCREW M8P1.25L15
21. [1] 029331-0190 GASKET D14&10.2T1
22. [1] 156316-0000 CAPSULE
26. [1] 156314-0301 CAP
27. [1] 156420-0000 TOOTHED GEAR
28. [4] 014110-8440 LOCKING WASHER
29. [4] 156603-8900 BLEEDER SCREW
30. [1] 029321-4030 LOCKING WASHER
31. [1] 131325-2201 UNION NUT
32. [1] 029632-4060 O-RING

Include in #1:

101401-1021 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num
Bosch num
Firm num
Name
105643-5041
9 420 616 512
NP-EP/SAZ700-1200B5LN5
EZ40085XX003  M.BISHI-HI.-NAG
AUTOM. ADVANCE MECHANISM
K 14KE AUTOMATIC TIMER TIMER SAD(Z) TIMER




Information:


MAIN BEARINGS
1. Bolt (partially hidden under oil pump). 2. Front cover. 3. Oil pump. 4. Bolts (two per cap). 5. Main bearing cap.
ADAPTER
6. 8S5131 Adpater.4. Use a commercially available bearing removal tool to roll out upper halves of main bearings.Install Main Bearings
1. Use a commercially available bearing removal tool to install the upper halves of the main bearings. Lubricate with clean engine oil (SAE 30) before installing. The main bearing half with the oil hole is the upper half. Be sure to install correctly.2. Lubricate lower halves of main bearings with engine oil (SAE 30). Install main bearing caps (5) so number on cap corresponds with number on saddle of cylinder block. Both numbers must be on same side of block.3. Put engine oil on the threads of the bolts and the face of the washers and install bolts (4) into the cylinder block.4. Use adapter (6) to install bolt (1) when front cover (2) and oil pump (3) are mounted on cylinder block. For 1140 (36B1-36B1923), 1145 (97B1-97B6154), 1150 (96B1-96B6580), 1160 (95B1-95B13691) Engines, install bolt (1) using a 9S7353 Torque Wrench with an 8S5131 Adapter. Do not tighten bolt (1) at this time. Tighten bolt (1) in the number sequence shown with the other bolts but tighten it to a first torque of 48 lb. ft. (6.6 mkg) and a last torque of 140 lb. ft. (19.4 mkg). See Step 5 for torque of the other bolts.For 1140 (36B1924-Up), 1145 (97B6155-Up), 1150 (96B6581-Up), 1160 (95B13692-Up) Engines, install bolt (1) using a 9S7353 Torque Wrench with an 8S5131 Adapter. Do not tighten bolt (1) at this time. Tighten bolt (1) in the number sequence shown with the other bolts but tighten it to a first torque of 24 lb. ft. (3.3 mkg). Put a mark on the bolt and cap. Tighten the bolt an added 120° 5° from the mark. See Step 6 for torque of the other bolts.
MAIN BEARINGS
1. Bolt (partially hidden under oil pump). 2. Front cover. 3. Oil pump. 4. Bolts (two per cap). 5. Main bearing cap.
ADAPTER
6. 8S5131 Adapter.5. Tighten the bolts for the main bearing caps in the number sequence shown to a first torque of 60 15 lb. ft. (8.3 2.1 mkg). Tighten all bolts in the number sequence shown (hand torque only) to a last torque of 175 10 lb. ft. (24.2 1.4 mkg).
BOLT TIGHTENING SEQUENCE6. Tighten the bolts for the main bearing caps in the number sequence shown to a first torque of 30 3 lb. ft. (4.1 0.4 mkg). Put a mark on each bolt and cap and tighten, in the number sequence shown, an added 120° 5° from the mark.
