105643-1200 ZEXEL 9 420 615 377 BOSCH AUTOM. ADVANCE MECHANISM 9420615377 1056431200 1157405120




Information autom. advance mechanism

BOSCH 9 420 615 377 9420615377
ZEXEL 105643-1200 1056431200
ISUZU 1157405120 1157405120
105643-1200 AUTOM. ADVANCE MECHANISM
Rating:
9
Buy AUTOM. ADVANCE MECHANISM 105643-1200 zexel genuine, new aftermarket engine parts with delivery

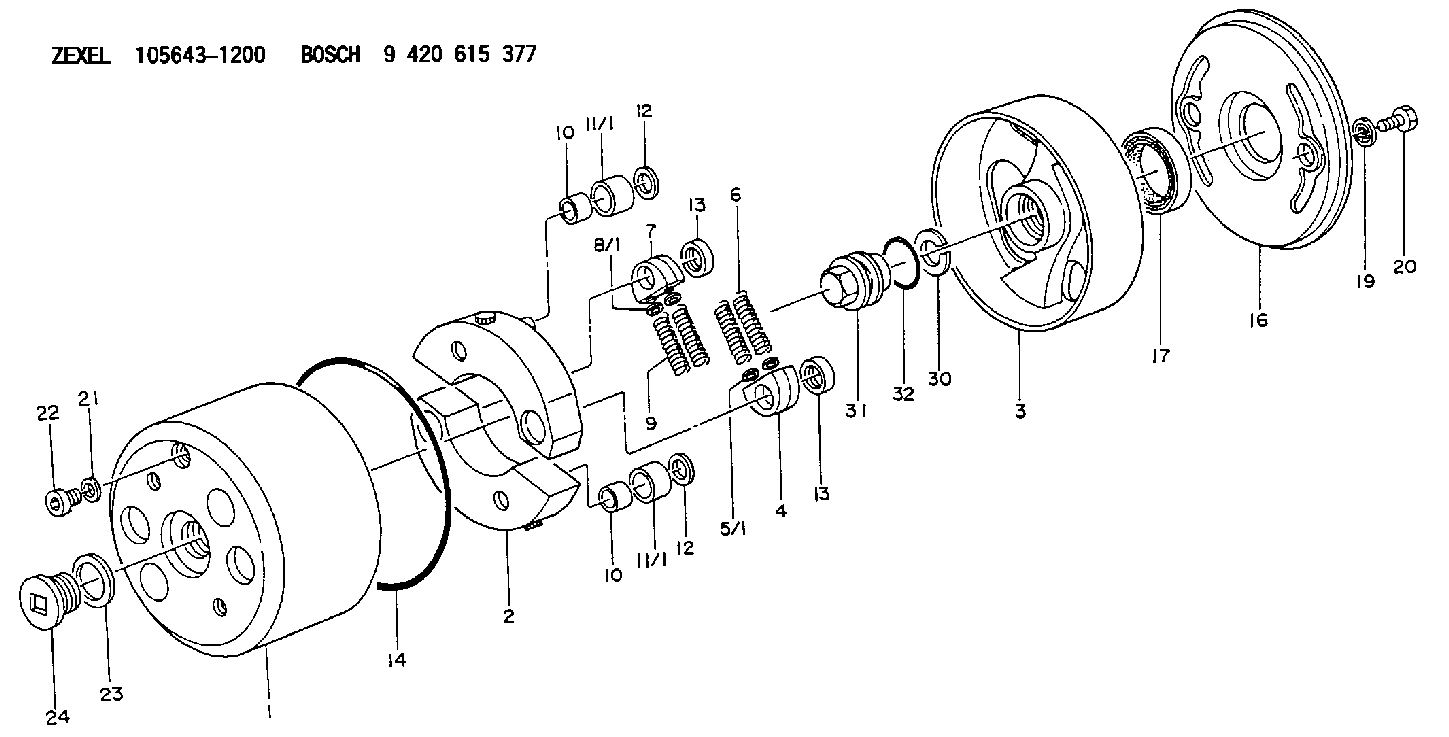

Scheme ###:

1. [1] 156400-1020 TIMING-DEVICE HOUSING
2. [2] 156405-7920 FLYWEIGHT
3. [1] 156423-2420 FLANGE BUSHING
4. [2] 156410-0300 SLOTTED WASHER
5/1. [0] 029310-6220 SHIM D11.5&6.5T0.10
5/1. [0] 029310-6230 SHIM D11.5&6.5T0.20
5/1. [0] 029310-6240 SHIM D11.5&6.5T0.25
5/1. [0] 029310-6250 SHIM D11.5&6.5T1.00
5/1. [0] 029310-6370 SHIM D11.5&6.5T0.30
5/1. [0] 029310-6380 SHIM D11.5&6.5T0.40
5/1. [0] 029310-6390 SHIM D11.5&6.5T0.50
5/1. [0] 029310-6400 SHIM D11.5&6.5T0.60
5/1. [0] 029310-6410 SHIM D11.5&6.5T0.70
5/1. [0] 029310-6420 SHIM D11.5&6.5T0.80
5/1. [0] 029310-6430 SHIM D11.5&6.5T0.90
5/1. [0] 139406-0500 SHIM D11.5&6.5T1.5
5/1. [0] 139406-0600 SHIM D11.5&6.5T2.0
6. [2] 156421-1400 COMPRESSION SPRING
7. [2] 156410-0300 SLOTTED WASHER
8/1. [0] 029310-6220 SHIM D11.5&6.5T0.10
8/1. [0] 029310-6230 SHIM D11.5&6.5T0.20
8/1. [0] 029310-6240 SHIM D11.5&6.5T0.25
8/1. [0] 029310-6250 SHIM D11.5&6.5T1.00
8/1. [0] 029310-6370 SHIM D11.5&6.5T0.30
8/1. [0] 029310-6380 SHIM D11.5&6.5T0.40
8/1. [0] 029310-6390 SHIM D11.5&6.5T0.50
8/1. [0] 029310-6400 SHIM D11.5&6.5T0.60
8/1. [0] 029310-6410 SHIM D11.5&6.5T0.70
8/1. [0] 029310-6420 SHIM D11.5&6.5T0.80
8/1. [0] 029310-6430 SHIM D11.5&6.5T0.90
8/1. [0] 139406-0500 SHIM D11.5&6.5T1.5
8/1. [0] 139406-0600 SHIM D11.5&6.5T2.0
9. [2] 156421-1400 COMPRESSION SPRING
10. [2] 156412-0100 BUSHING
10. [2] 156412-0100 BUSHING
11/1. [1] 156413-0600 ROLLER D18.00
11/1. [1] 156413-0600 ROLLER D18.00
11/1. [1] 156413-0700 ROLLER D17.90
11/1. [1] 156413-0800 ROLLER D18.10
11/1. [1] 156413-0900 ROLLER D18.20
12. [2] 029301-0420 PLAIN WASHER
12. [2] 029301-0420 PLAIN WASHER
13. [2] 156417-0000 RETAINER
13. [2] 156417-0000 RETAINER
14. [1] 156415-0101 O-RING
16. [1] 156408-0100 COVER
17. [1] 156409-0100 PACKING RING
19. [2] 139508-0000 GASKET D13.2&8.2T1
20. [2] 029005-8080 BLEEDER SCREW M8P1.25L15
21. [1] 139510-0000 GASKET D15.2&10.2T1.0
22. [1] 156419-0600 CAPSULE
23. [1] 156419-0300 GASKET
24. [1] 156419-0500 CAP
30. [1] 029321-4030 LOCKING WASHER
31. [1] 131325-2201 UNION NUT
32. [1] 156415-0200 O-RING

Include in #1:

101603-8930 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num
Bosch num
Firm num
Name
105643-1200
9 420 615 377
NP-EP/SA1100-1400B2DL
1157405120  ISUZU
AUTOM. ADVANCE MECHANISM
K 14KE AUTOMATIC TIMER TIMER SAD(Z) TIMER




Information:


WATER SLEEVE CLAMP
1. Clamp.3. Use water sleeve tool (2) to move water sleeve (3) into front cover.4. Remove the cylinder head retaining bolts (4) and (5).
MOVING WATER SLEEVE
2. 8S6692 Water Sleeve Tool. 3. Water sleeve.
CYLINDER HEAD
4. Bolts (four each head). 5. Bolts (eighteen each head).
Be sure fuel injection nozzles are removed before removing head. Nozzles extend through the head and nozzle tips can be broken off if nozzles are not removed from the head.
5. Install two 1P7407 Lifting Eye Bolts in the cylinder head. Attach a hoist and remove the cylinder head assembly, the weight is approx. 85 lbs. (39 kg).
REMOVING CYLINDER HEADInstall Cylinder Head Assemblies
1. Clean the mating surfaces of the cylinder head and cylinder block. Install new cylinder head gasket, clean and dry. Clean bores in cylinder head and inspect and lubricate O-rings for water sleeves.2. Install two 1P7407 Lifting Eye Bolts in the cylinder head. Attach a hoist and install the cylinder head assembly. Coat the cylinder head retaining bolt threads with 9M3710 Anti-Seize Compound. Install the bolts and tighten in the following Step sequence. Step A: Tighten bolts 1 through 18 in numerical order to 60 10 lb. ft. (8.3 1.4 mkg).Step B: Retighten bolts 1 through 18 in numerical order to 95 5 lb. ft. (13.1 0.7 mkg).Step C: Finally tighten bolts 1 through 18 in numerical order (hand tighten only) to 95 5 lb. ft. (13.1 0.7 mkg).Step D: Tighten bolts 19, 20, 21, and 22 in numerical order to 32 5 lb. ft. (4.4 0.7 mkg).
CYLINDER HEAD BOLT LOCATION3. Use the 8S6692 Water Sleeve Tool to slide water sleeve into cylinder head and install clamp.Disassemble Cylinder Head
1. Place head on the FT806 Cylinder Head Bench or the 8S6691 Cylinder Head Stand. Use FT967 Adapter Plates to mount head on the FT806 Cylinder Head Bench.2. Use a 5S1330 or 7F4291 Valve Spring Compressor (1) to remove the valves and valve springs.
REMOVING VALVES
1. 5S1330 Valve Spring Compressor illustrated.3. Use the 8S2263 Valve Spring Tester to check valve spring tension.4. The exhaust valve seats have replaceable inserts. To remove, use the 8S7170 Valve Seat Insert Puller Group.
REMOVING EXHAUST VALVE SEAT INSERTS The valve guides are cast in the cylinder head. If the guides show wear or bellmouthing, they can be restored to original tolerances through knurling.Assemble Cylinder Head
1. Lubricate valve stems with clean engine oil (SAE 30) before installing valves into cylinder head. Earlier engines use a valve spring retainer and washer combination instead of the one piece valve spring retainer shown.
CYLINDER HEAD

Have questions with 105643-1200?





Group cross 105643-1200 ZEXEL

Isuzu

105643-1200
9 420 615 377
NP-EP/SA1100-1400B2DL
1157405120
AUTOM. ADVANCE MECHANISM
9 420 617 211

AUTOM. ADVANCE MECHANISM

AUTOM. ADVANCE MECHANISM

Mitsubishi

F 01G 29P 00F
NP-EP/SA1150-1350B2.5DL
ME756578
AUTOM. ADVANCE MECHANISM
