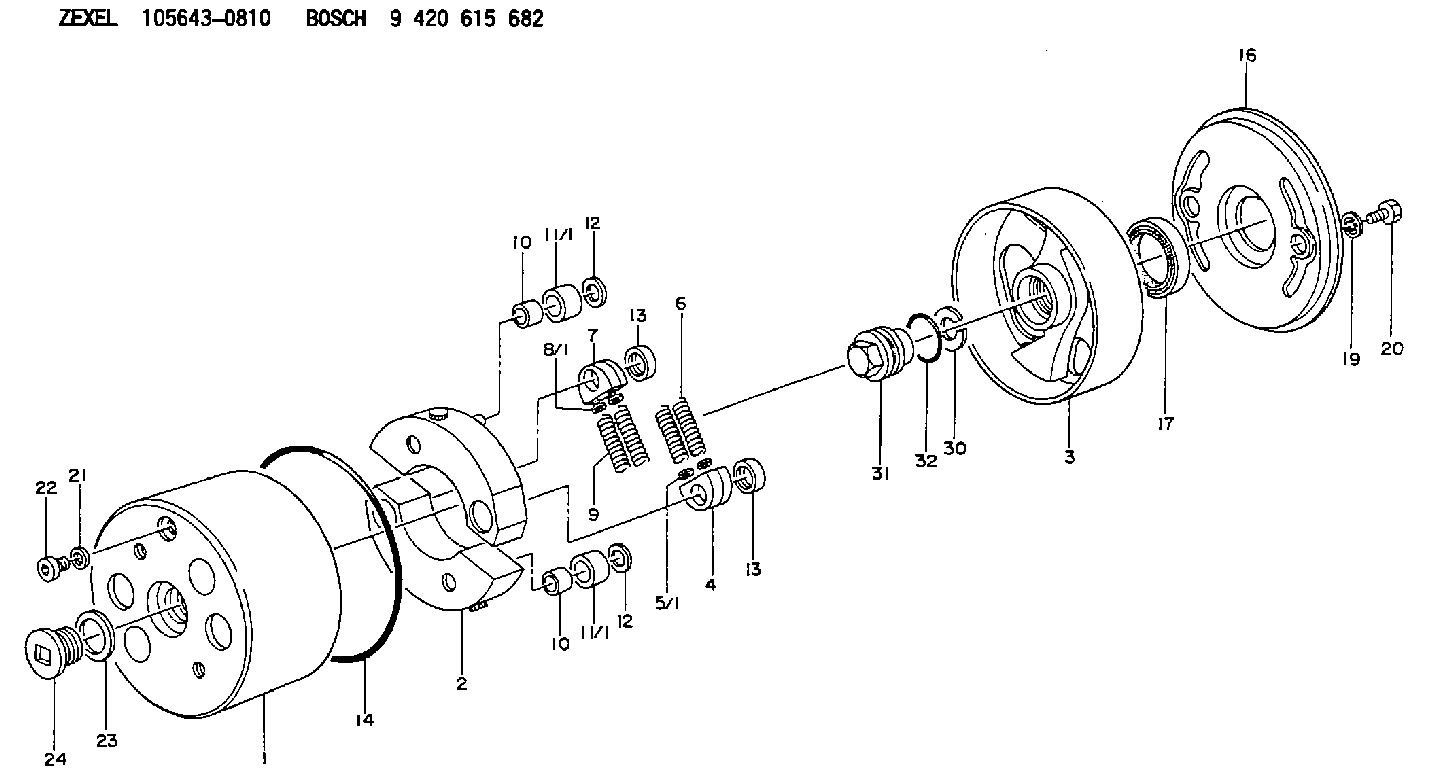

105643-0810 ZEXEL 9 420 615 682 BOSCH AUTOM. ADVANCE MECHANISM 9420615682 1056430810 1157404080

2. Remove bolt (1) and retainer (2) that hold the oil lines in the BrakeSaver control valve. 3. Disconnect oil lines (3) and (4) from the oil cooler. Remove oil lines (3) and (4) from the BrakeSaver control valve.4. Fasten a hoist to the oil cooler. 5. Remove two bolts (8) to disconnect elbow (10) from front bonnet (9). Remove two bolts (7) to disconnect front bonnet (9) from the water pump.6. Remove four bolts (5) to disconnect the rear bonnet from the cylinder block. Disconnect bracket (12).7. Remove oil cooler (11), front bonnet (9) and rear bonnet (6) from the engine as a unit. The weight is approximately 120 lb. (54 kg).8. Make a separation of front bonnet (9) and rear bonnet (6) from oil cooler (11). 9. Clean oil cooler core tubes (13) with a .150 in. (3.81 mm) diameter rod.Install Oil Cooler (Brakesaver)
1. Inspect all O-ring seals and gaskets for damage and make replacements if needed. Put clean oil on the O-ring seals. 2. Install rear bonnet (1) and front bonnet (3) to oil cooler (2). 3. Fasten a hoist and put the oil cooler and bonnets as a unit in place on the engine. Connect bracket (4) but do not tighten the bolts at this time.4. Install the gasket and four bolts (4) that hold rear bonnet (1) to the engine block. Do not tighten the bolts at this time.5. Install the gasket and two bolts (5) that hold front bonnet (3) to the water pump. Do not tighten the bolts at this time.6. Install the gasket and bolts (6) that hold elbow (7) to the front bonnet. Tighten all the bolts. 7. Make sure the O-ring seals are in place on the oil lines and install oil lines (8) and (9). 8. Install retainer (10) to hold the oil lines in the BrakeSaver control valve. If the bottom plug in the oil pan was removed, put the split (seam) of the gasket for the plug against the oil pan. If either plug on the side of the oil pan was removed, put 5P3413 Thread Sealant on the threads and tighten the plug to a torque of 60 8 lb.ft. (80 11 N m).9. Fill the engine with coolant and oil. See LUBRICATION AND MAINTENANCE GUIDE.
