105643-0310 ZEXEL 9 420 617 067 BOSCH AUTOM. ADVANCE MECHANISM 9420617067 1056430310

Information autom. advance mechanism

BOSCH 9 420 617 067 9420617067

ZEXEL 105643-0310 1056430310

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105643-0310 zexel genuine, new aftermarket engine parts with delivery

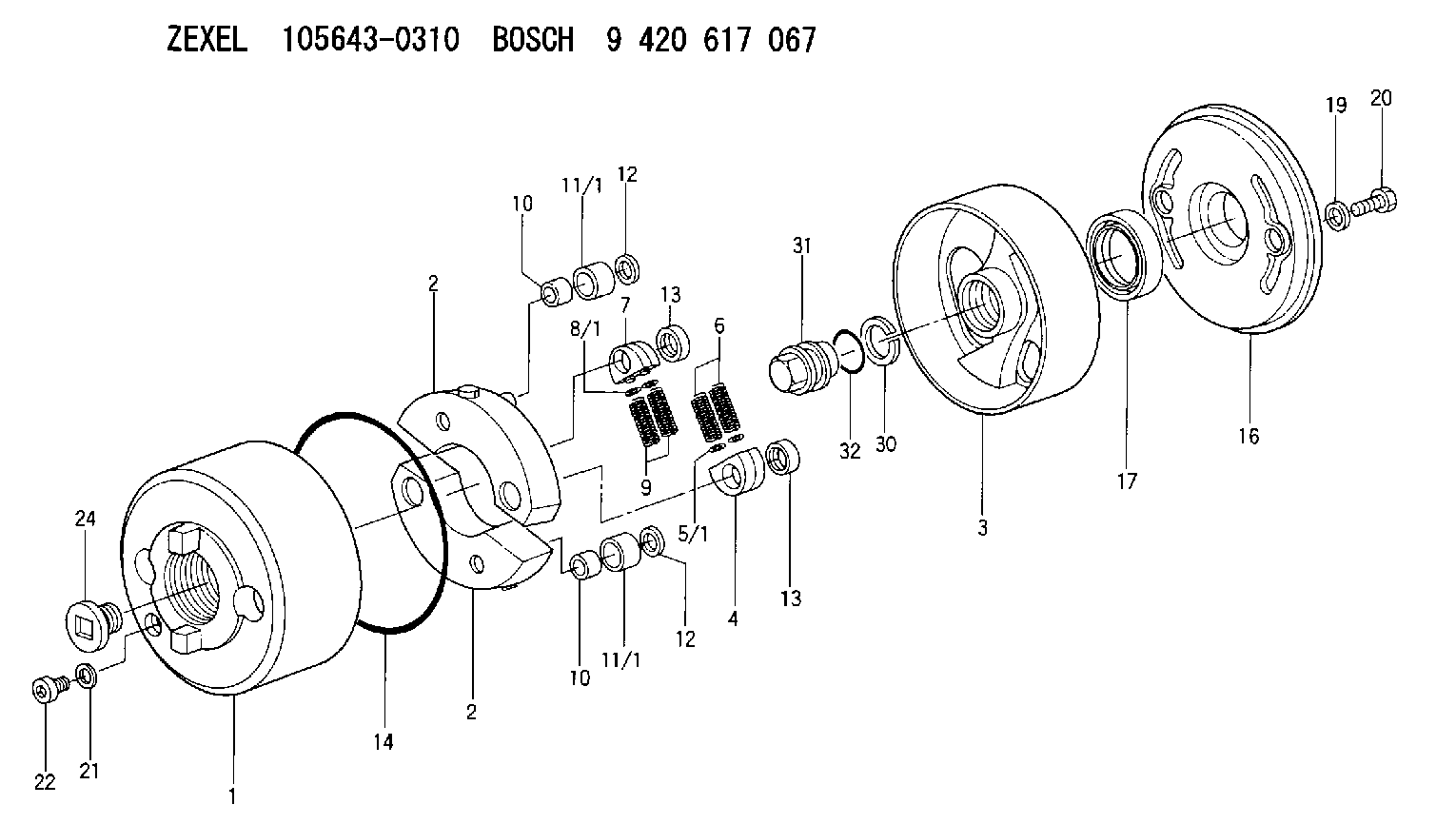

Scheme ###:

1.	[1]	156400-0720	TIMING-DEVICE HOUSING
2.	[2]	156405-2420	FLYWEIGHT
2.	[2]	156405-2420	FLYWEIGHT
3.	[1]	156402-5720	FLANGE BUSHING
4.	[2]	156410-0300	SLOTTED WASHER
5/1.	[0]	029310-6220	SHIM D11.5&6.5T0.10
5/1.	[0]	029310-6230	SHIM D11.5&6.5T0.20
5/1.	[0]	029310-6240	SHIM D11.5&6.5T0.25
5/1.	[0]	029310-6250	SHIM D11.5&6.5T1.00
5/1.	[0]	029310-6370	SHIM D11.5&6.5T0.30
5/1.	[0]	029310-6380	SHIM D11.5&6.5T0.40
5/1.	[0]	029310-6390	SHIM D11.5&6.5T0.50
5/1.	[0]	029310-6400	SHIM D11.5&6.5T0.60
5/1.	[0]	029310-6410	SHIM D11.5&6.5T0.70
5/1.	[0]	029310-6420	SHIM D11.5&6.5T0.80
5/1.	[0]	029310-6430	SHIM D11.5&6.5T0.90
5/1.	[0]	139406-0500	SHIM D11.5&6.5T1.5
5/1.	[0]	139406-0600	SHIM D11.5&6.5T2.0
6.	[2]	156411-9200	COMPRESSION SPRING
7.	[2]	156410-0300	SLOTTED WASHER
8/1.	[0]	029310-6220	SHIM D11.5&6.5T0.10
8/1.	[0]	029310-6230	SHIM D11.5&6.5T0.20
8/1.	[0]	029310-6240	SHIM D11.5&6.5T0.25
8/1.	[0]	029310-6250	SHIM D11.5&6.5T1.00
8/1.	[0]	029310-6370	SHIM D11.5&6.5T0.30
8/1.	[0]	029310-6380	SHIM D11.5&6.5T0.40
8/1.	[0]	029310-6390	SHIM D11.5&6.5T0.50
8/1.	[0]	029310-6400	SHIM D11.5&6.5T0.60
8/1.	[0]	029310-6410	SHIM D11.5&6.5T0.70
8/1.	[0]	029310-6420	SHIM D11.5&6.5T0.80
8/1.	[0]	029310-6430	SHIM D11.5&6.5T0.90
8/1.	[0]	139406-0500	SHIM D11.5&6.5T1.5
8/1.	[0]	139406-0600	SHIM D11.5&6.5T2.0
9.	[2]	156411-9200	COMPRESSION SPRING
10.	[2]	156412-0100	BUSHING
10.	[2]	156412-0100	BUSHING
11/1.	[1]	156413-0600	ROLLER D18.00
11/1.	[1]	156413-0600	ROLLER D18.00
11/1.	[1]	156413-0700	ROLLER D17.90
11/1.	[1]	156413-0800	ROLLER D18.10
11/1.	[1]	156413-0900	ROLLER D18.20
12.	[2]	029301-0420	PLAIN WASHER
12.	[2]	029301-0420	PLAIN WASHER
13.	[2]	156417-0000	RETAINER
13.	[2]	156417-0000	RETAINER
14.	[1]	156415-0001	O-RING
16.	[1]	156408-0100	COVER
17.	[1]	156409-0000	PACKING RING
19.	[2]	029341-0130	GASKET
20.	[2]	029005-8080	BLEEDER SCREW M8P1.25L15
21.	[1]	029331-0190	GASKET D14&10.2T1
22.	[1]	156316-0000	CAPSULE
24.	[1]	156314-0301	CAP
30.	[1]	029321-4030	LOCKING WASHER
31.	[1]	131325-2201	UNION NUT
32.	[1]	029632-4060	O-RING

Include in #1:

101603-9020 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num

Bosch num

Firm num

Name

105643-0310

9 420 617 067

AUTOM. ADVANCE MECHANISM
K 14KE AUTOMATIC TIMER TIMER SAD(Z) TIMER

Information:

Camshaft rotation counterclockwise in view shown.Firing order (injection sequence) ... 1, 5, 3, 6, 2, 4Injection timing before TC (top center):Precombustion Chamber (PC) ... 10 1°*Direct Injection (DI) ... 29 1°*Direct Injection (DI) ... 28 1°*Direct Injection (DI) ... 26.5 1°*Direct Injection (DI) ... 22.5 1°*Make reference to DI FUEL SYSTEM CHART in FUEL SYSTEM IDENTIFICATION section to find correct injection pump groups.(1) Torque for bushing ... 150 10 lb. ft.(205 14 N m)
A - 8S7167 GAUGE
B - 5P4158 GAUGE (5) Bore for the rack and diameter of the rack: Bearing at the rear (new) ... .5018 .0018 in.(12.746 0.046 mm)Bearing at the front (new) ... .5023 .0018 in.(12.758 0.046 mm)Diameter of fuel rack (new) ... .4985 .0002 in.(12.662 0.005 mm)Maximum permissible clearance between rack and bearings (worn) ... .007 in.(0.18 mm)(6) Bore in bearings for the camshaft (new) ... 2.1255 .0015 in.(53.988 0.038 mm) Diameter of bearing surfaces of the camshaft (new) ... 2.1220 .0005 in.(53.899 0.013 mm)Maximum permissible clearance between the bearings and the camshaft ... .010 in.(0.25 mm)
PRECHAMBER(9) Torque for all nuts that hold the fuel lines ... 30 5 lb. ft.(40 7 N m)(10) Torque for the nuts that hold the nozzles ... 55 5 lb. ft.(75 7 N m)(11) Body.
DIRECT INJECTION(12) Nozzle. Tighten nozzle finger tight on body (11).(13) Torque for precombustion chamber or direct injection adapter ... 150 10 lb. ft.(205 14 N m)(14) Torque for glow plug ... 120 24 lb. in.(13.6 2.8 N m)
