105639-2090 ZEXEL 9 420 617 226 BOSCH AUTOM. ADVANCE MECHANISM 9420617226 1056392090

Information autom. advance mechanism

BOSCH 9 420 617 226 9420617226

ZEXEL 105639-2090 1056392090

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105639-2090 zexel genuine, new aftermarket engine parts with delivery

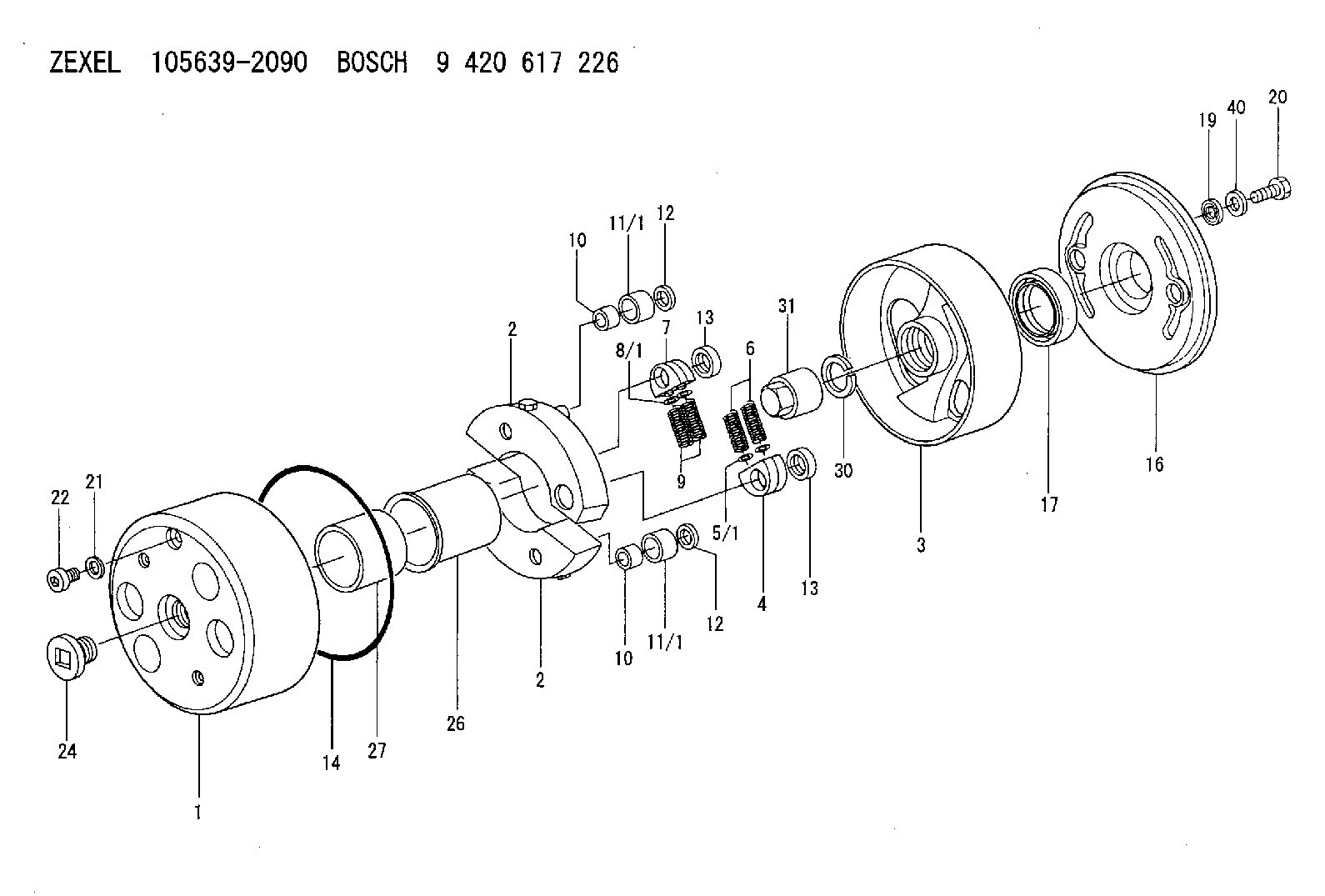

Scheme ###:

1.	[1]	156350-0220	TIMING-DEVICE HOUSING
2.	[2]	156355-2420	FLYWEIGHT
2.	[2]	156355-2420	FLYWEIGHT
3.	[1]	156352-1120	FLANGE BUSHING
4.	[2]	156360-0100	SLOTTED WASHER
5/1.	[0]	156373-0000	SHIM D19&10.2T0.2
5/1.	[0]	156373-0100	SHIM D19&10.2T0.3
5/1.	[0]	156373-0200	SHIM D19&10.2T0.5
6.	[2]	156361-2200	COMPRESSION SPRING
7.	[2]	156360-0100	SLOTTED WASHER
8/1.	[0]	156373-0000	SHIM D19&10.2T0.2
8/1.	[0]	156373-0100	SHIM D19&10.2T0.3
8/1.	[0]	156373-0200	SHIM D19&10.2T0.5
9.	[2]	156361-2200	COMPRESSION SPRING
10.	[2]	156362-0000	BUSHING
10.	[2]	156362-0000	BUSHING
11/1.	[1]	156363-0000	ROLLER D27.90
11/1.	[1]	156363-0100	ROLLER D28.00
11/1.	[1]	156363-0200	ROLLER D28.10
11/1.	[1]	156363-0300	ROLLER D28.20
11/1.	[1]	156363-0300	ROLLER D28.20
12.	[2]	156368-0000	PLAIN WASHER
12.	[2]	156368-0000	PLAIN WASHER
13.	[2]	156367-0000	RETAINER
13.	[2]	156367-0000	RETAINER
14.	[1]	156365-0000	O-RING
16.	[1]	156358-0100	COVER
17.	[1]	156309-0000	PACKING RING
19.	[2]	156372-0020	GASKET
20.	[2]	156371-0000	BLEEDER SCREW
21.	[1]	029331-0190	GASKET D14&10.2T1
22.	[1]	156316-0000	CAPSULE
24.	[1]	156314-0501	CAP
26.	[1]	156369-0000	BUSHING
27.	[1]	156370-0000	SPACER RING
30.	[1]	029321-8020	LOCKING WASHER
31.	[1]	134325-0100	UNION NUT
40.	[6]	029311-0440	SHIM D18&10.3T0.40

Include in #1:

106471-4011 as AUTOM. ADVANCE MECHANIS

106471-4020

Cross reference number

Zexel num

Bosch num

Firm num

Name

105639-2090

9 420 617 226
NP-EP/SD400-720Z4.5DLN10

AUTOM. ADVANCE MECHANISM
K

Information:

start by: a) remove fuel injection pump housing and governor 1. Remove the fuel from the pump housing. Install the pump housing on tool (A).2. Remove priming pump (1). Remove the fuel filter.3. Remove fuel filter base assembly (2) from the top cover. 4. Remove elbow (3) and disc (4) from the fuel base assembly. The function of disc (4) is to keep the fuel in the pump housing from returning to the tank when the engine is not in operation. If the fuel tank is higher than the fuel pump housing, the disc is not needed. 5. Remove cover (5) and the fuel channel from the pump housing.6. Remove spring and bypass valve (6) from the housing.7. Remove check valve (7).8. Remove the fuel channel from cover (5). 9. Remove check valve (9) and spring from fuel channel (8) if so equipped. Earlier fuel systems have two check valves (7) and (9). Check valve (9) is not needed. Remove check valve (9) and the spring. Fill the hole in the fuel channel with weld, a rivet or a sheet metal drive screw that has sealant on it.Install Fuel Check Valve And Bypass Valve
1. Install fuel channel (1) on cover (2).2. Install spring and bypass valve (3) in the housing with the rounded end up. 3. Install check valve (4) evenly in the pump housing. Do not install a check valve that is bent.4. Install the cover on the pump housing. Be sure the bypass valve spring is in the cover groove. 5. Install disc (5). Install the elbow on the fuel base filter assembly. 6. Install fuel filter base assembly (6) on cover (2).7. Install priming pump (7). Install the fuel filter.8. Remove the fuel injection pump housing and governor from tool (A).end by: a) install fuel injection pump housing and governor
