Information autom. advance mechanism
BOSCH
9 420 616 504
9420616504
ZEXEL
105639-2030
1056392030
MITSUBISHI-HEAV
3256507030
3256507030
Rating:

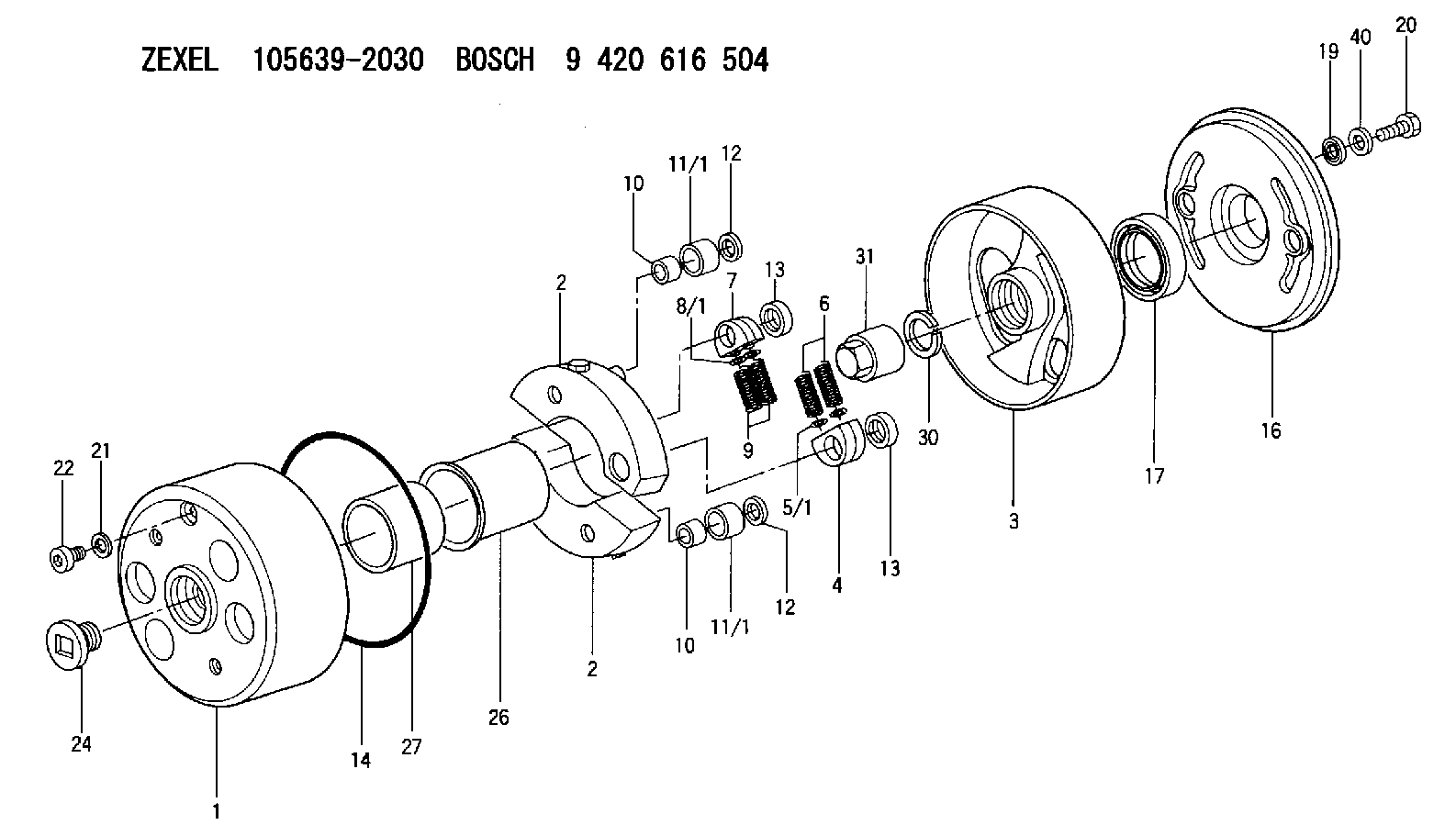

Scheme ###:
| 1. | [1] | 156350-0121 | TIMING-DEVICE HOUSING |
| 2. | [2] | 156355-2420 | FLYWEIGHT |
| 2. | [2] | 156355-2420 | FLYWEIGHT |
| 3. | [1] | 156352-0520 | FLANGE BUSHING |
| 4. | [2] | 156360-0100 | SLOTTED WASHER |
| 5/1. | [0] | 156373-0000 | SHIM D19&10.2T0.2 |
| 5/1. | [0] | 156373-0100 | SHIM D19&10.2T0.3 |
| 5/1. | [0] | 156373-0200 | SHIM D19&10.2T0.5 |
| 6. | [2] | 156361-0700 | COMPRESSION SPRING |
| 6B. | [2] | 156361-0800 | COMPRESSION SPRING |
| 6C. | [2] | 156361-0900 | COMPRESSION SPRING |
| 7. | [2] | 156360-0100 | SLOTTED WASHER |
| 8/1. | [0] | 156373-0000 | SHIM D19&10.2T0.2 |
| 8/1. | [0] | 156373-0100 | SHIM D19&10.2T0.3 |
| 8/1. | [0] | 156373-0200 | SHIM D19&10.2T0.5 |
| 9. | [2] | 156361-0700 | COMPRESSION SPRING |
| 9B. | [2] | 156361-0800 | COMPRESSION SPRING |
| 9C. | [2] | 156361-0900 | COMPRESSION SPRING |
| 10. | [2] | 156362-0000 | BUSHING |
| 10. | [2] | 156362-0000 | BUSHING |
| 11/1. | [1] | 156363-0000 | ROLLER D27.90 |
| 11/1. | [1] | 156363-0000 | ROLLER D27.90 |
| 11/1. | [1] | 156363-0100 | ROLLER D28.00 |
| 11/1. | [1] | 156363-0200 | ROLLER D28.10 |
| 11/1. | [1] | 156363-0300 | ROLLER D28.20 |
| 12. | [2] | 156368-0000 | PLAIN WASHER |
| 12. | [2] | 156368-0000 | PLAIN WASHER |
| 13. | [2] | 156367-0000 | RETAINER |
| 13. | [2] | 156367-0000 | RETAINER |
| 14. | [1] | 156365-0000 | O-RING |
| 16. | [1] | 156358-0100 | COVER |
| 17. | [1] | 156309-0000 | PACKING RING |
| 19. | [2] | 156372-0020 | GASKET |
| 20. | [2] | 156371-0000 | BLEEDER SCREW |
| 21. | [1] | 029331-0190 | GASKET D14&10.2T1 |
| 22. | [1] | 156316-0000 | CAPSULE |
| 24. | [1] | 156314-0501 | CAP |
| 26. | [1] | 156369-0000 | BUSHING |
| 27. | [1] | 156370-0000 | SPACER RING |
| 30. | [1] | 029321-8020 | LOCKING WASHER |
| 31. | [1] | 134325-0100 | UNION NUT |
| 40. | [6] | 029311-0440 | SHIM D18&10.3T0.40 |
Include in #1:
106671-2310
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105639-2030
3256507030 MITSUBISHI-HEAV
AUTOM. ADVANCE MECHANISM
K 14KD AUTOMATIC TIMER TIMER SP(Z) TIMER
K 14KD AUTOMATIC TIMER TIMER SP(Z) TIMER
