Information autom. advance mechanism
BOSCH
9 420 615 343
9420615343
ZEXEL
105636-1670
1056361670
MITSUBISHI
ME722760
me722760
Rating:

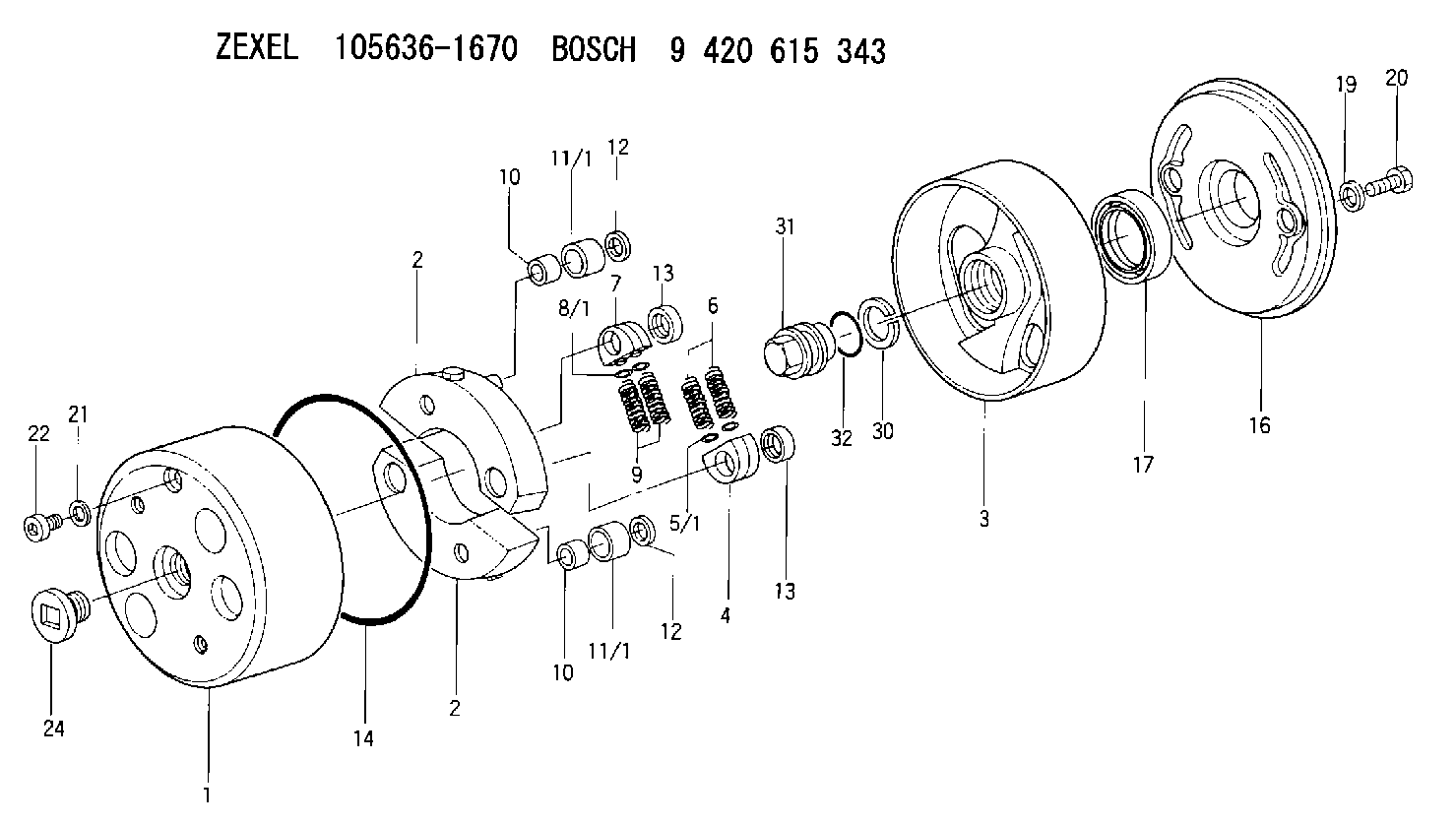

Scheme ###:
| 1. | [1] | 156300-4320 | TIMING-DEVICE HOUSING |
| 2. | [2] | 156305-0520 | FLYWEIGHT |
| 2. | [2] | 156305-0520 | FLYWEIGHT |
| 3. | [1] | 156302-9820 | FLANGE BUSHING |
| 4. | [2] | 156310-0000 | SLOTTED WASHER |
| 5/1. | [0] | 029310-8520 | SHIM D14&8.4T0.2 |
| 5/1. | [0] | 029310-8530 | SHIM D14&8.4T0.4 |
| 5/1. | [0] | 029310-8540 | SHIM D14&8.4T0.5 |
| 5/1. | [0] | 029310-8550 | SHIM D14&8.4T0.6 |
| 5/1. | [0] | 029310-8560 | SHIM D14&8.4T0.7 |
| 5/1. | [0] | 029310-8680 | SHIM D14&8.4T1.0 |
| 5/1. | [0] | 139408-0000 | SHIM D14&8.4T0.30 |
| 5/1. | [0] | 139408-0100 | SHIM D14&8.4T0.80 |
| 5/1. | [0] | 139408-0200 | SHIM D14&8.4T0.90 |
| 5/1. | [0] | 139408-0300 | SHIM D14&8.4T0.10 |
| 5/1. | [0] | 139408-0500 | SHIM D14&8.4T1.5 |
| 5/1. | [0] | 139408-0600 | SHIM D14&8.4T2.0 |
| 6. | [2] | 156321-8800 | COMPRESSION SPRING |
| 7. | [2] | 156310-0000 | SLOTTED WASHER |
| 8/1. | [0] | 029310-8520 | SHIM D14&8.4T0.2 |
| 8/1. | [0] | 029310-8530 | SHIM D14&8.4T0.4 |
| 8/1. | [0] | 029310-8540 | SHIM D14&8.4T0.5 |
| 8/1. | [0] | 029310-8550 | SHIM D14&8.4T0.6 |
| 8/1. | [0] | 029310-8560 | SHIM D14&8.4T0.7 |
| 8/1. | [0] | 029310-8680 | SHIM D14&8.4T1.0 |
| 8/1. | [0] | 139408-0000 | SHIM D14&8.4T0.30 |
| 8/1. | [0] | 139408-0100 | SHIM D14&8.4T0.80 |
| 8/1. | [0] | 139408-0200 | SHIM D14&8.4T0.90 |
| 8/1. | [0] | 139408-0300 | SHIM D14&8.4T0.10 |
| 8/1. | [0] | 139408-0500 | SHIM D14&8.4T1.5 |
| 8/1. | [0] | 139408-0600 | SHIM D14&8.4T2.0 |
| 9. | [2] | 156321-8800 | COMPRESSION SPRING |
| 10. | [2] | 156312-0000 | BUSHING |
| 10. | [2] | 156312-0000 | BUSHING |
| 11/1. | [1] | 156313-0000 | ROLLER D23.9 |
| 11/1. | [1] | 156313-0100 | ROLLER D24.0 |
| 11/1. | [1] | 156313-0200 | ROLLER D24.1 |
| 11/1. | [1] | 156313-0300 | ROLLER D24.2 |
| 11/1. | [1] | 156313-0300 | ROLLER D24.2 |
| 12. | [2] | 029301-2250 | PLAIN WASHER D23&12T3.5 |
| 12. | [2] | 029301-2250 | PLAIN WASHER D23&12T3.5 |
| 13. | [2] | 156317-0100 | RETAINER |
| 13. | [2] | 156317-0100 | RETAINER |
| 14. | [1] | 156315-0200 | O-RING |
| 16. | [1] | 156308-0600 | COVER |
| 17. | [1] | 156309-0000 | PACKING RING |
| 19. | [2] | 156319-0100 | GASKET |
| 20. | [2] | 156633-4800 | BLEEDER SCREW |
| 21. | [1] | 029331-0190 | GASKET D14&10.2T1 |
| 22. | [1] | 156316-0000 | CAPSULE |
| 24. | [1] | 156314-0501 | CAP |
| 30. | [1] | 029321-8020 | LOCKING WASHER |
| 31. | [1] | 134325-0300 | UNION NUT |
| 32. | [1] | 029632-8010 | O-RING |
Include in #1:
106871-7270
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105636-1670
ME722760 MITSUBISHI
AUTOM. ADVANCE MECHANISM
K 14KD AUTOMATIC TIMER TIMER SP(Z) TIMER
K 14KD AUTOMATIC TIMER TIMER SP(Z) TIMER
Information:
Table 4
Cat Specification for Neat (B100) Biodiesel Blending Fuel
Property Test Method, United States Test Method, International Units Limits, B100 Blending Fuel
Density at 15°C “ASTM D1298” “ISO 3675” g/cm3 0.86-0.90
Viscosity at 40°C “ASTM D445” “ISO 3104” mm2/s (cSt) 1.9-6.0
Flash Point “ASTM D93” “ISO 3679” °C 93 minimum
Pour Point - - - 6 °C (10 °F) minimum below ambient temperature
- Summer “ASTM D97” “ISO 3016” °C
- Winter
Cloud Point “ASTM D2500” °C Report
Sulfur Content(1) “ASTM D5453” “ISO 20846” “ISO 20884” percent weight 0.0015(2) maximum
Distillation - - - -
T90 “ASTM D86” “ISO 3924” °C 360
Cetane Number “ASTM D613” “ISO 5165” % evaporation 45 minimum
Sulfated Ash “ASTM D874” “ISO 3987” or "ISO 6245" percent weight 0.02 maximum
Water and Sediment “ASTM D2709” “ISO 12937” percent volume 0.05 maximum
Water "ASTM D1796" "EN ISO 12937" % m/m -
Copper Corrosion, 3 hours at 50oC “ASTM D130” “ISO 2160” - No. 1
Oxidation Stability “EN 14112” or "EN 15751" “EN 14112” or "EN 15751" hours 3 minimum
Ramsbottom Carbon Residue on 10% bottoms "ASTM D524" “ISO 10370” %-m/m 0.30 maximum
Carbon Residue, Conradson (CCR) “ASTM D4530” - percent weight 0.05 maximum
Esterification "ASTM D 7806" or "ASTM D 7371" “EN 14103” percent volume 97.5 minimum
Total Acid Number “ASTM D664” “EN 14104” mg KOH/g 0.5 maximum
Methanol Content “EN 14110” “EN 14110” percent weight 0.2 maximum
Monoglycerides “ASTM D6584” “EN 14105” percent weight 0.8 maximum
Diglycerides “ASTM D6584” “EN 14105” percent weight 0.2 maximum
Triglycerides “ASTM D6584” “EN 14105” percent weight 0.2 maximum
Free Glycerin “ASTM D6584” “EN 14105” percent weight 0.02 maximum
Total Glycerin “ASTM D6584” “EN 14105” percent weight 0.240 maximum
Phosphorus Content “ASTM D4951” “EN 14107” percent weight 0.001 maximum
Calcium plus Magnesium “EN 14538” “EN 14538” ppm 5 maximum
Sodium plus Potassium “EN 14538” “EN 14538” ppm 5 maximum
Cold Soak Filterability “ASTM D7501” – seconds 360 maximum
Cleanliness “ASTM D7619” “ISO 4406” – (3)
Total contamination "EN 12662" "EN 12662" mg/kg 24 maximum
Appearance "ASTM D4176" - - Clear and Bright
(1) Methods for testing S are based on the sulfur content in diesel fuel used for blending. Consult with the fuel supplier and ensure the correct method has been used
(2) Sulfur level must be per local regulations. Higher S levels may be used where allowed.
(3) Recommended cleanliness level for fuel as dispensed into the engine fuel tank is ISO 18/16/13 or cleaner per the test methods listed. Refer to the contamination control Chapter for more details.Note: Fuels that meet the most current revision level of "ASTM D6751" or "EN 14214" may be used for blending with an acceptable distillate fuel. The conditions, recommendations, and limits that are noted in this Biodiesel section apply.Referenced Documents
Refer to the “Reference Material - Fuel” section of this Special Publication for the reference material for the information in this section.
