Information autom. advance mechanism
BOSCH
9 420 615 983
9420615983
ZEXEL
105636-1350
1056361350
MITSUBISHI
ME716869
me716869
Rating:

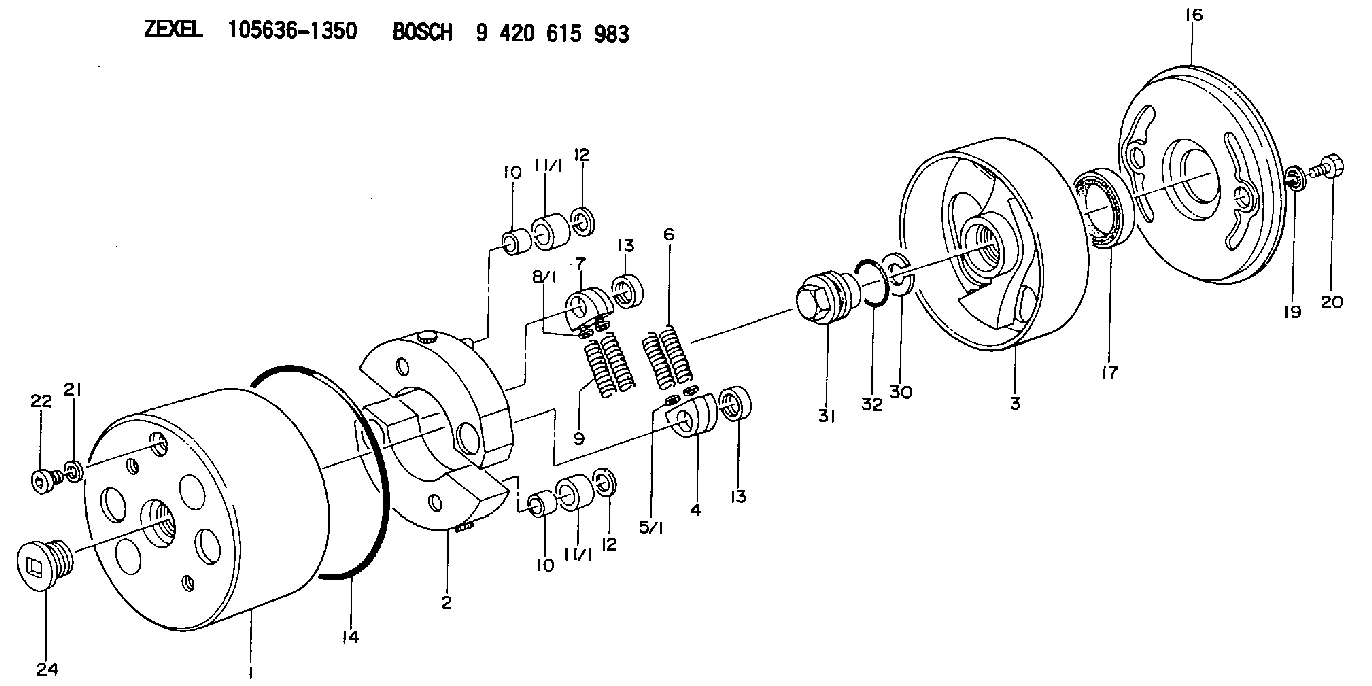

Scheme ###:
| 1. | [1] | 156300-4020 | TIMING-DEVICE HOUSING |
| 2. | [2] | 156305-1220 | FLYWEIGHT |
| 3. | [1] | 156302-9820 | FLANGE BUSHING |
| 4. | [2] | 156310-0000 | SLOTTED WASHER |
| 5/1. | [0] | 029310-8520 | SHIM D14&8.4T0.2 |
| 5/1. | [0] | 029310-8530 | SHIM D14&8.4T0.4 |
| 5/1. | [0] | 029310-8540 | SHIM D14&8.4T0.5 |
| 5/1. | [0] | 029310-8550 | SHIM D14&8.4T0.6 |
| 5/1. | [0] | 029310-8560 | SHIM D14&8.4T0.7 |
| 5/1. | [0] | 029310-8680 | SHIM D14&8.4T1.0 |
| 5/1. | [0] | 139408-0000 | SHIM D14&8.4T0.30 |
| 5/1. | [0] | 139408-0100 | SHIM D14&8.4T0.80 |
| 5/1. | [0] | 139408-0200 | SHIM D14&8.4T0.90 |
| 5/1. | [0] | 139408-0300 | SHIM D14&8.4T0.10 |
| 5/1. | [0] | 139408-0500 | SHIM D14&8.4T1.5 |
| 5/1. | [0] | 139408-0600 | SHIM D14&8.4T2.0 |
| 6. | [2] | 156321-3600 | COMPRESSION SPRING |
| 7. | [2] | 156310-0000 | SLOTTED WASHER |
| 8/1. | [0] | 029310-8520 | SHIM D14&8.4T0.2 |
| 8/1. | [0] | 029310-8530 | SHIM D14&8.4T0.4 |
| 8/1. | [0] | 029310-8540 | SHIM D14&8.4T0.5 |
| 8/1. | [0] | 029310-8550 | SHIM D14&8.4T0.6 |
| 8/1. | [0] | 029310-8560 | SHIM D14&8.4T0.7 |
| 8/1. | [0] | 029310-8680 | SHIM D14&8.4T1.0 |
| 8/1. | [0] | 139408-0000 | SHIM D14&8.4T0.30 |
| 8/1. | [0] | 139408-0100 | SHIM D14&8.4T0.80 |
| 8/1. | [0] | 139408-0200 | SHIM D14&8.4T0.90 |
| 8/1. | [0] | 139408-0300 | SHIM D14&8.4T0.10 |
| 8/1. | [0] | 139408-0500 | SHIM D14&8.4T1.5 |
| 8/1. | [0] | 139408-0600 | SHIM D14&8.4T2.0 |
| 9. | [2] | 156321-3600 | COMPRESSION SPRING |
| 10. | [2] | 156312-0000 | BUSHING |
| 10. | [2] | 156312-0000 | BUSHING |
| 11/1. | [1] | 156313-0000 | ROLLER D23.9 |
| 11/1. | [1] | 156313-0100 | ROLLER D24.0 |
| 11/1. | [1] | 156313-0100 | ROLLER D24.0 |
| 11/1. | [1] | 156313-0200 | ROLLER D24.1 |
| 11/1. | [1] | 156313-0300 | ROLLER D24.2 |
| 12. | [2] | 029301-2250 | PLAIN WASHER D23&12T3.5 |
| 12. | [2] | 029301-2250 | PLAIN WASHER D23&12T3.5 |
| 13. | [2] | 156317-0100 | RETAINER |
| 13. | [2] | 156317-0100 | RETAINER |
| 14. | [1] | 156315-0200 | O-RING |
| 16. | [1] | 156308-0600 | COVER |
| 17. | [1] | 156309-0000 | PACKING RING |
| 19. | [2] | 156319-0100 | GASKET |
| 20. | [2] | 156633-4800 | BLEEDER SCREW |
| 21. | [1] | 029331-0190 | GASKET D14&10.2T1 |
| 22. | [1] | 156316-0000 | CAPSULE |
| 24. | [1] | 156314-0501 | CAP |
| 30. | [1] | 029321-8020 | LOCKING WASHER |
| 31. | [1] | 134325-0300 | UNION NUT |
| 32. | [1] | 029632-8010 | O-RING |
Include in #1:
106873-2070
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105636-1350
ME716869 MITSUBISHI
AUTOM. ADVANCE MECHANISM
K 14KD AUTOMATIC TIMER TIMER SP(Z) TIMER
K 14KD AUTOMATIC TIMER TIMER SP(Z) TIMER
Information:
Table 1
Required Parts
Callout Part Number Description Qty
1 7E-3870 Muffler Clamp 1
2 309-3554 Diesel Particulate Filter Group 1
3 309-3592 Clamp Assembly 1
4 309-3864 Tube 1
5 122-4026 Spacer 4
6 7X-0605 Hard Washer 6
7 8T-4244 Nut 2
8 8T-4910 Bolt 4
9 271-6537 Exhaust Monitor Group 1
10 216-7990 Installation Assembly 1
11 282-0031 Remote Display 1
12 220-3778 Adapter Cable Assembly (INTERFACE) 1 Parts Location
Illustration 2 g01549193
(1) 7E-3870 Muffler Clamp (2) 309-3554 Diesel Particulate Filter Group (3) 309-3592 Clamp Assembly (4) 309-3864 Tube (5) 122-4026 Spacer (6) 7X-0605 Hard Washer (7) 8T-4244 Nut (8) 8T-4910 Bolt Installation Procedure
You must read and thoroughly understand the guidelines in Special Instruction, REHS1807, "Installation Guide for Particulate Trap Exhaust Filters" before you attempt any part of the following installation procedure.The installation procedure that follows is specific for the listed machines.Diesel Particulate Filter Installation
Remove the existing muffler.
Illustration 3 g01457287
(A) Flared end (1) 7E-3870 Muffler Clamp (4) 309-3864 Tube
Install 309-3864 Tube (4) by attaching flared end (A) to the turbocharger. Leave 7E-3870 Muffler Clamp (1) loosely attached on the other end of tube (4) .
Illustration 4 g01457295
(3) 309-3592 Clamp Assembly (Lower half) (5) 122-4026 Spacer (6) 7X-0605 Hard Washer (8) 8T-4910 Bolt
Remove the two bolts, two hard washers, two lock washers, and two nuts from 309-3592 Clamp Assembly (3). Keep these parts together with the upper half of the clamp assembly. These parts will be reinstalled in Step 8.
Install the lower half of 309-3592 Clamp Assembly (3) to the existing bracket near the turbocharger by using two 8T-4910 Bolts (8), two 7X-0605 Hard Washers (6), and two 122-4026 Spacers (5). Refer to Illustration 4.
Illustration 5 g01457434
(1) 7E-3870 Muffler Clamp (2) 309-3554 Diesel Particulate Filter Group (4) 309-3864 Tube (5) 122-4026 Spacer (6) 7X-0605 Hard Washer (7) 8T-4244 Nut (8) 8T-4910 Bolt
Install 309-3554 Diesel Particulate Filter Group (2) by inserting the inlet tube of the diesel particulate filter over 309-3864 Tube (4). The weight of the diesel particulate filter group is approximately 40 kg (88 lb).
Secure the diesel particulate filter to the other bracket on the engine block by using two 8T-4910 Bolts (8), two 8T-4244 Nuts (7), two 122-4026 Spacers (5), and four 7X-0605 Hard Washers (6) .
Tighten 7E-3870 Muffler Clamp (1) over the inlet tube of the diesel particulate filter
