105636-0520 ZEXEL 9 420 617 159 BOSCH AUTOM. ADVANCE MECHANISM 9420617159 1056360520 1685197062

Information autom. advance mechanism

BOSCH 9 420 617 159 9420617159

ZEXEL 105636-0520 1056360520

NISSAN-DIESEL 1685197062 1685197062

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105636-0520 zexel genuine, new aftermarket engine parts with delivery

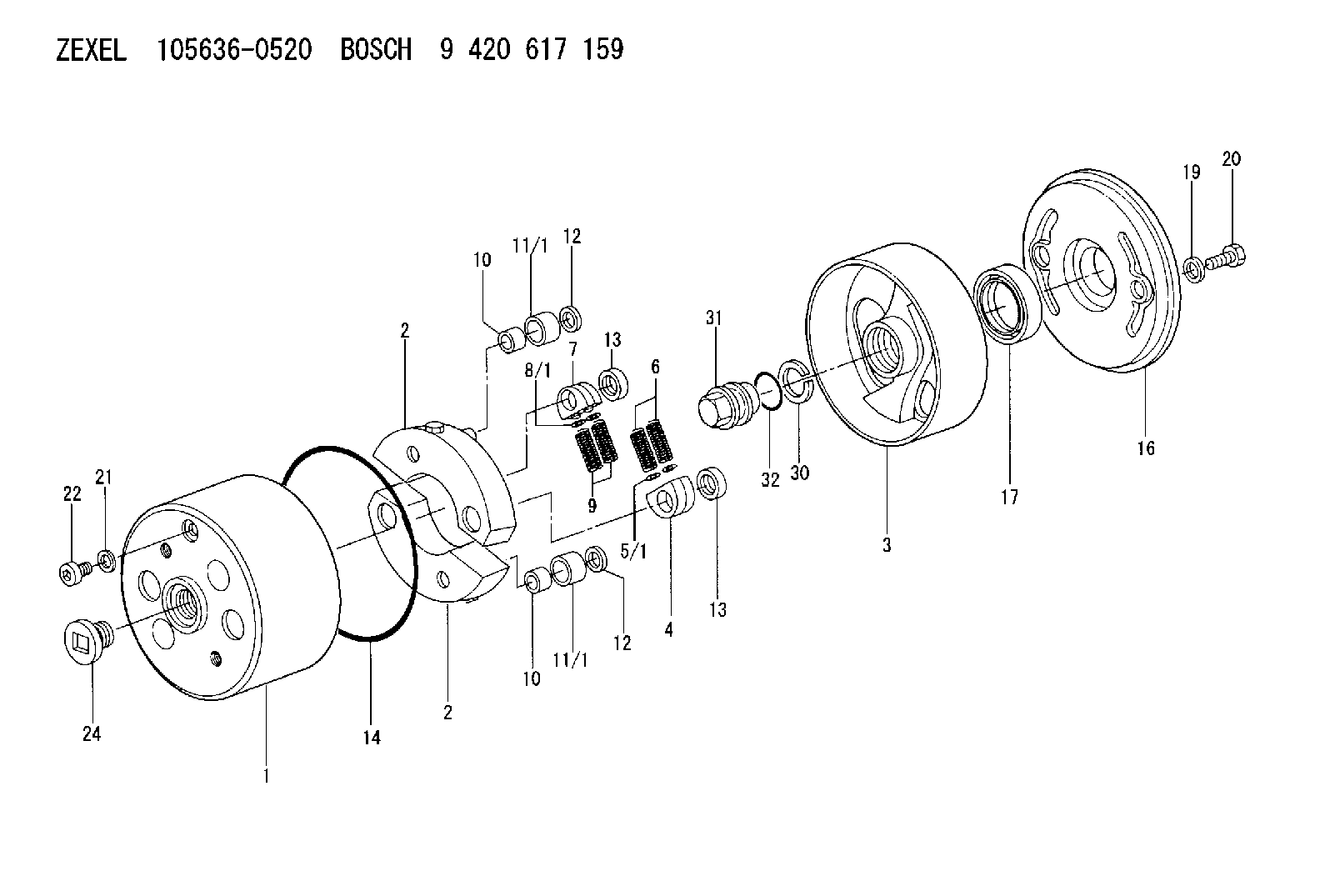

Scheme ###:

1.	[1]	156300-2022	TIMING-DEVICE HOUSING
2.	[2]	156305-0620	FLYWEIGHT
2.	[2]	156305-0620	FLYWEIGHT
3.	[1]	156302-5020	FLANGE BUSHING
4.	[2]	156310-0000	SLOTTED WASHER
5/1.	[0]	029310-8520	SHIM D14&8.4T0.2
5/1.	[0]	029310-8530	SHIM D14&8.4T0.4
5/1.	[0]	029310-8540	SHIM D14&8.4T0.5
5/1.	[0]	029310-8550	SHIM D14&8.4T0.6
5/1.	[0]	029310-8560	SHIM D14&8.4T0.7
5/1.	[0]	029310-8680	SHIM D14&8.4T1.0
5/1.	[0]	139408-0000	SHIM D14&8.4T0.30
5/1.	[0]	139408-0100	SHIM D14&8.4T0.80
5/1.	[0]	139408-0200	SHIM D14&8.4T0.90
5/1.	[0]	139408-0300	SHIM D14&8.4T0.10
5/1.	[0]	139408-0500	SHIM D14&8.4T1.5
5/1.	[0]	139408-0600	SHIM D14&8.4T2.0
6.	[2]	156311-5700	COMPRESSION SPRING
7.	[2]	156310-0000	SLOTTED WASHER
8/1.	[0]	029310-8520	SHIM D14&8.4T0.2
8/1.	[0]	029310-8530	SHIM D14&8.4T0.4
8/1.	[0]	029310-8540	SHIM D14&8.4T0.5
8/1.	[0]	029310-8550	SHIM D14&8.4T0.6
8/1.	[0]	029310-8560	SHIM D14&8.4T0.7
8/1.	[0]	029310-8680	SHIM D14&8.4T1.0
8/1.	[0]	139408-0000	SHIM D14&8.4T0.30
8/1.	[0]	139408-0100	SHIM D14&8.4T0.80
8/1.	[0]	139408-0200	SHIM D14&8.4T0.90
8/1.	[0]	139408-0300	SHIM D14&8.4T0.10
8/1.	[0]	139408-0500	SHIM D14&8.4T1.5
8/1.	[0]	139408-0600	SHIM D14&8.4T2.0
9.	[2]	156311-5700	COMPRESSION SPRING
10.	[2]	156312-0000	BUSHING
10.	[2]	156312-0000	BUSHING
11/1.	[1]	156313-0000	ROLLER D23.9
11/1.	[1]	156313-0100	ROLLER D24.0
11/1.	[1]	156313-0200	ROLLER D24.1
11/1.	[1]	156313-0300	ROLLER D24.2
11/1.	[1]	156313-0300	ROLLER D24.2
12.	[2]	029301-2250	PLAIN WASHER D23&12T3.5
12.	[2]	029301-2250	PLAIN WASHER D23&12T3.5
13.	[2]	156317-0100	RETAINER
13.	[2]	156317-0100	RETAINER
14.	[1]	156315-0200	O-RING
16.	[1]	156308-0600	COVER
17.	[1]	156309-0000	PACKING RING
19.	[2]	156319-0100	GASKET
20.	[2]	156633-4800	BLEEDER SCREW
21.	[1]	029331-0190	GASKET D14&10.2T1
22.	[1]	156316-0000	CAPSULE
24.	[1]	156314-0501	CAP
30.	[1]	029321-8020	LOCKING WASHER
31.	[1]	134325-0300	UNION NUT
32.	[1]	029632-8010	O-RING

Include in #1:

106961-0252 as AUTOM. ADVANCE MECHANIS

106961-0253

Cross reference number

Zexel num

Bosch num

Firm num

Name

105636-0520

9 420 617 159

1685197062 NISSAN-DIESEL

AUTOM. ADVANCE MECHANISM
