105635-0480 ZEXEL 9 420 615 255 BOSCH AUTOM. ADVANCE MECHANISM 9420615255 1056350480 225003810a




Information autom. advance mechanism

BOSCH 9 420 615 255 9420615255
ZEXEL 105635-0480 1056350480
HINO 225003810A 225003810a
105635-0480 AUTOM. ADVANCE MECHANISM
Rating:
14
Buy AUTOM. ADVANCE MECHANISM 105635-0480 zexel genuine, new aftermarket engine parts with delivery

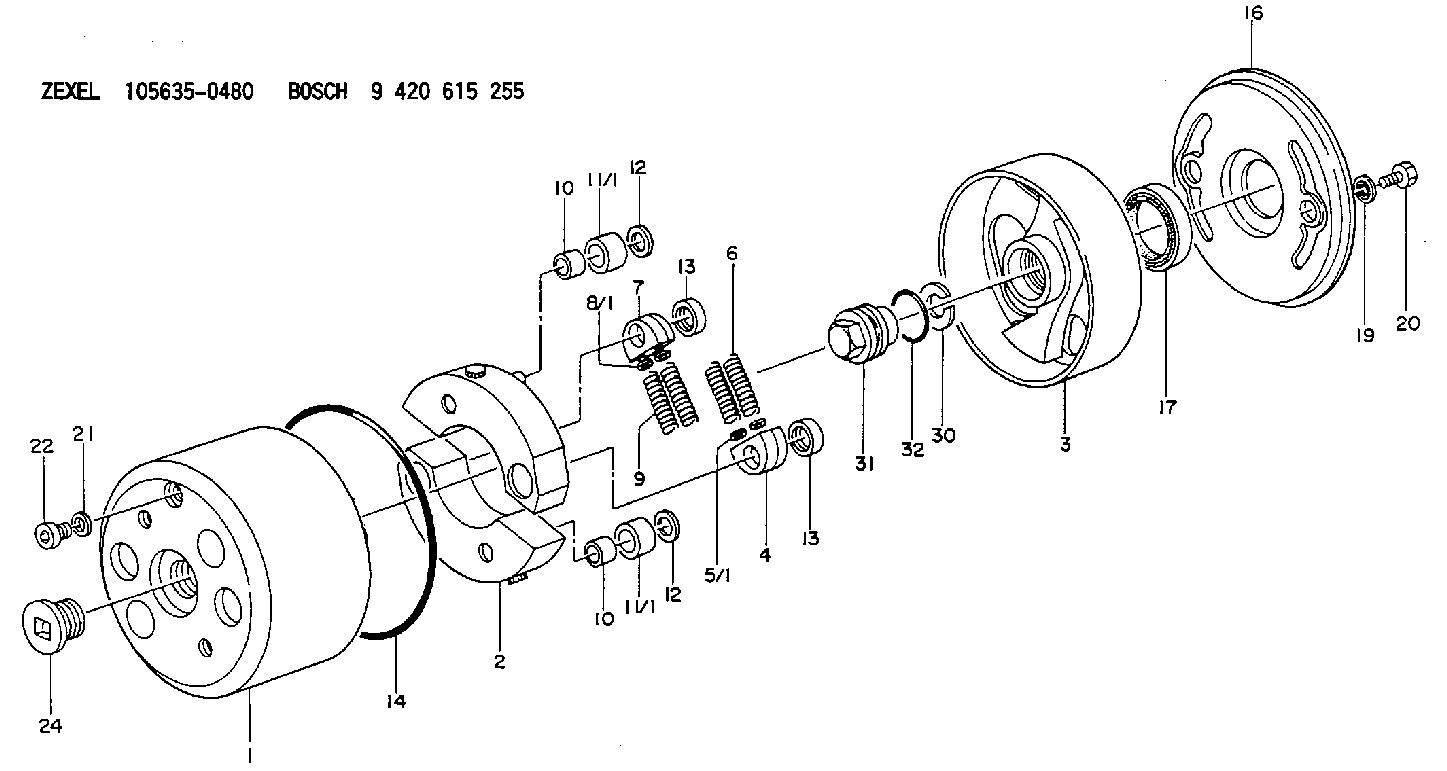

Scheme ###:

1. [1] 156300-4720 TIMING-DEVICE HOUSING
2. [2] 156305-2420 FLYWEIGHT
3. [1] 156323-3120 FLANGE BUSHING
4. [2] 156310-0000 SLOTTED WASHER
5/1. [0] 029310-8520 SHIM D14&8.4T0.2
5/1. [0] 029310-8530 SHIM D14&8.4T0.4
5/1. [0] 029310-8540 SHIM D14&8.4T0.5
5/1. [0] 029310-8550 SHIM D14&8.4T0.6
5/1. [0] 029310-8560 SHIM D14&8.4T0.7
5/1. [0] 029310-8680 SHIM D14&8.4T1.0
5/1. [0] 139408-0000 SHIM D14&8.4T0.30
5/1. [0] 139408-0100 SHIM D14&8.4T0.80
5/1. [0] 139408-0200 SHIM D14&8.4T0.90
5/1. [0] 139408-0300 SHIM D14&8.4T0.10
5/1. [0] 139408-0500 SHIM D14&8.4T1.5
5/1. [0] 139408-0600 SHIM D14&8.4T2.0
6. [2] 156321-0500 COMPRESSION SPRING
7. [2] 156310-0000 SLOTTED WASHER
8/1. [0] 029310-8520 SHIM D14&8.4T0.2
8/1. [0] 029310-8530 SHIM D14&8.4T0.4
8/1. [0] 029310-8540 SHIM D14&8.4T0.5
8/1. [0] 029310-8550 SHIM D14&8.4T0.6
8/1. [0] 029310-8560 SHIM D14&8.4T0.7
8/1. [0] 029310-8680 SHIM D14&8.4T1.0
8/1. [0] 139408-0000 SHIM D14&8.4T0.30
8/1. [0] 139408-0100 SHIM D14&8.4T0.80
8/1. [0] 139408-0200 SHIM D14&8.4T0.90
8/1. [0] 139408-0300 SHIM D14&8.4T0.10
8/1. [0] 139408-0500 SHIM D14&8.4T1.5
8/1. [0] 139408-0600 SHIM D14&8.4T2.0
9. [2] 156321-0500 COMPRESSION SPRING
10. [2] 156312-0000 BUSHING
10. [2] 156312-0000 BUSHING
11/1. [1] 156313-0000 ROLLER D23.9
11/1. [1] 156313-0000 ROLLER D23.9
11/1. [1] 156313-0100 ROLLER D24.0
11/1. [1] 156313-0200 ROLLER D24.1
11/1. [1] 156313-0300 ROLLER D24.2
12. [2] 029301-2250 PLAIN WASHER D23&12T3.5
12. [2] 029301-2250 PLAIN WASHER D23&12T3.5
13. [2] 156317-0100 RETAINER
13. [2] 156317-0100 RETAINER
14. [1] 156315-0200 O-RING
16. [1] 156308-0600 COVER
17. [1] 156309-0000 PACKING RING
19. [2] 156319-0100 GASKET
20. [2] 156633-4800 BLEEDER SCREW
21. [1] 029331-0190 GASKET D14&10.2T1
22. [1] 156316-0000 CAPSULE
24. [1] 156314-0501 CAP
30. [1] 029321-8020 LOCKING WASHER
31. [1] 134325-0300 UNION NUT
32. [1] 029632-8010 O-RING

Include in #1:

106673-3030 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num
Bosch num
Firm num
Name
105635-0480
9 420 615 255
NP-EP/SP700-1150Z4L
225003810A  HINO
AUTOM. ADVANCE MECHANISM
K




Information:


REM02-13
Reman
May 2002 RELOCATION OF SERVICE CENTER FOR 3600 FUEL INJECTORS Announcement Caterpillar is pleased to announce the relocation of the 3600 Fuel Injector Service Center from Booneville, MS to Caterpillar?s Fuel Injector Remanufacturing facility located in Nuevo Laredo, Mexico effective June 01, 2002. This Service Center provides a 3600 Fuel Injector ?Repair and Return? service, principally for dealers in North and South America. This move will in no way effect the excellent service Dealers have come to expect from this program. Injectors in transit to the Boonville, MS facility will be redirected to the Nuevo Laredo facility.Program Dealers can continue to send their 3600 injectors, tagged with Caterpillar? form number 00040279-00 directly to the new address listed below. New forms are being printed with a corrected ship to address. In the interim, Dealers should continue to use the old form. The Dealer will continue to be responsible for freight and insurance to and from the Service Center. The Center will, as in the past, service the injectors and return them, along with an individual certificate of conformity, to wherever the dealer requires. A database with key information on each injector will continue be maintained at the Service Center.The injectors will receive an initial inspection within five days of receipt. Normal turnaround time for the repaired injectors will be 20 ? 30 days. However, should the injectors be required urgently, this can be specified as a special instruction on the shipping tag and accommodated with a premium charge. Special return shipping instructions, such as airfreight, should also be communicated on the shipping tag. If not specified, the repaired injectors will be returned via standard surface freight to the dealer?s main office address.Shipping Location
Caterpillar Inc.
C/O Tecmosa/Dicex International
1101 Black Diamond
International Commerce Center
Laredo, TX 78045
Attn: 3600 Injector Service Center
The new Service Center Customer Service telephone number is: 1877-536-5460.
Features And BenefitsThe service provided will be a ?repair and return? service of the customer?s serialized injector, as opposed to a Reman exchange for a customer?s core. The customer will get his own injector back. It will have been completely disassembled with each component inspected, and after re-assembly, 100% tested against new specifications. A technical report will be completed and returned with each injector to help the dealer analyze any fuel system related problems, which if corrected could possibly help extend the life of the injectors.This service does not replace the remanufactured injector program. It complements it as another repair option offered at a price comparable to the competition. The dealer may choose to have the injectors cleaned or repaired. Or, depending on the need, a remanufactured injector can still be purchased. In this case the Service Center will notify the dealer and transfer the core to Reman, establishing a core credit for the dealer. This Service Center will provide one more way to lower the customer?s owning and operating expenses.Price A flat labor charge of $200 US plus any new components replaced will be
