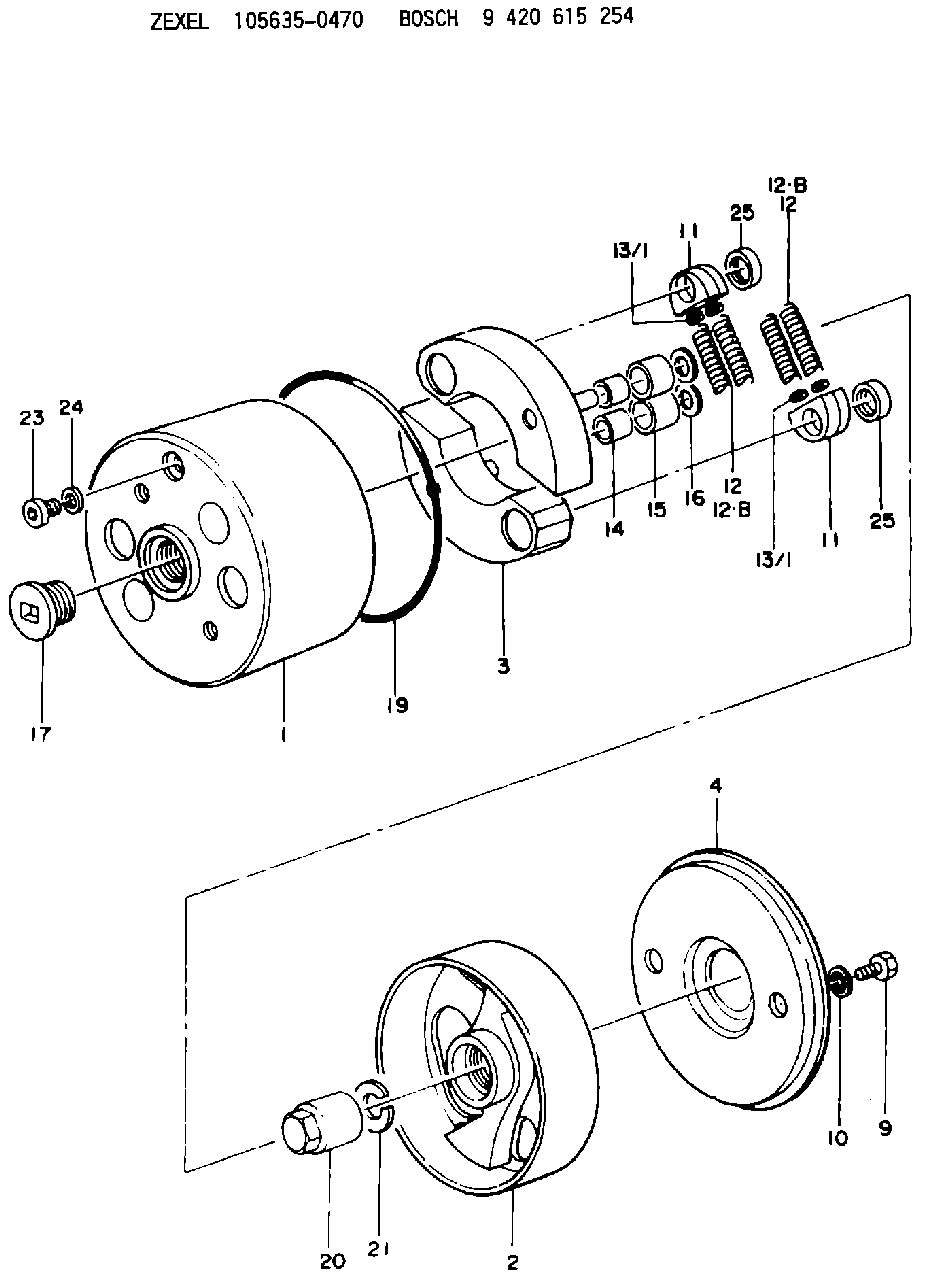

105635-0470 ZEXEL 9 420 615 254 BOSCH AUTOM. ADVANCE MECHANISM 9420615254 1056350470 225003900a

Features and Benefits
Reman short blocks expand the repair options available. When used with other
remanufactured products and reusable components from the core engine, short blocks help
lower dealer repair/rebuild cost and shorten turnaround time.
The 3500B short block is a fully assembled cylinder block with sequence valves, crankshaft,
cylinder pack groups, piston jets, camshaft bearings, and lifting eyes.
The short block does not include camshaft, cam access covers, or block side covers. The
short block may contain a remanufactured cylinder block, crankshaft, connecting rods, and
pistons. The cylinder liners, piston rings, camshaft bearings, and crankshaft bearings are
100% new components. The remanufactured components are remanufactured to factory
specifications using factory precision machine tools and proven processes.
Core Acceptance
Short blocks from 3500B diesel series machine and commercial engines that were built with
101-0829 Piston ? Rod Gp. are acceptable as core. Reference SELD0026 for the latest Short
Block Core Acceptance Criteria.
Core Management
Please refer to the Caterpillar Core Management Information System (CMIS 2) Parts
Information application describing all reman part/CAF and related information. Also refer to
other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes,
Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry,
CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to
properly manage core returns and monitor inspection performance. This information will be
available to all dealers worldwide after your CMIS 2 conversion date. In the meantime,
please continue to use the current CMIS Entitlement Parts Inquiry Screen describing the list
of parts in a Core Acceptability Family (CAF) and related part number detail.
For the latest updates of Reman Policies and Core Management (SELD0122), Core
Management Systems & Operations Procedures (SELD0040), and Shipping Instructions
(SELD0039), go to the Reman website and click on Procedures and Policies (listed under
Reman Program Information).
Please note that 3500B short block core will be shipped to Lafayette address:
Caterpillar Inc.
3701 State Road 26 East
Lafayette, Indiana, 47905
U.S.A.
See "SHIPPING INSTRUCTIONS" (SELD0039) for more information.
If you have any questions regarding core return processing, feel free to call Corinth toll free
at (800) 537-2928. For assistance with technical questions, call the Peoria Reman
Customer Satisfaction Hot Line also toll free at (888) 88-REMAN or use our E-mail
address--Reman_Help.
James E. Reynolds
Dept: 3500 Reman Engines
Location: 88-B21L
Phone: 765-448-2295
Fax: 765-448-5897
