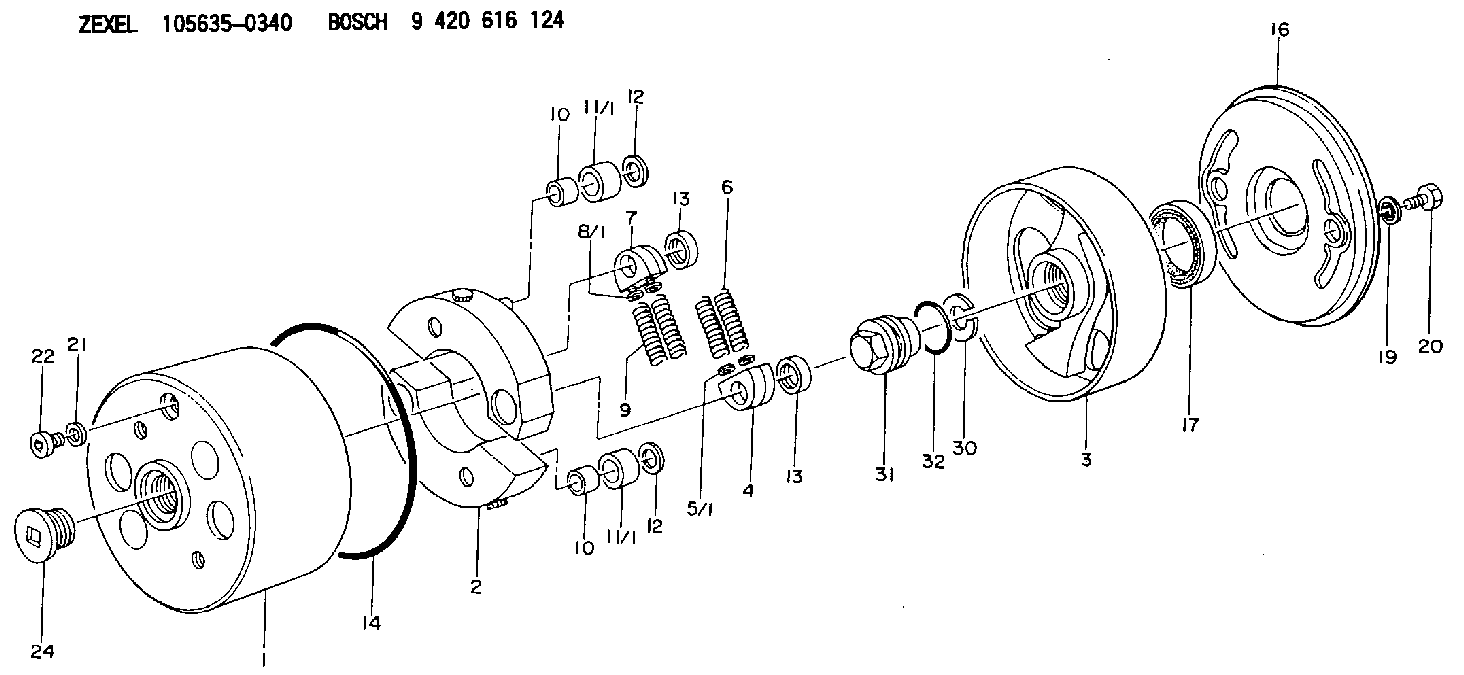

105635-0340 ZEXEL 9 420 616 124 BOSCH AUTOM. ADVANCE MECHANISM 9420616124 1056350340

Tachometer Error...To check, connect a tachometer of known accuracy to the engine. Run the engine and make a comparison of the readings of the vehicle and test tachometers. If vehicle tachometer is defective, make repairs as necessary or install a new tachometer.Engine Operated at High Altitude...Less oxygen at higher altitudes causes the engine horsepower to go down approximately three percent for each 1000 ft. above sea level. *Brakes Do Not Completely Release... Check the brakes by feeling all the brake drums. If the brakes do not completely release, the brake drum for that wheel will be hotter than the brake drums for the other wheels. With the truck jacked up the wheels must rotate freely when turned by hand.Vehicle Operated in Too High a Gear... If the operator does not shift the truck correctly or operates the truck in a "lug" condition (using the truck in too high a gear for engine rpm to go up as accelerator pedal is pushed farther down, or using the truck in a gear where engine rpm goes down with accelerator pedal at maximum travel), poor vehicle performance is the result. For best engine performance do not lug the engine more than 600 rpm below its full load speed.Extra Engine Driven Equipment...Air compressors, hydraulic pumps, generators, and other engine driven equipment that has damage, or that was not installed correctly, or that is not in correct adjustment, can take more horsepower to drive than expected. If necessary, disconnect the equipment and test the engine.Speedometer Error...A damaged speedometer does not give the correct speed or the correct indication of fuel consumption. An indication of low speed can cause the operator to feel that he has a power problem.Speeds Too High...The need for more horsepower is easy to see as the speed of the vehicle is increased. This is especially true if the front of the vehicle has a large surface area. Your authorized dealer can give you the horsepower needs for a vehicle, and the horsepower necessary for different vehicle designs at different speeds.Overload on Vehicle *High Moving Resistance...Soft ground conditions cause a need for more horsepower. To see if the problem is the engine, test the vehicle on a surface known to be good, or test on a chassis dynamometer.High Wind Resistance...The horsepower needs for a truck can be divided into two parts. Part of the horsepower is used to move the vehicle and part is used to get through wind resistance. The horsepower necessary to get through the wind resistance will increase as the vehicle is used at higher speeds. Vehicles with a large front area have a higher wind resistance and take more horsepower than those with a small front area. Some types of trucks, for example those used for the transportation of automobiles and/or boats have high wind resistance even if the front area is small. Moving against the wind has the same effect on wind resistance as does higher vehicle speed.Power Loss in Drive Gears...It is possible for
