105634-0120 ZEXEL 9 420 615 753 BOSCH AUTOM. ADVANCE MECHANISM 9420615753 1056340120 12862054550




Information autom. advance mechanism

BOSCH 9 420 615 753 9420615753
ZEXEL 105634-0120 1056340120
KUBOTA 12862054550 12862054550
105634-0120 AUTOM. ADVANCE MECHANISM
Rating:
18
Buy AUTOM. ADVANCE MECHANISM 105634-0120 zexel genuine, new aftermarket engine parts with delivery

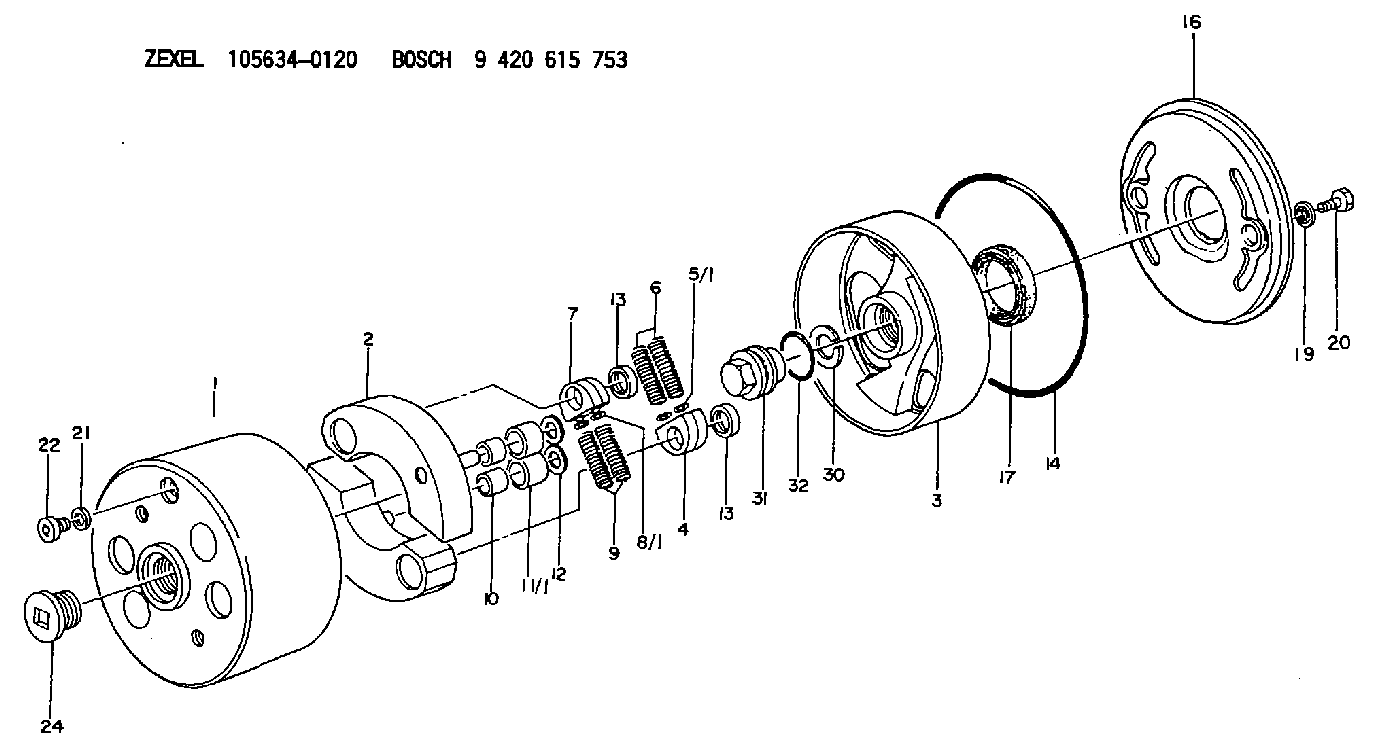

Scheme ###:

1. [1] 156300-2022 TIMING-DEVICE HOUSING
2. [2] 156305-1320 FLYWEIGHT
3. [1] 156302-7120 FLANGE BUSHING
4. [2] 156310-0000 SLOTTED WASHER
5/1. [0] 029310-8520 SHIM D14&8.4T0.2
5/1. [0] 029310-8530 SHIM D14&8.4T0.4
5/1. [0] 029310-8540 SHIM D14&8.4T0.5
5/1. [0] 029310-8550 SHIM D14&8.4T0.6
5/1. [0] 029310-8560 SHIM D14&8.4T0.7
5/1. [0] 029310-8680 SHIM D14&8.4T1.0
5/1. [0] 139408-0000 SHIM D14&8.4T0.30
5/1. [0] 139408-0100 SHIM D14&8.4T0.80
5/1. [0] 139408-0200 SHIM D14&8.4T0.90
5/1. [0] 139408-0300 SHIM D14&8.4T0.10
5/1. [0] 139408-0500 SHIM D14&8.4T1.5
5/1. [0] 139408-0600 SHIM D14&8.4T2.0
6. [2] 156311-6500 COMPRESSION SPRING
7. [2] 156310-0000 SLOTTED WASHER
8/1. [0] 029310-8520 SHIM D14&8.4T0.2
8/1. [0] 029310-8530 SHIM D14&8.4T0.4
8/1. [0] 029310-8540 SHIM D14&8.4T0.5
8/1. [0] 029310-8550 SHIM D14&8.4T0.6
8/1. [0] 029310-8560 SHIM D14&8.4T0.7
8/1. [0] 029310-8680 SHIM D14&8.4T1.0
8/1. [0] 139408-0000 SHIM D14&8.4T0.30
8/1. [0] 139408-0100 SHIM D14&8.4T0.80
8/1. [0] 139408-0200 SHIM D14&8.4T0.90
8/1. [0] 139408-0300 SHIM D14&8.4T0.10
8/1. [0] 139408-0500 SHIM D14&8.4T1.5
8/1. [0] 139408-0600 SHIM D14&8.4T2.0
9. [2] 156311-6500 COMPRESSION SPRING
10. [2] 156312-0000 BUSHING
11/1. [1] 156313-0000 ROLLER D23.9
11/1. [1] 156313-0100 ROLLER D24.0
11/1. [1] 156313-0200 ROLLER D24.1
11/1. [1] 156313-0300 ROLLER D24.2
12. [2] 029301-2250 PLAIN WASHER D23&12T3.5
13. [2] 156317-0100 RETAINER
13. [2] 156317-0100 RETAINER
14. [1] 156315-0200 O-RING
16. [1] 156308-0600 COVER
17. [1] 156309-0000 PACKING RING
19. [2] 156319-0100 GASKET
20. [2] 156633-4800 BLEEDER SCREW
21. [1] 029331-0190 GASKET D14&10.2T1
22. [1] 156316-0000 CAPSULE
24. [1] 156314-0501 CAP
30. [1] 029321-4030 LOCKING WASHER
31. [1] 134325-0500 UNION NUT
32. [1] 029632-4060 O-RING

Include in #1:

101601-9172 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num
Bosch num
Firm num
Name
105634-0120
9 420 615 753
NP-EP/SP500-1100B3.5RN66
12862054550  KUBOTA
AUTOM. ADVANCE MECHANISM
K 14KD AUTOMATIC TIMER TIMER SP(Z) TIMER
