105634-0071 ZEXEL 9 420 616 792 BOSCH AUTOM. ADVANCE MECHANISM 9420616792 1056340071 225001201a

Information autom. advance mechanism

BOSCH 9 420 616 792 9420616792

ZEXEL 105634-0071 1056340071

HINO 225001201A 225001201a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105634-0071 zexel genuine, new aftermarket engine parts with delivery

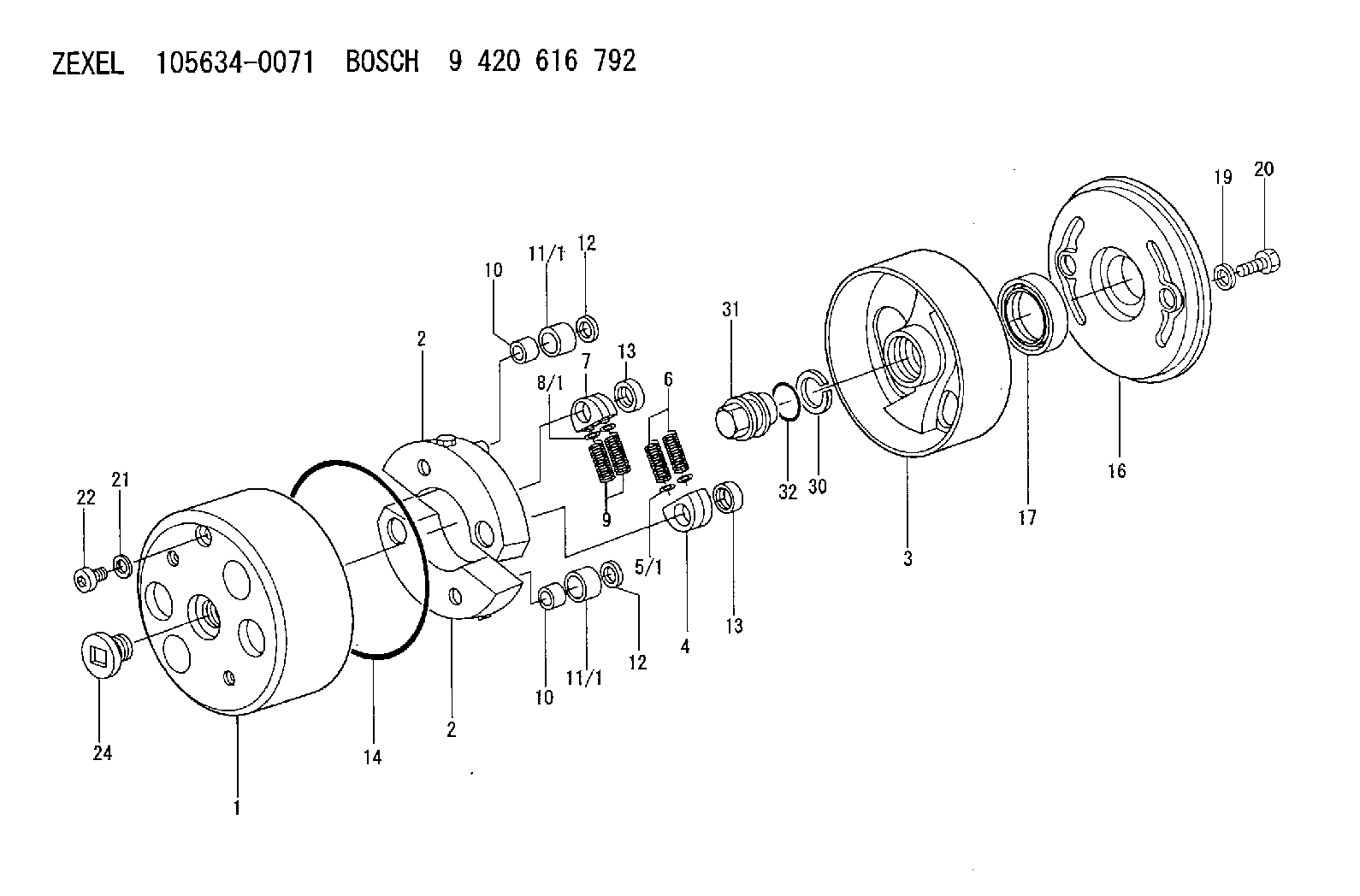

Scheme ###:

1.	[1]	156300-1822	TIMING-DEVICE HOUSING
2.	[2]	156305-0320	FLYWEIGHT
2.	[2]	156305-0320	FLYWEIGHT
3.	[1]	156302-4220	FLANGE BUSHING
4.	[2]	156310-0000	SLOTTED WASHER
5/1.	[0]	029310-8520	SHIM D14&8.4T0.2
5/1.	[0]	029310-8530	SHIM D14&8.4T0.4
5/1.	[0]	029310-8540	SHIM D14&8.4T0.5
5/1.	[0]	029310-8550	SHIM D14&8.4T0.6
5/1.	[0]	029310-8560	SHIM D14&8.4T0.7
5/1.	[0]	029310-8680	SHIM D14&8.4T1.0
5/1.	[0]	139408-0000	SHIM D14&8.4T0.30
5/1.	[0]	139408-0100	SHIM D14&8.4T0.80
5/1.	[0]	139408-0200	SHIM D14&8.4T0.90
5/1.	[0]	139408-0300	SHIM D14&8.4T0.10
5/1.	[0]	139408-0500	SHIM D14&8.4T1.5
5/1.	[0]	139408-0600	SHIM D14&8.4T2.0
6.	[2]	156311-5600	COMPRESSION SPRING
7.	[2]	156310-0000	SLOTTED WASHER
8/1.	[0]	029310-8520	SHIM D14&8.4T0.2
8/1.	[0]	029310-8530	SHIM D14&8.4T0.4
8/1.	[0]	029310-8540	SHIM D14&8.4T0.5
8/1.	[0]	029310-8550	SHIM D14&8.4T0.6
8/1.	[0]	029310-8560	SHIM D14&8.4T0.7
8/1.	[0]	029310-8680	SHIM D14&8.4T1.0
8/1.	[0]	139408-0000	SHIM D14&8.4T0.30
8/1.	[0]	139408-0100	SHIM D14&8.4T0.80
8/1.	[0]	139408-0200	SHIM D14&8.4T0.90
8/1.	[0]	139408-0300	SHIM D14&8.4T0.10
8/1.	[0]	139408-0500	SHIM D14&8.4T1.5
8/1.	[0]	139408-0600	SHIM D14&8.4T2.0
9.	[2]	156311-5600	COMPRESSION SPRING
10.	[2]	156312-0000	BUSHING
10.	[2]	156312-0000	BUSHING
11/1.	[1]	156313-0000	ROLLER D23.9
11/1.	[1]	156313-0000	ROLLER D23.9
11/1.	[1]	156313-0100	ROLLER D24.0
11/1.	[1]	156313-0200	ROLLER D24.1
11/1.	[1]	156313-0300	ROLLER D24.2
12.	[2]	029301-2250	PLAIN WASHER D23&12T3.5
12.	[2]	029301-2250	PLAIN WASHER D23&12T3.5
13.	[2]	156317-0100	RETAINER
13.	[2]	156317-0100	RETAINER
14.	[1]	156315-0200	O-RING
16.	[1]	156308-0600	COVER
17.	[1]	156309-0000	PACKING RING
19.	[2]	156319-0100	GASKET
20.	[2]	156633-4800	BLEEDER SCREW
21.	[1]	029331-0190	GASKET D14&10.2T1
22.	[1]	156316-0000	CAPSULE
24.	[1]	156314-0301	CAP
30.	[1]	029321-4030	LOCKING WASHER
31.	[1]	134325-0500	UNION NUT
32.	[1]	029632-4060	O-RING

Include in #1:

101601-2622 as AUTOM. ADVANCE MECHANIS

101601-2771

101601-5340

Cross reference number

Zexel num

Bosch num

Firm num

Name

105634-0071

9 420 616 792
NP-EP/SP1150-1400B3.5RN9

225001201A HINO

AUTOM. ADVANCE MECHANISM
* K

Information:

Introduction
The valve housing may crack causing certain remanufactured fuel injectors to malfunction.Problem
Some remanufactured valve bodies on fuel injectors have been cracking under high pressure. This crack in the valve body can cause fuel to get into the engine oil.Solution
All 10R-0957 Injector Gp Fuel with serial number range 848368 to 850132 should be removed from the parts stock. 10R-0960 Injector Gp Fuel , 10R-0961 Injector Gp Fuel , 10R-0963 Injector Gp Fuel , and 10R-1268 Injector Gp Fuel with a serial number range from 188029 to 188914 should be removed from the parts stock. The above listed fuel injectors should be removed from the parts stock and the injectors should be held pending further instructions.
