Information autom. advance mechanism
BOSCH
9 420 615 493
9420615493
ZEXEL
105622-1740
1056221740
NISSAN-DIESEL
1681090019
1681090019
Rating:

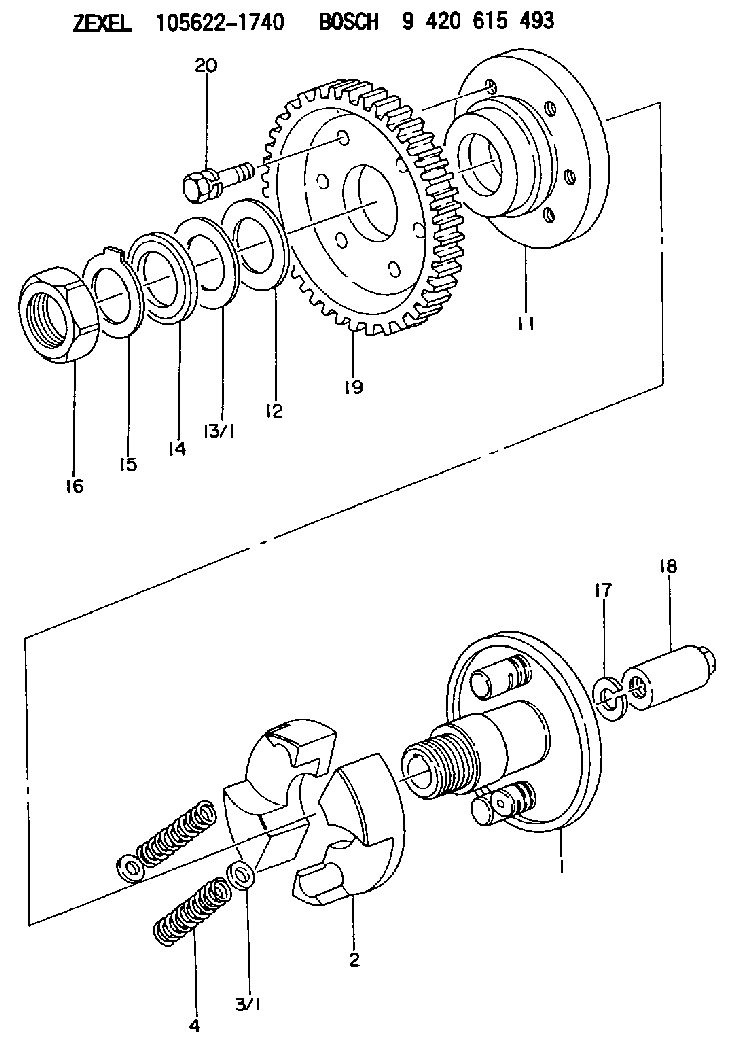

Scheme ###:
| 1. | [1] | 156206-2520 | FLYWEIGHT ASSEMBLY |
| 2. | [2] | 156205-8800 | FLYWEIGHT |
| 3/1. | [0] | 029310-7010 | SHIM D14.5&7T0.1 |
| 3/1. | [0] | 029310-7020 | SHIM D14.5&7T0.3 |
| 3/1. | [0] | 029310-7030 | SHIM D14.5&7T0.5 |
| 3/1. | [0] | 029310-7040 | SHIM D14.5&7T0.2 |
| 3/1. | [0] | 029310-7050 | SHIM D14.5&7T0.6 |
| 3/1. | [0] | 029310-7060 | SHIM D14.5&7T1.0 |
| 3/1. | [0] | 139440-0600 | SHIM D14.5&7.0T0.40 |
| 3/1. | [0] | 139440-0700 | SHIM D14.5&7.0T0.70 |
| 3/1. | [0] | 139440-0800 | SHIM D14.5&7.0T0.80 |
| 3/1. | [0] | 139440-0900 | SHIM D14.5&7.0T0.90 |
| 4. | [2] | 156203-9400 | COMPRESSION SPRING |
| 11. | [1] | 156201-2520 | FLANGE BUSHING |
| 12. | [1] | 156209-0400 | PLAIN WASHER |
| 13/1. | [0] | 156215-0000 | SHIM D38&31.5T0.12 |
| 13/1. | [0] | 156215-0100 | SHIM D38&31.5T0.14 |
| 13/1. | [0] | 156215-0200 | SHIM D38&31.5T0.16 |
| 13/1. | [0] | 156215-0300 | SHIM D38&31.5T0.18 |
| 13/1. | [0] | 156215-0400 | SHIM D38&31.5T0.5 |
| 13/1. | [0] | 156215-0500 | SHIM D38&31.5T0.2 |
| 13/1. | [0] | 156215-0600 | SHIM D38&31.5T0.3 |
| 13/1. | [0] | 156215-0700 | SHIM D38&31.5T0.1 |
| 13/1. | [0] | 156215-0800 | SHIM D38&31.5T0.25 |
| 13/1. | [0] | 156215-0900 | SHIM D38&31.5T0.4 |
| 14. | [1] | 156214-0000 | PLAIN WASHER |
| 15. | [1] | 156210-0100 | LOCKING LEVER |
| 16. | [1] | 029202-8010 | UNION NUT |
| 17. | [1] | 023641-2410 | LOCKING WASHER |
| 18. | [1] | 131325-0500 | UNION NUT |
| 19. | [1] | 156221-5400 | TOOTHED GEAR |
| 20. | [6] | 139006-5600 | BLEEDER SCREW |
Include in #1:
101491-9870
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105622-1740
1681090019 NISSAN-DIESEL
AUTOM. ADVANCE MECHANISM
K 14KA AUTOMATIC TIMER TIMER SCD TIMER
K 14KA AUTOMATIC TIMER TIMER SCD TIMER
