105614-4450 ZEXEL 9 420 616 131 BOSCH AUTOM. ADVANCE MECHANISM 9420616131 1056144450

Information autom. advance mechanism

BOSCH 9 420 616 131 9420616131

ZEXEL 105614-4450 1056144450

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105614-4450 zexel genuine, new aftermarket engine parts with delivery

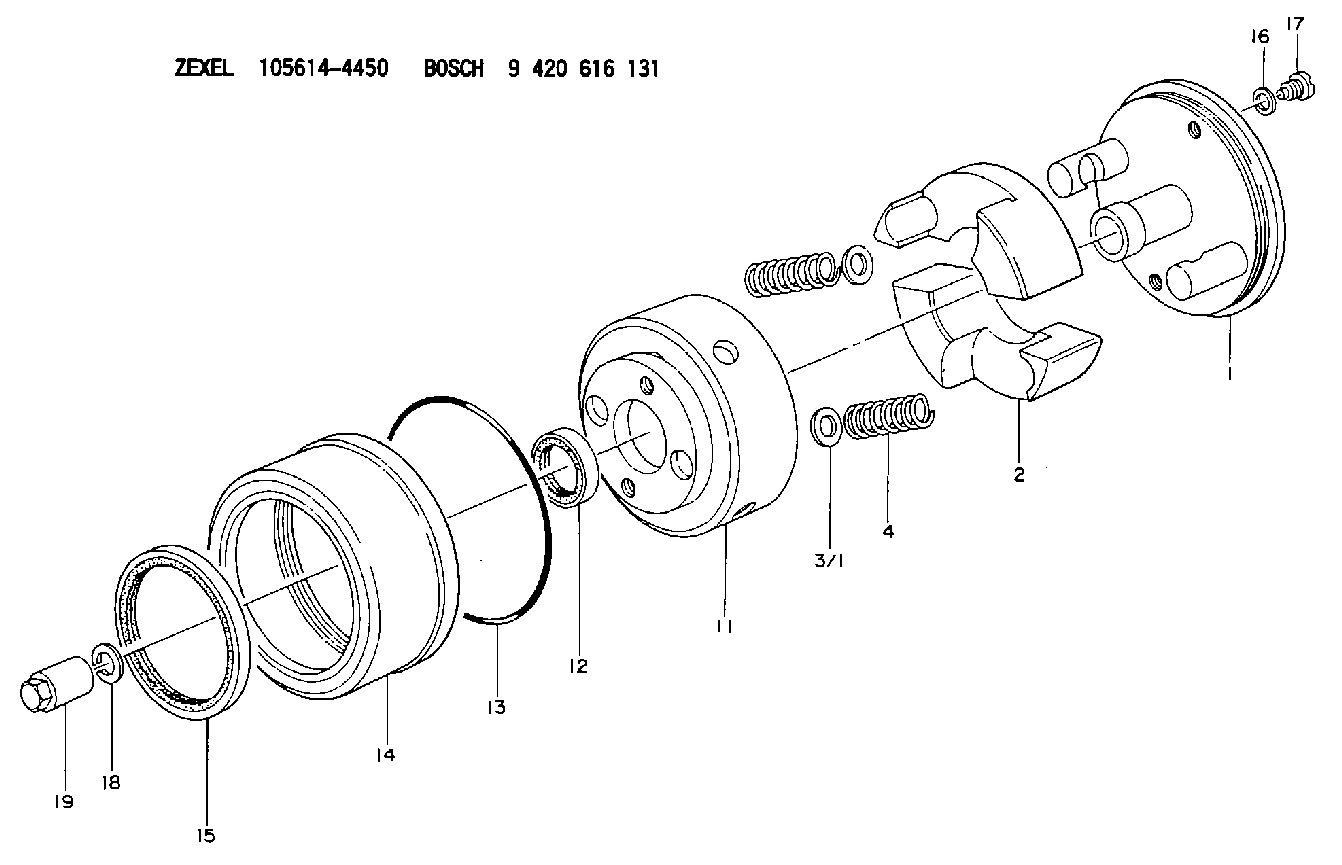

Scheme ###:

1.	[1]	156132-9220	FLYWEIGHT ASSEMBLY
2.	[2]	156108-6000	FLYWEIGHT
3/1.	[0]	029310-9010	SHIM D19.6&9T0.5
3/1.	[0]	029310-9020	SHIM D19.6&9T1
3/1.	[0]	029310-9030	SHIM D19.6&9T0.1
3/1.	[0]	029310-9040	SHIM D19.6&9T0.2
3/1.	[0]	029310-9050	PLAIN WASHER D19.6&9T1.5
3/1.	[0]	139409-0000	SHIM D19.6&9.0T0.15
4.	[2]	156125-5800	COMPRESSION SPRING
11.	[1]	156131-1820	FLANGE BUSHING
12.	[1]	029622-8010	PACKING RING
13.	[1]	156117-0100	O-RING
14.	[1]	156114-1500	CASE
15.	[1]	156116-2220	PACKING RING
16.	[2]	026508-1240	GASKET D11.9&8.2T1
17.	[2]	156115-0100	CAPSULE
18.	[1]	029321-4010	LOCKING WASHER
19.	[1]	131325-0400	UNION NUT

Include in #1:

101606-9290 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num

Bosch num

Firm num

Name

105614-4450

9 420 616 131
NP-EP/SA900-1150B4.5R

AUTOM. ADVANCE MECHANISM
K 14KC AUTOMATIC TIMER TIMER SA TIMER

Information:

Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 2*******
0-3000 hrs,
0-24 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
3001-6000 hrs,
25-30 mo 33.0% 50.0% 0.0% 0.0% 50.0% 50.0%
This is a 8.0-hour job for Group 2
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 3*******
0-3000 hrs,
0-24 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
3001-6000 hrs,
25-30 mo 33.0% 50.0% 0.0% 0.0% 50.0% 50.0%
This is a 8.0-hour job for Group 3
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 4*******
0-3000 hrs,
0-24 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 8.0-hour job for Group 4
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
