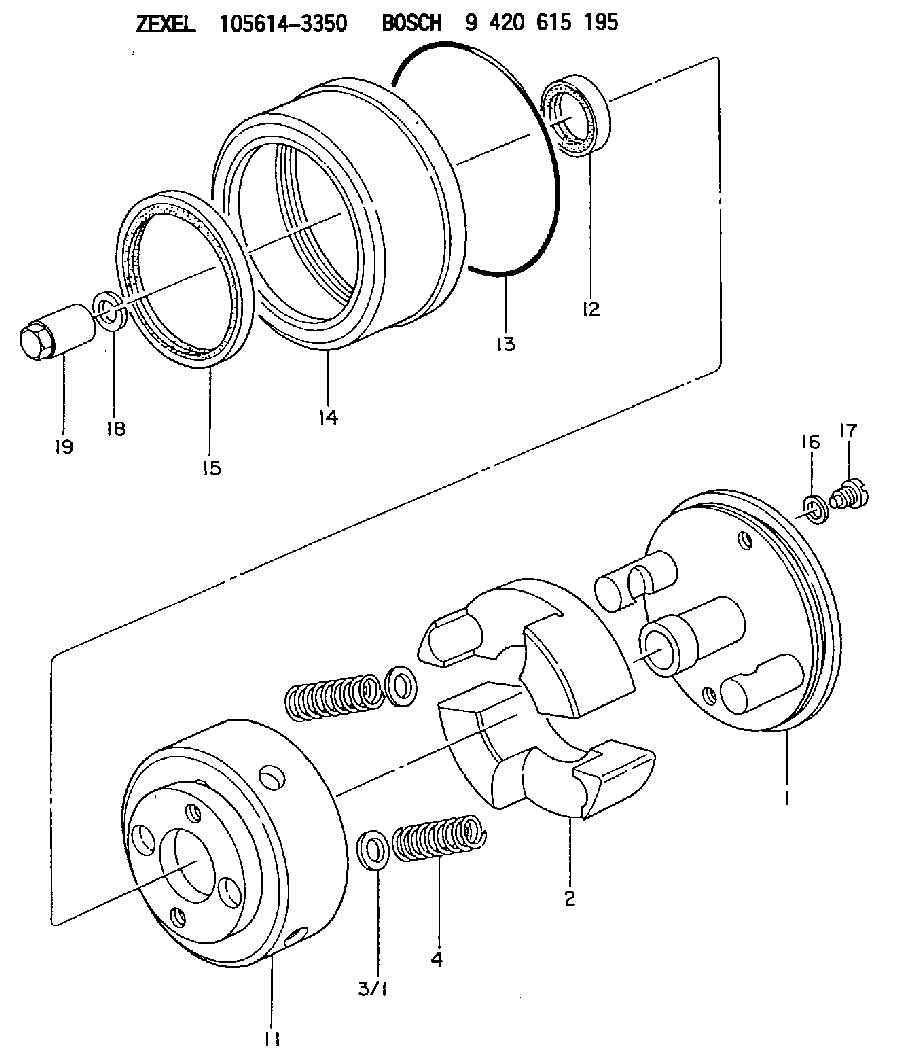

105614-3350 ZEXEL 9 420 615 195 BOSCH AUTOM. ADVANCE MECHANISM 9420615195 1056143350 1685195019

Cylinder Heads Without Guides Cylinder Heads With Guides New cylinder heads have been introduced on the 4.236 engine. The new heads have replaceable valve guides. The differences between the earlier and current heads are explained below. The change became effective at engine number LD---U040236M and up. See General Information in Systems Operation for the engine serial number location.Double valve springs:(1) Outer spring: Length under test force ... 45.22 mm (1.780 in)Test force ... 178 9 N (40 2 lb)(Damper coils of spring go toward cylinder head).(2) Inner spring: Length under test force ... 39.70 mm (1.563 in)Test force ... 69 4 N (15.4 1 lb)(Damper coils of spring go toward cylinder head).Single valve springs (not shown). Length under test force ... 41.4 mm (1.63 in)Test force ... 251 13 N (56.4 3 lb)(No damper coils).Cylinder Heads Without Removable Guides
(3) Exhaust valve stem diameter ... 9.449 to 9.469 mm (0.372 to 0.3728 in) Valves are available in stem oversizes of 0.08, 0.38 and 0.76 mm (0.003, .015 and .030 in).Exhaust valve overall length ... 123.11 to 123.52 mm (4.847 to 4.863 in)Bore in cylinder head for valve ... 9.506 to 9.531 mm (0.3743 to 0.3752 in)Clearance between valve stem and bore ... 0.0368 to 0.0826 mm (0.00145 to 0.00325 in)Maximum permissible clearance between valve stem and bore ... 0.15 mm (0.006 in)(4) Intake valve stem diameter ... 9.462 to 9.487 mm (0.3725 to 0.3735 in) Valves are available in stem oversizes of 0.08, 0.38, and 0.76 mm (0.003, .015 and .030 in).Intake valve overall length ... 122.71 to 123.11 mm (4.831 to 4.847 in)Bore in cylinder head for valve ... 9.506 to 9.531 mm (0.3743 to 0.3752 in)Clearance between valve stem and bore ... 0.0191 to 0.0699 mm (0.00075 to 0.00275 in)Maximum permissible clearance between valve stem and bore ... 0.13 mm (0.005 in)Cylinder Heads With Removable Guides
(5) Valve guides: Inside diameter ... 9.53 to 9.55 mm (0.375 to 0.376 in)Outside diameter ... 15.900 to 15.913 mm (0.6260 to 0.6265 in)Parent bore diameter in cylinder head for valve guide ... 15.875 to 15.888 mm (0.6250 to 0.6255 in)Interference fit of guide in cylinder head ... 0.005 to 0.046 mm (0.0002 to 0.0018 in)Overall length of guide:Intake ... 57.94 mm (2.281 in)Exhaust ... 61.913 mm (2.4375 in)Projection of guide above valve spring recess ... 15.09 mm (0.594 in)(6) Exhaust valve stem diameter ... 9.449 to 9.468 mm (0.3720 to 0.3728 in) Clearance of valve in guide ... 0.058 to 0.102 mm (0.0023 to 0.0040 in)Maximum
