Information autom. advance mechanism
BOSCH
9 420 615 098
9420615098
ZEXEL
105614-3321
1056143321
NISSAN-DIESEL
16810Z5566
16810z5566
Rating:
Scheme ###:

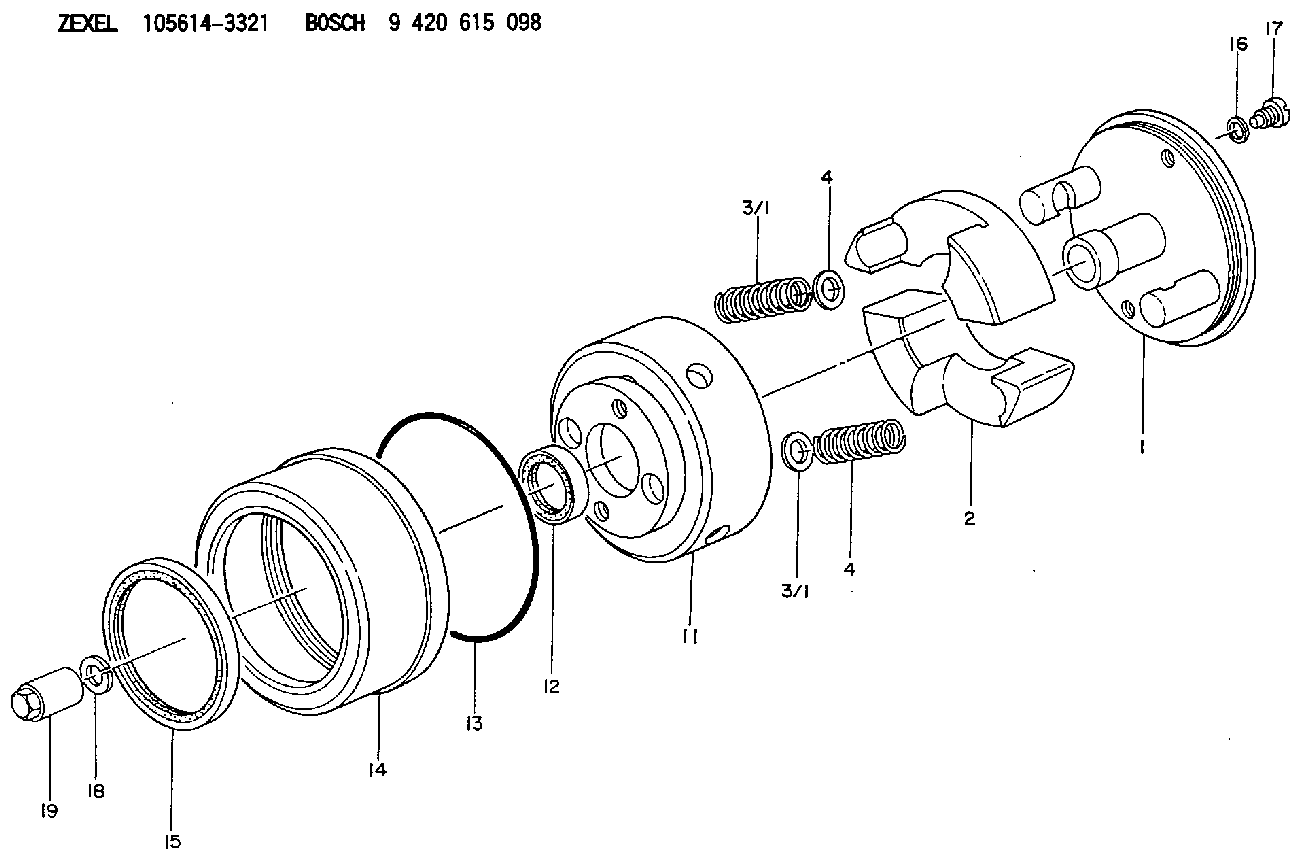

| 1. | [1] | 156132-9020 | FLYWEIGHT ASSEMBLY |
| 2. | [2] | 156108-5900 | FLYWEIGHT |
| 3/1. | [0] | 029310-9010 | SHIM D19.6&9T0.5 |
| 3/1. | [0] | 029310-9020 | SHIM D19.6&9T1 |
| 3/1. | [0] | 029310-9030 | SHIM D19.6&9T0.1 |
| 3/1. | [0] | 029310-9040 | SHIM D19.6&9T0.2 |
| 3/1. | [0] | 029310-9050 | PLAIN WASHER D19.6&9T1.5 |
| 3/1. | [0] | 139409-0000 | SHIM D19.6&9.0T0.15 |
| 3/1. | [0] | 139409-0000 | SHIM D19.6&9.0T0.15 |
| 4. | [2] | 156125-0300 | COMPRESSION SPRING |
| 4. | [2] | 156125-0300 | COMPRESSION SPRING |
| 11. | [1] | 156130-9420 | FLANGE BUSHING |
| 12. | [1] | 029622-8050 | PACKING RING |
| 13. | [1] | 156117-0500 | O-RING |
| 14. | [1] | 156114-1400 | CASE |
| 15. | [1] | 156116-2220 | PACKING RING |
| 16. | [2] | 026508-1240 | GASKET D11.9&8.2T1 |
| 17. | [2] | 156115-0100 | CAPSULE |
| 18. | [1] | 029321-4010 | LOCKING WASHER |
| 19. | [1] | 131325-0400 | UNION NUT |
Include in #1:
101691-9644
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105614-3321
16810Z5566 NISSAN-DIESEL
AUTOM. ADVANCE MECHANISM
K 14KC AUTOMATIC TIMER TIMER SA TIMER
K 14KC AUTOMATIC TIMER TIMER SA TIMER
