105612-2050 ZEXEL 9 420 616 357 BOSCH AUTOM. ADVANCE MECHANISM 9420616357 1056122050 225001310a

Information autom. advance mechanism

BOSCH 9 420 616 357 9420616357

ZEXEL 105612-2050 1056122050

HINO 225001310A 225001310a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTOM. ADVANCE MECHANISM 105612-2050 zexel genuine, new aftermarket engine parts with delivery

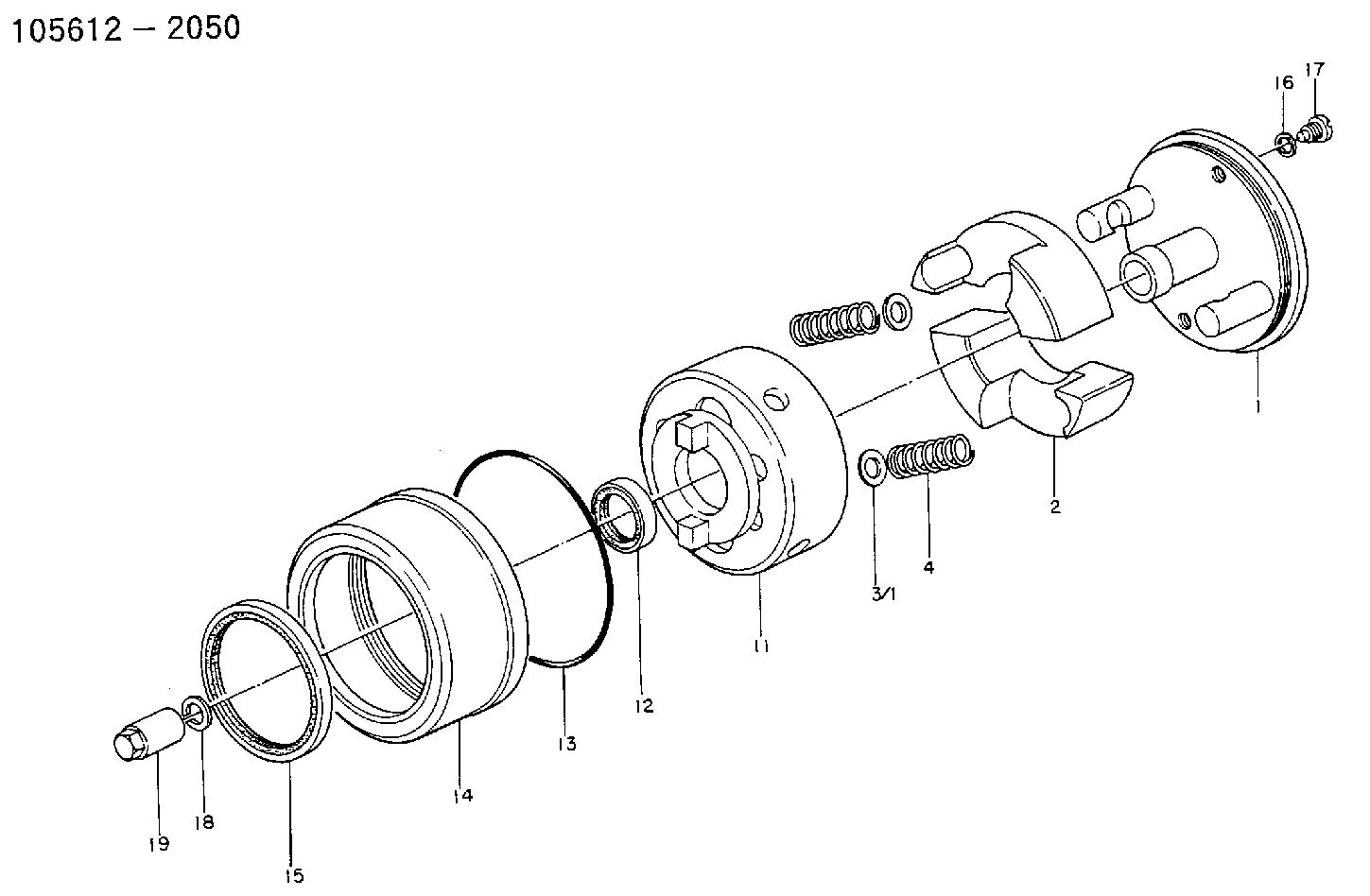

Scheme ###:

1.	[1]	156132-6320	FLYWEIGHT ASSEMBLY
2.	[2]	156108-5700	FLYWEIGHT
3/1.	[0]	029310-9010	SHIM D19.6&9T0.5
3/1.	[0]	029310-9020	SHIM D19.6&9T1
3/1.	[0]	029310-9030	SHIM D19.6&9T0.1
3/1.	[0]	029310-9040	SHIM D19.6&9T0.2
3/1.	[0]	029310-9050	PLAIN WASHER D19.6&9T1.5
3/1.	[0]	139409-0000	SHIM D19.6&9.0T0.15
4.	[2]	156124-1700	COMPRESSION SPRING
11.	[1]	156130-0620	FLANGE BUSHING
12.	[1]	029622-8010	PACKING RING
13.	[1]	156117-0100	O-RING
14.	[1]	156114-0100	CASE
15.	[1]	156116-2520	PACKING RING
16.	[2]	026508-1240	GASKET D11.9&8.2T1
17.	[2]	156115-0100	CAPSULE
18.	[1]	014111-2420	LOCKING WASHER
19.	[1]	131325-0200	UNION NUT

Include in #1:

101651-2250 as AUTOM. ADVANCE MECHANIS

101651-2280

Cross reference number

Zexel num

Bosch num

Firm num

Name

105612-2050

9 420 616 357

225001310A HINO

AUTOM. ADVANCE MECHANISM
* K

Information:

4.236 Five Ring Piston(1) First (top) compression ring: Width of compression ring ... 2.357 to 2.383 mm (.0928 to .0938 in)Clearance between ends of ring installed in cylinder liner that has no wear ... 0.41 to 0.86 mm (.016 to .034 in)(2) Second and third compression rings: Width of compression rings ... 2.357 to 2.383 mm (.0928 to .0938 in)Clearance between ends of each ring installed in cylinder liner that has no wear ... 0.30 to 0.76 mm (.012 to .030 in)(3), (4) Fourth and fifth oil rings: Width of oil rings ... 6.32 to 6.35 mm (.249 to .250 in)Clearance between ends of each ring installed in cylinder liner that has no wear ... 0.30 to 0.76 mm (.012 to .030 in)(5), (6), (7) Width of each groove for compression rings ... 2.431 to 2.456 (.0957 to .0967 in) Ring clearance in the groove ... 0.048 to 0.099 mm (.0019 to .0039)(8), (11) Width of each groove for oil rings ... 6.414 to 6.439 mm (.2525 to .2535 in) Ring clearance in the groove ... 0.064 to 0.114 mm (.0025 to .0045 in)(9) Diameter of piston pin (new) ... 34.920 to 34.93 mm (1.3748 to 1.375 in)(10) Bore in piston for pin ... 34.9212 to
