Information autom. advance mechanism
BOSCH
9 420 616 351
9420616351
ZEXEL
105612-1550
1056121550
ISUZU
5157400191
5157400191
Rating:

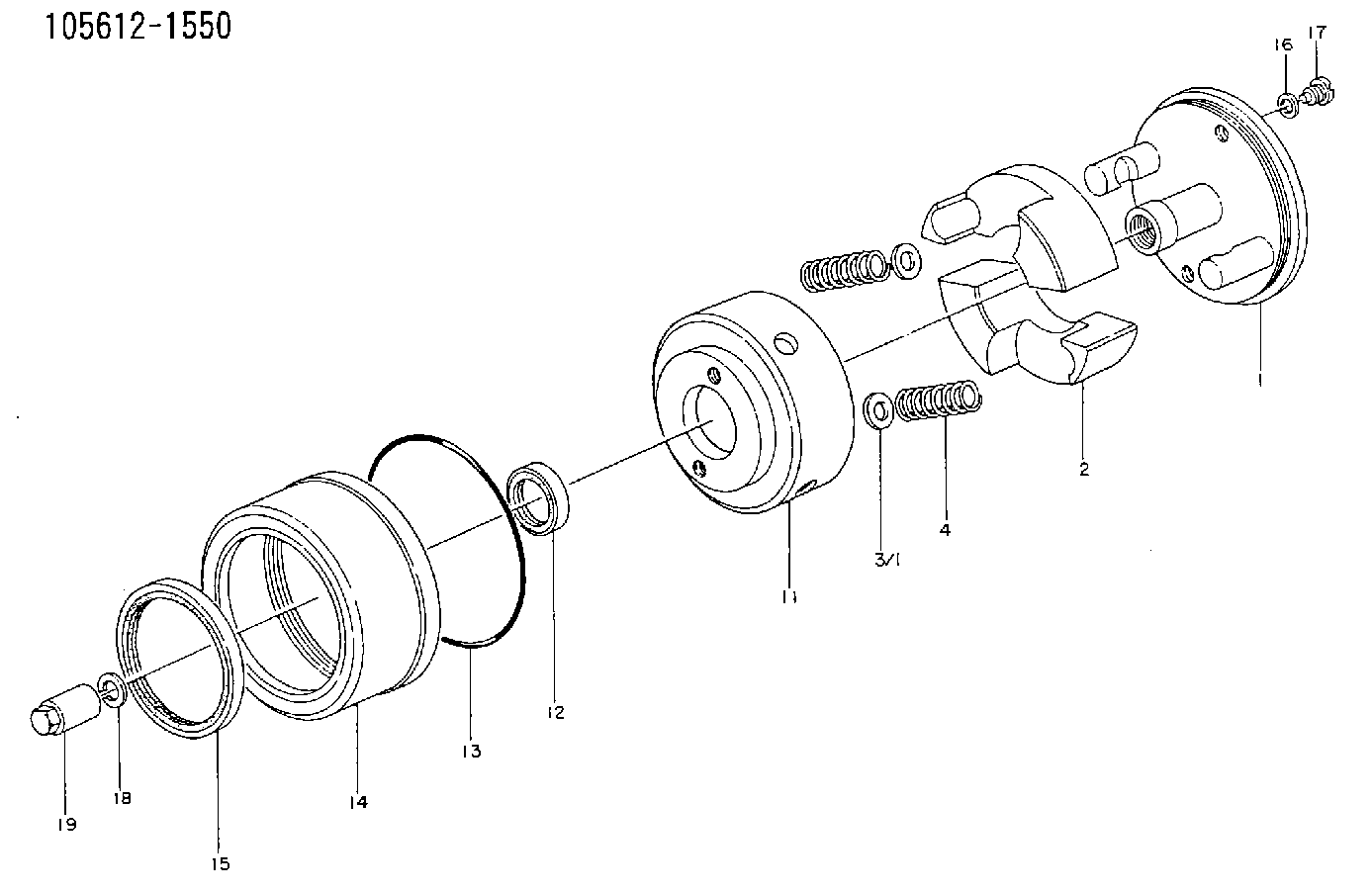

Scheme ###:
| 1. | [1] | 156132-9520 | FLYWEIGHT ASSEMBLY |
| 2. | [2] | 156108-1700 | FLYWEIGHT |
| 3/1. | [0] | 029310-9010 | SHIM D19.6&9T0.5 |
| 3/1. | [0] | 029310-9020 | SHIM D19.6&9T1 |
| 3/1. | [0] | 029310-9030 | SHIM D19.6&9T0.1 |
| 3/1. | [0] | 029310-9040 | SHIM D19.6&9T0.2 |
| 3/1. | [0] | 029310-9050 | PLAIN WASHER D19.6&9T1.5 |
| 3/1. | [0] | 139409-0000 | SHIM D19.6&9.0T0.15 |
| 4. | [2] | 156104-4700 | COMPRESSION SPRING |
| 11. | [1] | 156130-3720 | FLANGE BUSHING |
| 12. | [1] | 156116-0300 | PACKING RING |
| 13. | [1] | 156117-0100 | O-RING |
| 14. | [1] | 156114-1300 | CASE |
| 15. | [1] | 156116-1020 | PACKING RING |
| 16. | [2] | 026508-1240 | GASKET D11.9&8.2T1 |
| 17. | [2] | 156115-0100 | CAPSULE |
| 18. | [1] | 014111-2420 | LOCKING WASHER |
| 19. | [1] | 131325-0200 | UNION NUT |
Include in #1:
101601-0800
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105612-1550
5157400191 ISUZU
AUTOM. ADVANCE MECHANISM
K 14KC AUTOMATIC TIMER TIMER SA TIMER
K 14KC AUTOMATIC TIMER TIMER SA TIMER
Information:
C. Put a small amount of lubricant, such as Lubriplate, on the nut seat area on the compressor. Do not put lubricant on the threads.D. Tighten the compressor wheel retainer nut to ... 30 3 N m (264 24 lb in)
Do not bend or add stress to the shaft when nut is tightened.
(7) Bore in housing (new) ... 22.255 to 22.268 mm (.8762 to .8767 in) Outside diameter of the bearing (new) ... 22.144 to 22.154 mm (.8718 to .8722 in)Maximum permissible clearance between bearing and bore in housing (worn) ... 0.15 mm (.006 in)(8) Thickness of each thrust ring ... 2.553 0.013 mm (.1005 .0005 in)(9) Put 5P3931 Anti-Seize Compound on threads and tighten bolts that hold turbocharger to manifold to ... 55 5 N m (40 4 lb ft)Schwitzer S4D
(1) End play for shaft (new) ... 0.114 0.038 mm (.0045 .0015 in) Maximum permissible end play (worn) ... 0.20 mm (.008 in)(2) Thickness of thrust bearing (where thrust rings contact bearing) ... 5.36 0.03 mm (.211 .001 in)(3) Bore in housing (new) ... 24.994 to 25.006 mm (.9840 to .9845 in) Outside diameter of the bearing (new) ... 24.882 to 24.892 mm (.9796 to .9800 in)Maximum permissible clearance between bearing and bore in housing (worn) ... 0.15 mm (.006 in)(4) Maximum permissible gap of oil seal ring, measured in bore of housing ... 0.25 mm (.010 in)(5) Install the compressor wheel (at room temperature) as follows: a. Put the compressor wheel in position on the shaft.b. Put a small amount of clean engine oil on the shaft threads.c. Install the nut on the shaft, and tighten the nut to a torque of 14 to 17 N m (125 to 150 lb in).
Do not bend or add stress to the shaft when nut is loosened or tightened.
d. Remove nut from shaft and apply 6V1541 Quick Cure Primer on the threads of the shaft and nut followed by application of 9S3265 Retaining Compound.e. Install the nut on the shaft, and tighten the nut to a torque of 4 N m (30 lb in).f. Tighten nut more as follows: For 99.0 mm (3.90 in) diameter compressor wheels, tighten the nut an additional 90°.For 86.4 mm (3.40 in) diameter compressor wheels, tighten the nut an additional 60°.(6) Tighten both band clamps with procedure that follows: a. Tighten to ... 14 1.1 N m (125 10 lb in)b. Tap (hit) clamp lightly all around.c. Tighten again to ... 14 1.1 N m (125 10 lb in)
Do not overtighten the clamps.
(7) Thickness of each thrust ring ... 2.553 0.013 mm (.1005 .0005 in)(8) Diameter of shaft (new) ... 15.997 to 16.005 mm (.6298 to .6301 in) Bore in the bearing (new) ... 16.035 to 16.043 mm (.6313 to .6316 in)Maximum permissible clearance between bearing and shaft (worn) ... 0.05 mm (.002 in)Torque for four nuts (put 5P3931 Anti-Seize Compound on threads) and bolts that hold the
Do not bend or add stress to the shaft when nut is tightened.
(7) Bore in housing (new) ... 22.255 to 22.268 mm (.8762 to .8767 in) Outside diameter of the bearing (new) ... 22.144 to 22.154 mm (.8718 to .8722 in)Maximum permissible clearance between bearing and bore in housing (worn) ... 0.15 mm (.006 in)(8) Thickness of each thrust ring ... 2.553 0.013 mm (.1005 .0005 in)(9) Put 5P3931 Anti-Seize Compound on threads and tighten bolts that hold turbocharger to manifold to ... 55 5 N m (40 4 lb ft)Schwitzer S4D
(1) End play for shaft (new) ... 0.114 0.038 mm (.0045 .0015 in) Maximum permissible end play (worn) ... 0.20 mm (.008 in)(2) Thickness of thrust bearing (where thrust rings contact bearing) ... 5.36 0.03 mm (.211 .001 in)(3) Bore in housing (new) ... 24.994 to 25.006 mm (.9840 to .9845 in) Outside diameter of the bearing (new) ... 24.882 to 24.892 mm (.9796 to .9800 in)Maximum permissible clearance between bearing and bore in housing (worn) ... 0.15 mm (.006 in)(4) Maximum permissible gap of oil seal ring, measured in bore of housing ... 0.25 mm (.010 in)(5) Install the compressor wheel (at room temperature) as follows: a. Put the compressor wheel in position on the shaft.b. Put a small amount of clean engine oil on the shaft threads.c. Install the nut on the shaft, and tighten the nut to a torque of 14 to 17 N m (125 to 150 lb in).
Do not bend or add stress to the shaft when nut is loosened or tightened.
d. Remove nut from shaft and apply 6V1541 Quick Cure Primer on the threads of the shaft and nut followed by application of 9S3265 Retaining Compound.e. Install the nut on the shaft, and tighten the nut to a torque of 4 N m (30 lb in).f. Tighten nut more as follows: For 99.0 mm (3.90 in) diameter compressor wheels, tighten the nut an additional 90°.For 86.4 mm (3.40 in) diameter compressor wheels, tighten the nut an additional 60°.(6) Tighten both band clamps with procedure that follows: a. Tighten to ... 14 1.1 N m (125 10 lb in)b. Tap (hit) clamp lightly all around.c. Tighten again to ... 14 1.1 N m (125 10 lb in)
Do not overtighten the clamps.
(7) Thickness of each thrust ring ... 2.553 0.013 mm (.1005 .0005 in)(8) Diameter of shaft (new) ... 15.997 to 16.005 mm (.6298 to .6301 in) Bore in the bearing (new) ... 16.035 to 16.043 mm (.6313 to .6316 in)Maximum permissible clearance between bearing and shaft (worn) ... 0.05 mm (.002 in)Torque for four nuts (put 5P3931 Anti-Seize Compound on threads) and bolts that hold the
