Information autom. advance mechanism
BOSCH
9 420 615 654
9420615654
ZEXEL
105612-1120
1056121120
MITSUBISHI
3116144600
3116144600
Rating:

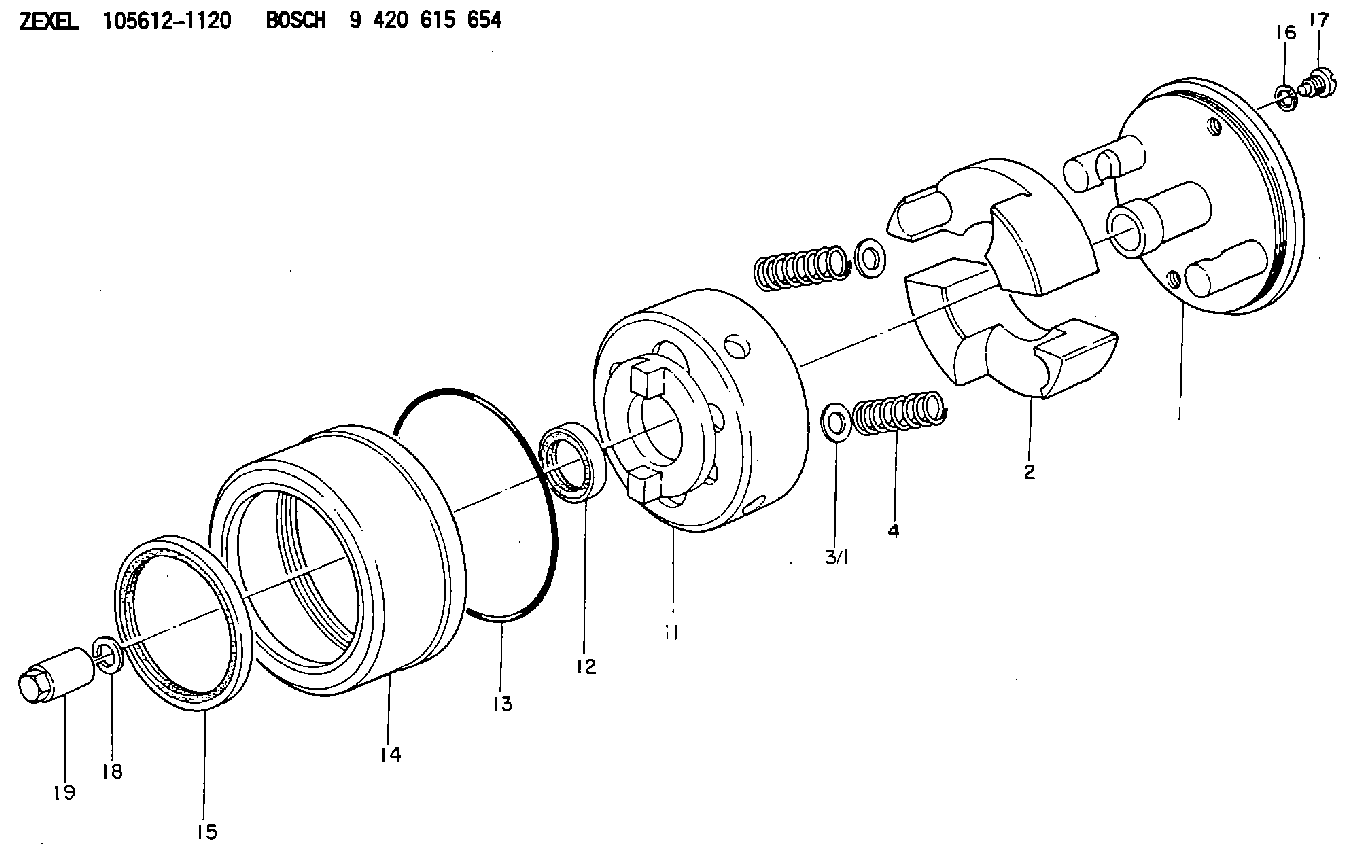

Scheme ###:
| 1. | [1] | 156132-6420 | FLYWEIGHT ASSEMBLY |
| 2. | [2] | 156108-3700 | FLYWEIGHT |
| 3/1. | [0] | 029310-9010 | SHIM D19.6&9T0.5 |
| 3/1. | [0] | 029310-9020 | SHIM D19.6&9T1 |
| 3/1. | [0] | 029310-9030 | SHIM D19.6&9T0.1 |
| 3/1. | [0] | 029310-9040 | SHIM D19.6&9T0.2 |
| 3/1. | [0] | 029310-9050 | PLAIN WASHER D19.6&9T1.5 |
| 3/1. | [0] | 139409-0000 | SHIM D19.6&9.0T0.15 |
| 4. | [2] | 156104-8900 | COMPRESSION SPRING |
| 11. | [1] | 156101-7920 | FLANGE BUSHING |
| 12. | [1] | 029622-8050 | PACKING RING |
| 13. | [1] | 156117-0500 | O-RING |
| 14. | [1] | 156114-0700 | CASE |
| 15. | [1] | 156116-1120 | PACKING RING |
| 16. | [2] | 026508-1240 | GASKET D11.9&8.2T1 |
| 17. | [2] | 156115-0100 | CAPSULE |
| 18. | [1] | 014111-2420 | LOCKING WASHER |
| 19. | [1] | 131325-0200 | UNION NUT |
Include in #1:
101691-1750
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105612-1120
3116144600 MITSUBISHI
AUTOM. ADVANCE MECHANISM
K 14KC AUTOMATIC TIMER TIMER SA TIMER
K 14KC AUTOMATIC TIMER TIMER SA TIMER
