Information autom. advance mechanism
BOSCH
9 420 616 344
9420616344
ZEXEL
105612-0840
1056120840
ISUZU
9813401170
9813401170
Rating:

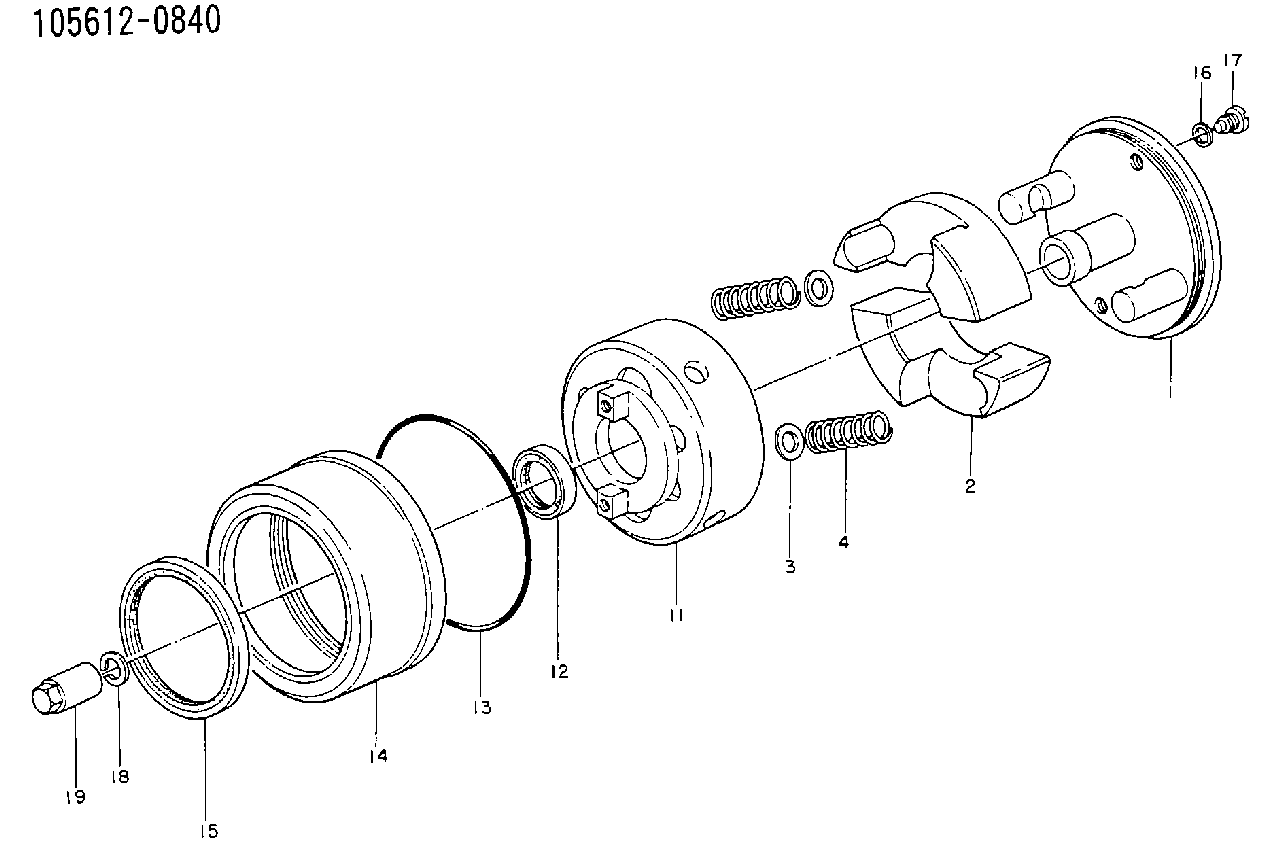

Scheme ###:
| 1. | [1] | 156132-3720 | FLYWEIGHT ASSEMBLY |
| 2. | [2] | 156108-0500 | FLYWEIGHT |
| 3/1. | [0] | 029310-9010 | SHIM D19.6&9T0.5 |
| 3/1. | [0] | 029310-9020 | SHIM D19.6&9T1 |
| 3/1. | [0] | 029310-9030 | SHIM D19.6&9T0.1 |
| 3/1. | [0] | 029310-9040 | SHIM D19.6&9T0.2 |
| 3/1. | [0] | 029310-9050 | PLAIN WASHER D19.6&9T1.5 |
| 3/1. | [0] | 139409-0000 | SHIM D19.6&9.0T0.15 |
| 4. | [2] | 156104-0300 | COMPRESSION SPRING |
| 11. | [1] | 156130-0920 | FLANGE BUSHING |
| 12. | [1] | 029622-8010 | PACKING RING |
| 13. | [1] | 156117-0100 | O-RING |
| 14. | [1] | 156114-1300 | CASE |
| 15. | [1] | 156116-1020 | PACKING RING |
| 16. | [2] | 026508-1240 | GASKET D11.9&8.2T1 |
| 17. | [2] | 156115-0100 | CAPSULE |
| 18. | [1] | 014111-2420 | LOCKING WASHER |
| 19. | [1] | 131325-0200 | UNION NUT |
Include in #1:
101691-4100
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105612-0840
9 420 616 344
9813401170 ISUZU
AUTOM. ADVANCE MECHANISM
* K 14KC TIMER SA TIMER
* K 14KC TIMER SA TIMER
Information:
3T6352 24V 35A (Delco-Remy Number 1117647)
Load the battery with a carbon pile (6V4930 Battery Load Tester) to get the
Load the battery with a carbon pile (6V4930 Battery Load Tester) to get the
Have questions with 105612-0840?
Group cross 105612-0840 ZEXEL
Hino
Isuzu
105612-0840
9 420 616 344
9813401170
AUTOM. ADVANCE MECHANISM
