105693-0421 ZEXEL 9 420 616 228 BOSCH AUTO;TIMING DEVICE 9420616228 1056930421 1157404681

Information auto;timing device

BOSCH 9 420 616 228 9420616228

ZEXEL 105693-0421 1056930421

ISUZU 1157404681 1157404681

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTO;TIMING DEVICE 105693-0421 zexel genuine, new aftermarket engine parts with delivery

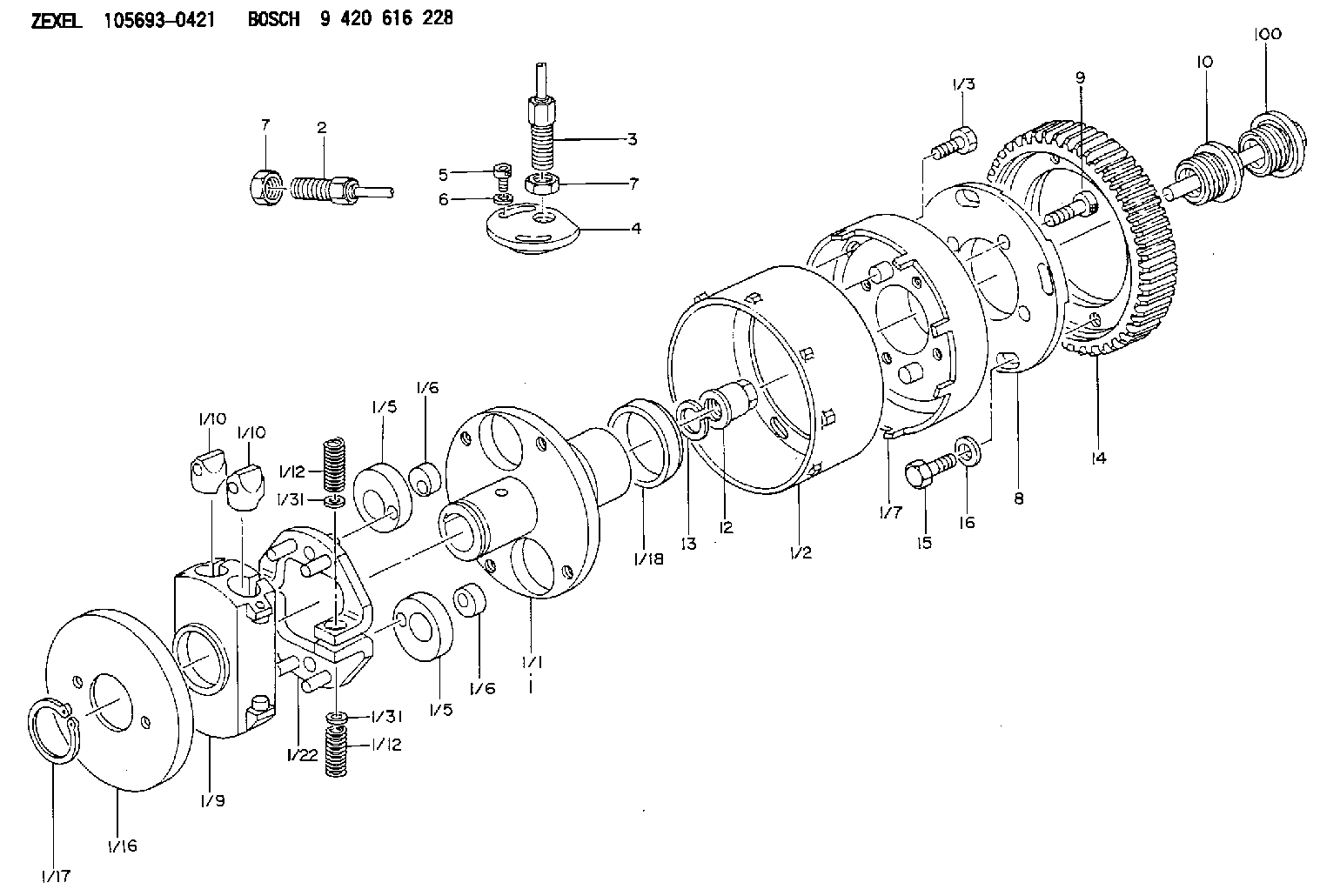

Scheme ###:

1.	[1]	156992-3721	AUTO;TIMING DEVICE
1/1.	[1]	156900-8700	FLANGE BUSHING
1/2.	[1]	156901-7600	TIMING-DEVICE HOUSING
1/3.	[4]	010006-1080	BLEEDER SCREW
1/5.	[2]	156904-1000	ECCENTRIC DISC
1/5.	[2]	156904-1000	ECCENTRIC DISC
1/6.	[2]	156904-0300	ECCENTRIC DISC
1/6.	[2]	156904-0300	ECCENTRIC DISC
1/7.	[1]	156903-3520	SLOTTED WASHER
1/9.	[1]	156905-1620	CYLINDER
1/10.	[4]	156906-0300	PUMP PLUNGER
1/10.	[4]	156906-0300	PUMP PLUNGER
1/12.	[4]	156908-6400	COMPRESSION SPRING
1/12.	[4]	156908-6400	COMPRESSION SPRING
1/16.	[1]	156902-1300	COVER
1/17.	[1]	016020-4020	LOCKING WASHER
1/18.	[1]	156913-3200	SPACER RING
1/22.	[2]	156907-3520	PLATE
1/31.	[4]	029300-8270	PLAIN WASHER
1/31.	[4]	029300-8270	PLAIN WASHER
2.	[1]	479770-2620	PULSE GENERATOR
3.	[1]	479770-2520	PULSE GENERATOR
4.	[1]	156913-9120	CAP
5.	[2]	010206-1620	HEX-SOCKET-HEAD CAP SCREW
6.	[2]	139306-0300	PLAIN WASHER
7.	[2]	156913-9220	UNION NUT
7.	[2]	156913-9220	UNION NUT
8.	[1]	156913-7500	FLANGE;TIMING DEVICE
9.	[4]	010210-3210	HEX-SOCKET-HEAD CAP SCREW
10.	[1]	156914-1620	CAPSULE
12.	[1]	156809-0100	UNION NUT
13.	[1]	156809-0000	LOCKING WASHER
14.	[1]	156914-2101	TOOTHED GEAR
15.	[4]	156913-7600	BLEEDER SCREW
16.	[4]	156913-7700	PLAIN WASHER
100.	[1]	156913-9320	CAPSULE

Include in #1:

106871-1054 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num

Bosch num

Firm num

Name

105693-0421

9 420 616 228

1157404681 ISUZU

AUTO;TIMING DEVICE
K 14KN VARIABLE TIMER TIMER V/T TIMER

Information:

The information supplied in this service letter may not be valid after the termination date of this program. Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
This Program must be administered as soon as possible. When reporting the repair, use "PI3979" as the Part Number, "7751" as the Group Number, "56" as the Warranty Claim Description Code and "T" as the SIMS Description Code. Exception: If the repair is done after failure, use "PI3979" as the Part Number, "7751" as the Group Number, "96" as the Warranty Claim Description Code, and "Z" as the SIMS Description Code.
Refer to your Warranty Bulletin for detailed information in regards to Product Improvement Programs.
Completion Date
June 30, 1997Termination Date
January 31, 1998Problem
During an engine overspeed condition, the engine software may allow the desired injection actuation pressure to exceed the design limits of the unit injector hydraulic pump group, which may result in damage to the pump.
Affected Product
Model & Identification Number
769D (5TR1-216)
771D (6JR1-90)
773D (7ER1-166)
775D (6KR1-99)
Parts Needed
1 - Personality Module (If Needed) Current personality module part numbers can be determided by using NPR, the FIND System, SEHS9914, or the latest SIS Update (Set Up & Tool Guide CD).
Action Required
Replace the software in the engine ECM to March 1996 or newer.
PROCEDURE:
1. Using Caterpillar Electronic Technician (ET) or ECAP service tool, connect to the engine ECM and read the personality module release date.2. If the personality module release date is older than March 1996, replace the personality module or flash the personality module with March 1996 or newer software.Owner Notification
U.S. and Canadian owners will receive the attached Owner Notification.
Service Claim Allowances
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
MAKE EVERY EFFORT TO COMPLETE THIS PROGRAM AS SOON AS POSSIBLE.
Attach.(1-Owner Notification)Copy Of Owner Notification For U.S. And Canadian Owners
