105693-0261 ZEXEL 9 420 615 748 BOSCH AUTO;TIMING DEVICE 9420615748 1056930261 1157404020

Information auto;timing device

BOSCH 9 420 615 748 9420615748

ZEXEL 105693-0261 1056930261

ISUZU 1157404020 1157404020

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTO;TIMING DEVICE 105693-0261 zexel genuine, new aftermarket engine parts with delivery

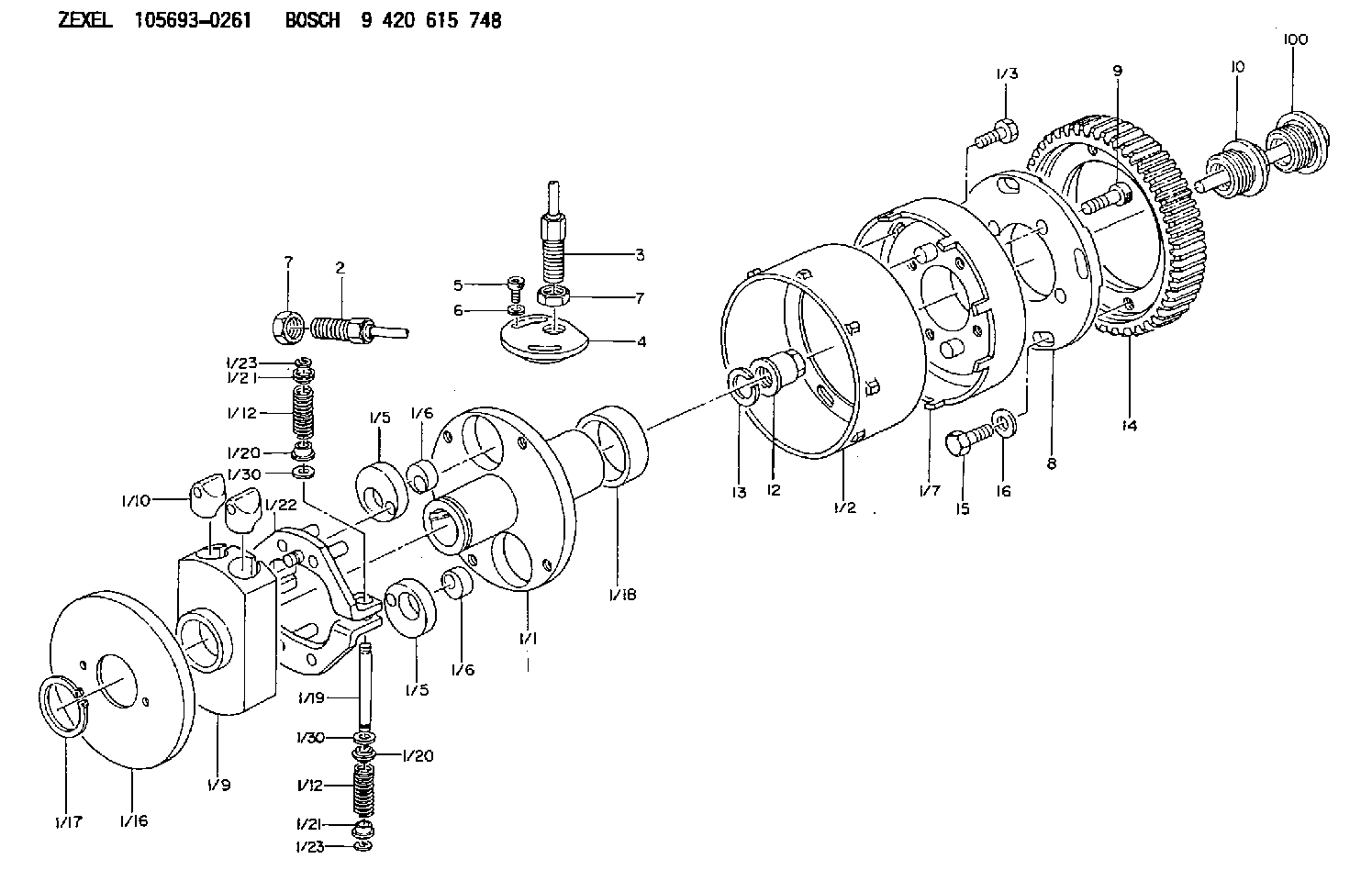

Scheme ###:

1.	[1]	156992-2121	AUTO;TIMING DEVICE
1/1.	[1]	156900-6800	FLANGE BUSHING
1/2.	[1]	156901-5100	TIMING-DEVICE HOUSING
1/3.	[4]	010006-1080	BLEEDER SCREW
1/5.	[2]	156904-0200	ECCENTRIC DISC
1/5.	[2]	156904-0200	ECCENTRIC DISC
1/6.	[2]	156904-0300	ECCENTRIC DISC
1/6.	[2]	156904-0300	ECCENTRIC DISC
1/7.	[1]	156903-2420	SLOTTED WASHER
1/9.	[1]	156905-1000	CYLINDER
1/10.	[4]	156906-0300	PUMP PLUNGER
1/12.	[4]	156908-5000	COILED SPRING
1/12.	[4]	156908-5000	COILED SPRING
1/16.	[1]	156902-1300	COVER
1/17.	[1]	016020-4020	LOCKING WASHER
1/18.	[1]	156913-3200	SPACER RING
1/19.	[2]	156910-2400	PIN
1/20.	[4]	156909-0000	SLOTTED WASHER
1/20.	[4]	156909-0000	SLOTTED WASHER
1/21.	[4]	156707-0000	SLOTTED WASHER
1/21.	[4]	156707-0000	SLOTTED WASHER
1/22.	[2]	156907-2220	PLATE
1/23.	[4]	156913-7400	LOCKING WASHER
1/23.	[4]	156913-7400	LOCKING WASHER
1/30.	[4]	156913-7300	SHIM
1/30.	[4]	156913-7300	SHIM
2.	[1]	479770-0820	PULSE GENERATOR
3.	[1]	479748-3220	PULSE GENERATOR
4.	[1]	156913-9120	CAP
5.	[2]	010206-1620	HEX-SOCKET-HEAD CAP SCREW
6.	[2]	139306-0300	PLAIN WASHER
7.	[2]	156913-9220	UNION NUT
7.	[2]	156913-9220	UNION NUT
8.	[1]	156913-7500	FLANGE;TIMING DEVICE
9.	[4]	010210-3210	HEX-SOCKET-HEAD CAP SCREW
10.	[1]	156913-7220	CAPSULE
12.	[1]	156809-0100	UNION NUT
13.	[1]	156809-0000	LOCKING WASHER
14.	[1]	156878-0100	TOOTHED GEAR
15.	[4]	156913-7600	BLEEDER SCREW
16.	[4]	156913-7700	PLAIN WASHER
100.	[1]	156913-9320	CAPSULE

Include in #1:

106991-1231 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num

Bosch num

Firm num

Name

105693-0261

9 420 615 748

1157404020 ISUZU

AUTO;TIMING DEVICE
K 14KN VARIABLE TIMER TIMER V/T TIMER

Information:

Problem
Certain 776B Tractors and 777B trucks may experience problems during cold starts. An Automatic Ether Injection System (AEIS) can be installed to improve starting and combustion during cold startups and increase the service life of the engine.
Affected Product
Model & Identification Number
776B (6JC1-83)
777B (4YC1-1383)
Parts Needed
2 - 3B6768 Bushing2 - 4N4274 Washer8 - 8C5607 Mount1 - 8C9006 Tee1 - 8C9812 Switch1 - 4D7794 Clip3 - 6D1641 Clip1 - 9D5659 Boss1 - 3E4930 Plate1 - 8E1415 Valve Assembly4 - 5G6966 Spacer4 - 9G3695 Plug5 - 9G9150 Clip1 - 9G9152 Clip3 - 9G9154 Clip1 - 9G9813 Alarm Group1 - 3J1907 Seal1 - 3J5390 Plug3 - 4K6177 Clip2 - 6K8180 Grommet1 - 4L6454 Bolt13 - 5M3062 Bolt8 - 9M8406 Clip3 - 7N0140 Tube Assembly2 - 7N9737 Housing2 - 7N9738 Housing1 - 8N1523 Lockwasher2 - 5P0598 Clamp2 - 5P2948 Connector1 - 5P4325 Clip4 - 5p6313 Nut4 - 5P6314 Sleeve1 - 5P6315 Elbow20 - 3S2093 Strap1 - 3T3046 Clip Assembly2 - 3T3048 Clip Assembly2 - 3T3133 Switch1 - 6T4361 Sensor8 - 8T4224 Washer14 - 8T4896 Washer8 - 8T9043 Bolt4 - 6V2686 Clip2 - 6V5066 Seal1 - 6V6809 Seal4 - 2W9499 Bolt1 - 8W8171 Tube1 - 8W8172 Tube1 - 8W8174 Tube2 - 7X0459 Screw1 - 7X0790 Tag2 - 7X1062 Cylinder Assembly2 - 7X1063 Orifice2 - 7X1078 Nozzle Assembly1 - 8X0912 Tube2 - 8X3708 Lamp Assembly1 - 8X3710 Plate Assembly1 - 8X5003 Harness Assembly2 - 8X5012 Plate1 - 8X5013 Wire Assembly1 - 8X5014 Wire Assembly1 - 8X5018 Harness Assembly1 - 8X5020 Plate Assembly2 - 8X5048 Bracket Assembly1 - 8X5415 Wire Assembly1 - 8X7107 Harness Assembly1 - 8X7433 Harness Assembly1 - 8X8386 Wire Assembly2 - 9X0147 Collar1 - 9X0377 Control Group1 - 9X3271 Adapter1 - 9X3495 Clip Assembly1 - 9X4542 Film1 - 9X5303 Control Group4 - 9X6165 Washer1 - 9X6191 Film2 - 9X7137 Valve Assembly2 - 6Y9788 Plate1 - SEHS9241 - Operator Instruction Card **This card is to remain in the cab in a visible location for reference use by the operator.Action Required
If so equipped, remove the existing manual type ether injection system.
Follow the procedure in Special Instruction SEHS9329 "Installation of Automatic Ether Injection System (AEIS)" and install the Automatic Ether Injection System (AEIS).
Service Claim Allowances
This is a 6-hour job.
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
