105691-4180 ZEXEL 9 420 616 321 BOSCH AUTO;TIMING DEVICE 9420616321 1056914180 1685197665

Information auto;timing device

BOSCH 9 420 616 321 9420616321

ZEXEL 105691-4180 1056914180

NISSAN-DIESEL 1685197665 1685197665

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTO;TIMING DEVICE 105691-4180 zexel genuine, new aftermarket engine parts with delivery

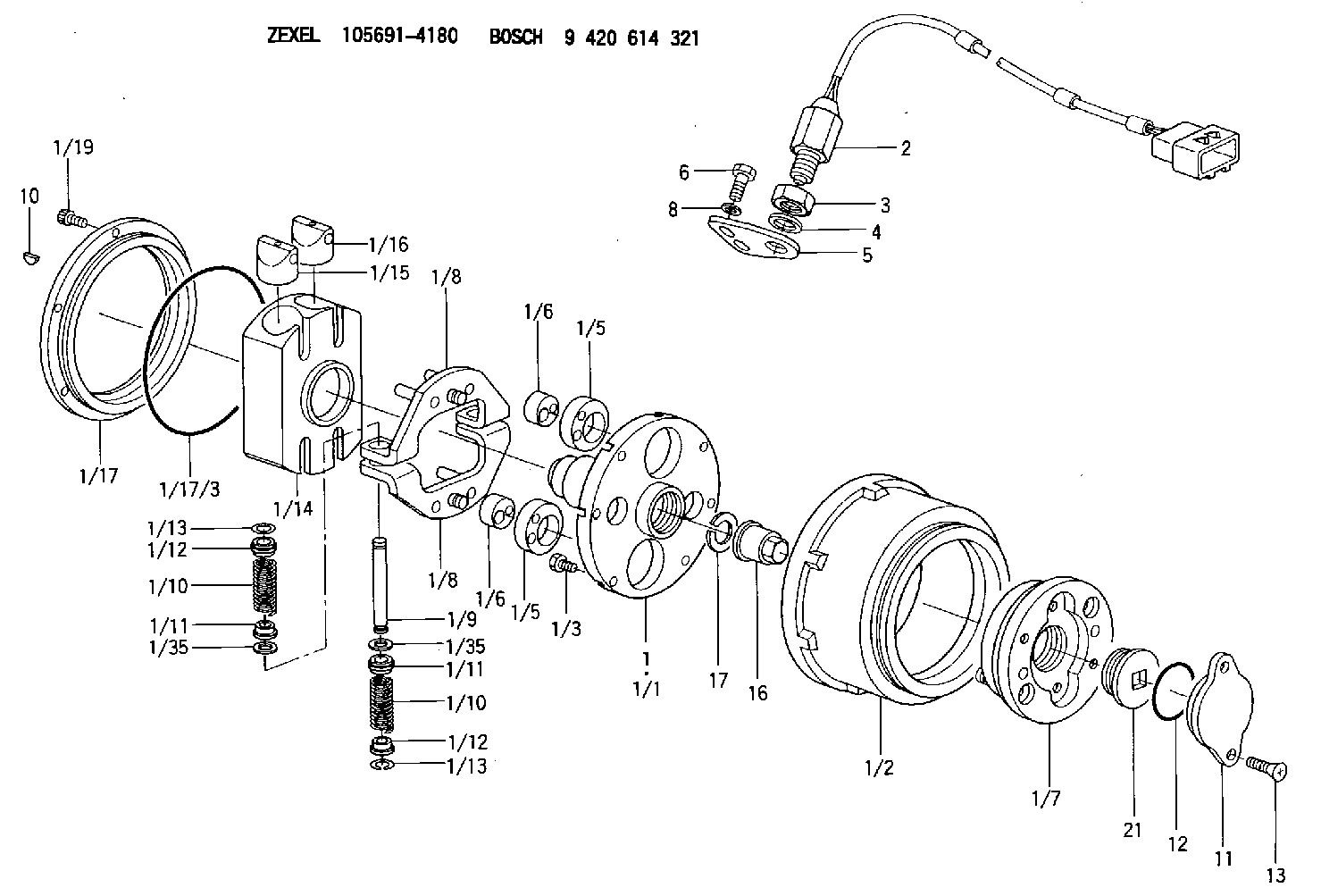

Scheme ###:

1.	[1]	156995-5520	AUTO;TIMING DEVICE
1/1.	[1]	156915-0200	FLANGE BUSHING
1/2.	[1]	156901-8120	TIMING-DEVICE HOUSING
1/3.	[6]	139006-2700	BLEEDER SCREW
1/5.	[2]	156904-0700	ECCENTRIC DISC
1/5.	[2]	156904-0700	ECCENTRIC DISC
1/6.	[2]	156904-0100	ECCENTRIC DISC
1/6.	[2]	156904-0100	ECCENTRIC DISC
1/7.	[1]	156903-1120	SLOTTED WASHER
1/8.	[2]	156907-3620	PLATE
1/8.	[2]	156907-3620	PLATE
1/9.	[2]	156910-2400	PIN
1/10.	[4]	156908-6600	COMPRESSION SPRING
1/10.	[4]	156908-6600	COMPRESSION SPRING
1/11.	[4]	156909-0000	SLOTTED WASHER
1/11.	[4]	156909-0000	SLOTTED WASHER
1/12.	[4]	156707-0000	SLOTTED WASHER
1/12.	[4]	156707-0000	SLOTTED WASHER
1/13.	[4]	156913-7400	LOCKING WASHER
1/13.	[4]	156913-7400	LOCKING WASHER
1/14.	[1]	156905-1920	CYLINDER
1/15.	[2]	156906-0300	PUMP PLUNGER
1/16.	[2]	156906-0300	PUMP PLUNGER
1/17.	[1]	156902-0820	COVER
1/17/3.	[1]	139799-0100	O-RING
1/19.	[6]	010235-0820	HEX-SOCKET-HEAD CAP SCREW
1/35.	[4]	156913-7300	SHIM
1/35.	[4]	156913-7300	SHIM
2.	[1]	479771-2300	PULSE GENERATOR
3.	[1]	029201-6150	UNION NUT
4.	[1]	139316-0000	PLAIN WASHER D25&16.5T5
5.	[1]	156913-7100	PLATE
6.	[2]	020018-2070	BLEEDER SCREW M8P1.25L20 7T
8.	[2]	014020-8140	PLAIN WASHER D16&8.5T1.2
10.	[1]	134563-2300	WOODRUFF KEY
11.	[1]	156913-3900	CAP
12.	[1]	139756-0000	O-RING
13.	[2]	012206-1220	FLAT-HEAD SCREW
16.	[1]	156809-0100	UNION NUT
17.	[1]	156809-0000	LOCKING WASHER
21.	[1]	156914-7121	CAPSULE

Include in #1:

106871-5642 as AUTOM. ADVANCE MECHANIS

106871-5643

Cross reference number

Zexel num

Bosch num

Firm num

Name

105691-4180

9 420 616 321

1685197665 NISSAN-DIESEL

AUTO;TIMING DEVICE
K 14KN VARIABLE TIMER TIMER V/T TIMER

Information:

November 10, 2003
U-307
A-211
D-227
O-256
TT-24
TM-7
Partsstock action only PRODUCT IMPROVEMENT PROGRAM FOR REMOVINGCERTAIN REMAN FUEL INJECTORS FROM DEALER PART STOCK
7750 PI70071
The information supplied in this serviceletter may not be valid after the termination date of this program. Donot perform the work outlined in this Service Letter after the terminationdate without first contacting your Caterpillar product analyst.TERMINATION DATE
February 29, 2004PROBLEM
Certain fuel injectors need to be removed fromdealer part stock. A number of fuel injectors were built with a Valve OpeningPressure (VOP) spacer that missed a hardening operation. This non-hardenedspacer allows premature wear, causing several operational problems whichmay include: engine misfire, low power, white smoke, and engine would notstart.ACTION REQUIRED
Only remove engine injectors within the suspectdate code range from your parts supply.
In order to perform this inspection, injectorsmust be removed from the packaging.
Repackage all injectors.
Illustration 1 (3406E, C15) Illustration 2 (C10, C12)SERVICE CLAIM ALLOWANCES
Submit one claim for all 0R4667, 0R4893, 0R4894,0R4895, 0R9256, 0R9257, 0R9258, 0R9259, 0R9803, 0R4986, 0R4987, 0R4988,0R7549, 0R8773, 0R8780, and 0R9530 removed from parts stock. Remove onlythose injectors from the suspect serial number range listed below. 0R4667, 0R4893, 0R4894, 0R4895, 0R9256,0R9257, 0R9258, 0R9259, and 0R9803 3406E and C15 injectors should be removedif the serial number is between 318224-371662. 0R4986, 0R4987, 0R4988, 0R7549, 0R8773,0R8780, and 0R9530 C10 and C12 injectors should be removed if the serialnumber is between 34768-47935.PARTS DISPOSITION
These remanufactured parts need to be returnedwith dealer normal core returns in order to allow for core deposit refund.
