Information auto;timing device
BOSCH
9 420 616 334
9420616334
ZEXEL
105691-4120
1056914120
MITSUBISHI
ME748731
me748731

Rating:

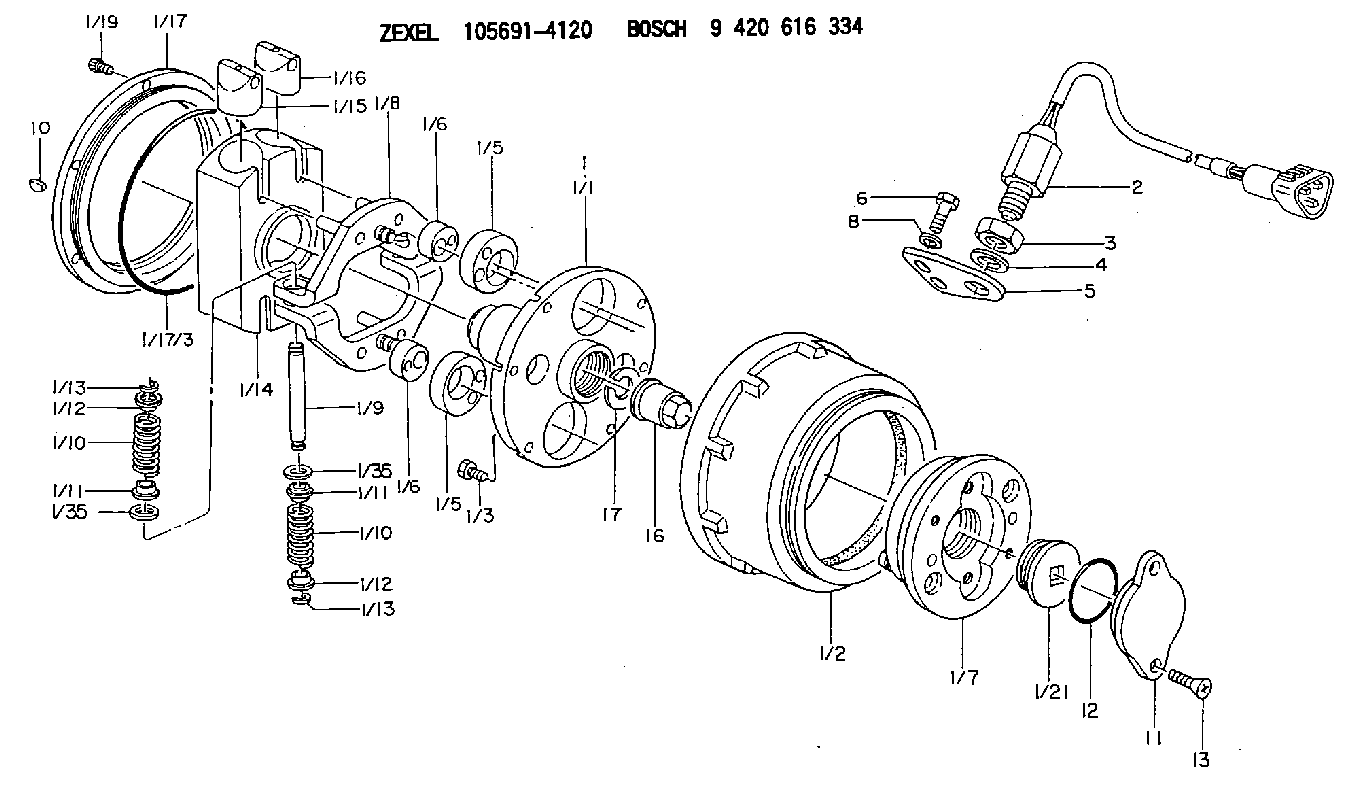

Scheme ###:
1. | [1] | 156995-4920 | AUTO;TIMING DEVICE |
1/1. | [1] | 156900-9300 | FLANGE BUSHING |
1/2. | [1] | 156901-9020 | TIMING-DEVICE HOUSING |
1/3. | [6] | 139006-2700 | BLEEDER SCREW |
1/5. | [2] | 156904-0700 | ECCENTRIC DISC |
1/5. | [2] | 156904-0700 | ECCENTRIC DISC |
1/6. | [2] | 156904-0100 | ECCENTRIC DISC |
1/6. | [2] | 156904-0100 | ECCENTRIC DISC |
1/7. | [1] | 156903-1120 | SLOTTED WASHER |
1/8. | [2] | 156907-2820 | PLATE |
1/9. | [2] | 156910-2400 | PIN |
1/10. | [4] | 156908-6701 | COILED SPRING |
1/10. | [4] | 156908-6701 | COILED SPRING |
1/11. | [4] | 156909-0000 | SLOTTED WASHER |
1/11. | [4] | 156909-0000 | SLOTTED WASHER |
1/12. | [4] | 156707-0000 | SLOTTED WASHER |
1/12. | [4] | 156707-0000 | SLOTTED WASHER |
1/13. | [4] | 156913-7400 | LOCKING WASHER |
1/13. | [4] | 156913-7400 | LOCKING WASHER |
1/14. | [1] | 156905-1720 | CYLINDER |
1/15. | [2] | 156906-0300 | PUMP PLUNGER |
1/16. | [2] | 156906-0300 | PUMP PLUNGER |
1/17. | [1] | 156902-0820 | COVER |
1/17/3. | [1] | 139799-0100 | O-RING |
1/19. | [6] | 010235-0820 | HEX-SOCKET-HEAD CAP SCREW |
1/21. | [1] | 156913-0900 | CAPSULE |
1/35. | [4] | 156913-7300 | SHIM |
1/35. | [4] | 156913-7300 | SHIM |
2. | [1] | 479770-8400 | PULSE GENERATOR |
3. | [1] | 029201-6150 | UNION NUT |
4. | [1] | 139316-0000 | PLAIN WASHER D25&16.5T5 |
5. | [1] | 156913-7100 | PLATE |
6. | [2] | 020018-2070 | BLEEDER SCREW M8P1.25L20 7T |
8. | [2] | 014020-8140 | PLAIN WASHER D16&8.5T1.2 |
10. | [1] | 134563-2300 | WOODRUFF KEY |
11. | [1] | 156913-3900 | CAP |
12. | [1] | 139756-0000 | O-RING |
13. | [2] | 012206-1220 | FLAT-HEAD SCREW |
16. | [1] | 156809-0100 | UNION NUT |
17. | [1] | 156809-0000 | LOCKING WASHER |
Include in #1:
106673-7721
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105691-4120
9 420 616 334
ME748731 MITSUBISHI
AUTO;TIMING DEVICE
K
K
Information:
Start By:a. remove flywheelb. remove crankshaft rear seal and wear sleeve **Remove the crankshaft rear seal and wear sleeve only if the engine is equipped with the later design seal. The later design seal can be identified by the rotation marks on the seal.
Some flywheel housings will have more bolts holding the flywheel housing to the cylinder block.
1. If the engine is equipped with an electric starting motor, remove the electric starting motor from the flywheel housing.2. Remove the bolts that hold the oil pan plate to the flywheel housing. Loosen the bolts that hold the oil pan plate to the cylinder block.3. Install spacers between the oil pan plate and the cylinder block to hold the oil pan plate away from the flywheel housing.
3306 Engine Shown4. On 3306 Engines, remove turbocharger oil drain pipe (1).5. Install Tool (A) on the flywheel housing as shown, and fasten a hoist to it.6. Remove all bolts (2) and the flywheel housing from the engine. The weight of the flywheel housing is 37 kg (82 lb).Install Flywheel Housing
3306 Engine Shown1. Install Tool (A) on the flywheel housing. Fasten a hoist to the flywheel housing. 2. Put the gasket and flywheel housing in position on the engine. Install bolts (2) that hold it. Tighten the bolts to a torque of 100 14 N m (74 10 lb ft) as shown.3. Remove Tool (A) from the flywheel housing.4. On 3306 Engines, install turbocharger oil drain line (1).5. Cut the bottom of the flywheel housing gasket off even with the cylinder block and flywheel housing. Put 3S6252 RTV Silicone Adhesive/Sealant on the bottom of the gasket where it makes contact with the oil pan plate gasket.6. Remove the spacers from between the oil pan plate and the cylinder block. Install the bolts that hold the oil pan plate to the flywheel housing. Tighten the bolts that hold the oil pan plate to the cylinder block.7. If the engine is equipped with an electric starting motor, install it on the flywheel housing.End By:a. install crankshaft rear seal and wear sleeveb. install flywheel
Some flywheel housings will have more bolts holding the flywheel housing to the cylinder block.
1. If the engine is equipped with an electric starting motor, remove the electric starting motor from the flywheel housing.2. Remove the bolts that hold the oil pan plate to the flywheel housing. Loosen the bolts that hold the oil pan plate to the cylinder block.3. Install spacers between the oil pan plate and the cylinder block to hold the oil pan plate away from the flywheel housing.
3306 Engine Shown4. On 3306 Engines, remove turbocharger oil drain pipe (1).5. Install Tool (A) on the flywheel housing as shown, and fasten a hoist to it.6. Remove all bolts (2) and the flywheel housing from the engine. The weight of the flywheel housing is 37 kg (82 lb).Install Flywheel Housing
3306 Engine Shown1. Install Tool (A) on the flywheel housing. Fasten a hoist to the flywheel housing. 2. Put the gasket and flywheel housing in position on the engine. Install bolts (2) that hold it. Tighten the bolts to a torque of 100 14 N m (74 10 lb ft) as shown.3. Remove Tool (A) from the flywheel housing.4. On 3306 Engines, install turbocharger oil drain line (1).5. Cut the bottom of the flywheel housing gasket off even with the cylinder block and flywheel housing. Put 3S6252 RTV Silicone Adhesive/Sealant on the bottom of the gasket where it makes contact with the oil pan plate gasket.6. Remove the spacers from between the oil pan plate and the cylinder block. Install the bolts that hold the oil pan plate to the flywheel housing. Tighten the bolts that hold the oil pan plate to the cylinder block.7. If the engine is equipped with an electric starting motor, install it on the flywheel housing.End By:a. install crankshaft rear seal and wear sleeveb. install flywheel
