105691-4062 ZEXEL 9 420 616 264 BOSCH AUTO;TIMING DEVICE 9420616264 1056914062 1685197610

Information auto;timing device

BOSCH 9 420 616 264 9420616264

ZEXEL 105691-4062 1056914062

NISSAN-DIESEL 1685197610 1685197610

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTO;TIMING DEVICE 105691-4062 zexel genuine, new aftermarket engine parts with delivery

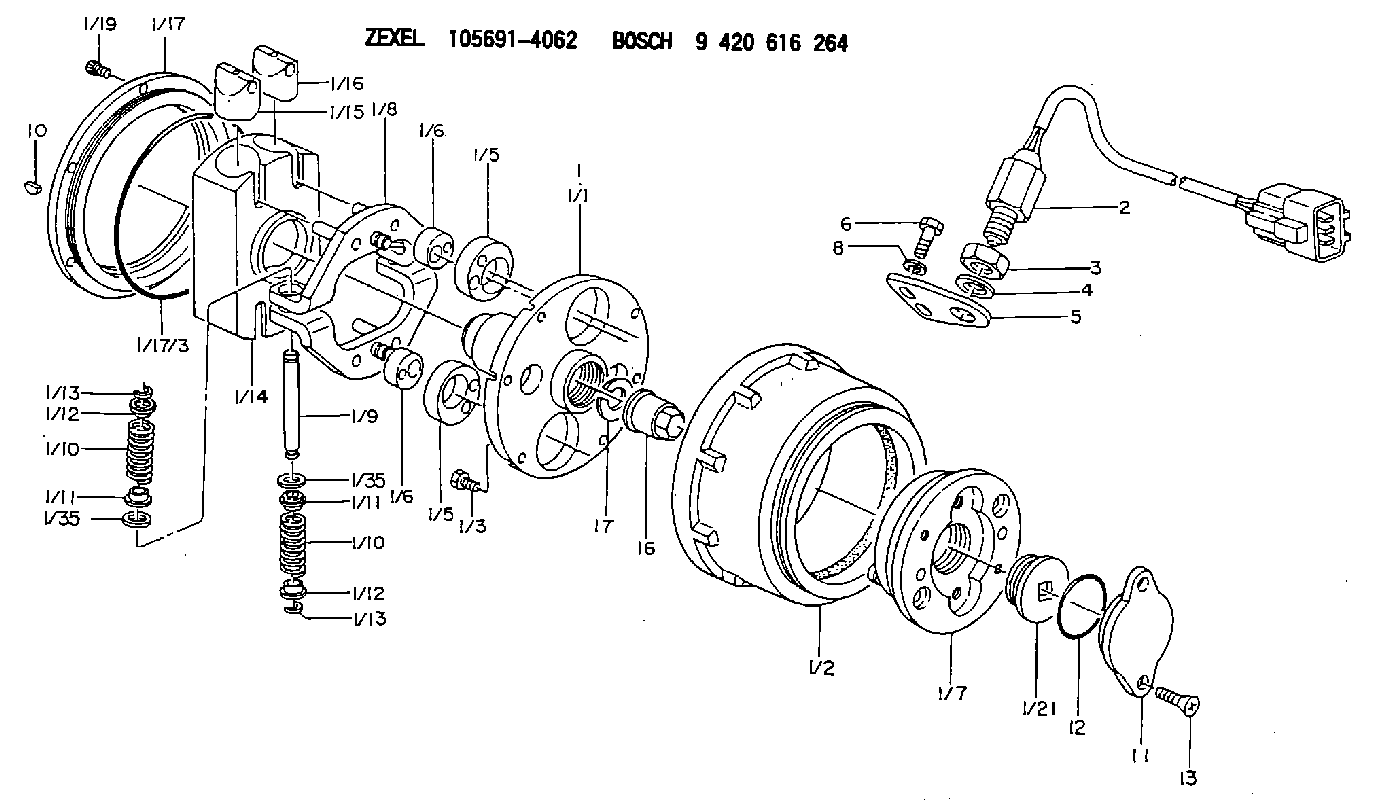

Scheme ###:

1.	[1]	156995-4322	AUTO;TIMING DEVICE
1/1.	[1]	156900-9400	FLANGE BUSHING
1/2.	[1]	156901-8120	TIMING-DEVICE HOUSING
1/3.	[6]	139006-2700	BLEEDER SCREW
1/5.	[2]	156904-0700	ECCENTRIC DISC
1/5.	[2]	156904-0700	ECCENTRIC DISC
1/6.	[2]	156904-0100	ECCENTRIC DISC
1/6.	[2]	156904-0100	ECCENTRIC DISC
1/7.	[1]	156903-1120	SLOTTED WASHER
1/8.	[2]	156907-3620	PLATE
1/9.	[2]	156910-2400	PIN
1/10.	[4]	156908-6600	COMPRESSION SPRING
1/10.	[4]	156908-6600	COMPRESSION SPRING
1/11.	[4]	156909-0000	SLOTTED WASHER
1/11.	[4]	156909-0000	SLOTTED WASHER
1/12.	[4]	156707-0000	SLOTTED WASHER
1/12.	[4]	156707-0000	SLOTTED WASHER
1/13.	[4]	156913-7400	LOCKING WASHER
1/13.	[4]	156913-7400	LOCKING WASHER
1/14.	[1]	156905-1920	CYLINDER
1/15.	[2]	156906-0300	PUMP PLUNGER
1/16.	[2]	156906-0300	PUMP PLUNGER
1/17.	[1]	156902-0820	COVER
1/17/3.	[1]	139799-0100	O-RING
1/19.	[6]	010235-0820	HEX-SOCKET-HEAD CAP SCREW
1/21.	[1]	156913-0900	CAPSULE
1/35.	[4]	156913-7300	SHIM
1/35.	[4]	156913-7300	SHIM
2.	[1]	479771-2300	PULSE GENERATOR
3.	[1]	029201-6150	UNION NUT
4.	[1]	139316-0000	PLAIN WASHER D25&16.5T5
5.	[1]	156913-7100	PLATE
6.	[2]	020018-2070	BLEEDER SCREW M8P1.25L20 7T
8.	[2]	014020-8140	PLAIN WASHER D16&8.5T1.2
10.	[1]	134563-2300	WOODRUFF KEY
11.	[1]	156913-3900	CAP
12.	[1]	139756-0000	O-RING
13.	[2]	012206-1220	FLAT-HEAD SCREW
16.	[1]	156809-0100	UNION NUT
17.	[1]	156809-0000	LOCKING WASHER

Include in #1:

106871-5641 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num

Bosch num

Firm num

Name

105691-4062

9 420 616 264

1685197610 NISSAN-DIESEL

AUTO;TIMING DEVICE
K 14KN VARIABLE TIMER TIMER V/T TIMER

Information:

Start By:a. remove fuel injection nozzlesb. remove cylinder head assembly and spacer plate 1. Put compression on valve spring (2) with Tool (A). Remove locks (1).2. Remove Tool (A), rotocoil, spring, valve stem oil shield and valve. Put identification marks on valves with respect to their location in the cylinder head. 3. Check the spring force with Tool (B). The spring force is 257 25 N (57.8 5.6 lb). The length of spring under test force is 44.86 mm (1.766 in). The free length after test is 52.07 mm (2.050 in).4. Do Steps 1 through 3 again for the remainder of the valves.Install Valves
1. Put clean engine oil on the valve stems. Install valve (3), oil shield (4), spring (2) and rotocoil (1) in the cylinder head. 2. Put Tool (A) in position on the valve spring. Install the locks with Tool (B).
Locks can be thrown from valve when the compressor is released if they are not in their correct position on valve stem. Personal injury can be the result if not carefully removed.
3. Remove Tool (A), and hit the top of valve with a plastic hammer to be sure the locks are in their correct position on valve.4. Do Steps 1 through 3 again for the remainder of the valves.End By:a. install cylinder head assembly and spacer plateb. install fuel injection nozzles
