105691-3461 ZEXEL 9 420 615 738 BOSCH AUTO;TIMING DEVICE 9420615738 1056913461 1157403410

Information auto;timing device

BOSCH 9 420 615 738 9420615738

ZEXEL 105691-3461 1056913461

ISUZU 1157403410 1157403410

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTO;TIMING DEVICE 105691-3461 zexel genuine, new aftermarket engine parts with delivery

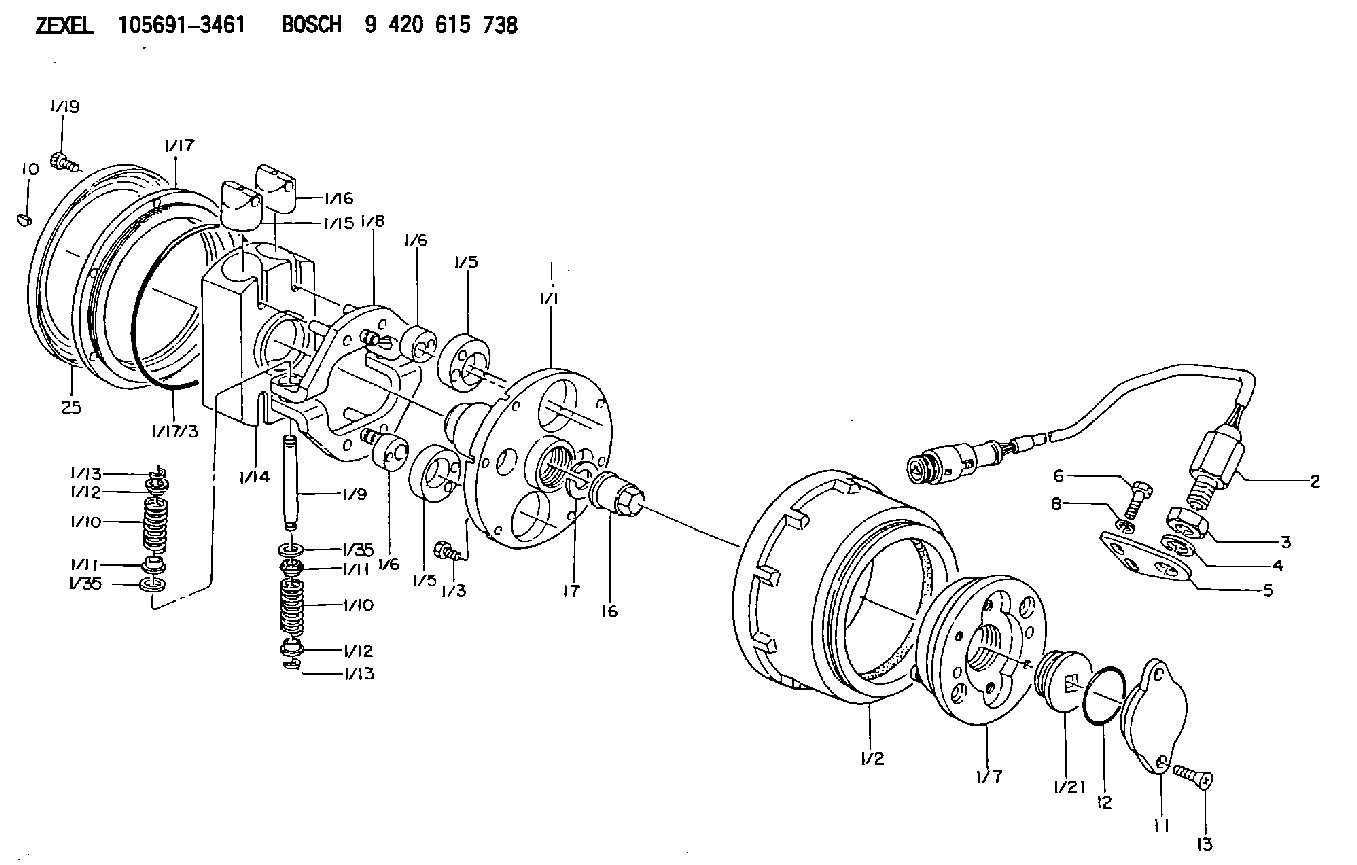

Scheme ###:

1.	[1]	156991-8321	AUTO;TIMING DEVICE
1/1.	[1]	156900-6100	FLANGE BUSHING
1/2.	[1]	156901-4720	TIMING-DEVICE HOUSING
1/3.	[6]	139006-2700	BLEEDER SCREW
1/5.	[2]	156904-0000	ECCENTRIC DISC
1/5.	[2]	156904-0000	ECCENTRIC DISC
1/6.	[2]	156904-0100	ECCENTRIC DISC
1/6.	[2]	156904-0100	ECCENTRIC DISC
1/7.	[1]	156903-1120	SLOTTED WASHER
1/8.	[2]	156907-2320	PLATE
1/9.	[2]	156910-2000	PIN
1/10.	[4]	156908-5200	COMPRESSION SPRING
1/10.	[4]	156908-5200	COMPRESSION SPRING
1/11.	[4]	156909-0000	SLOTTED WASHER
1/11.	[4]	156909-0000	SLOTTED WASHER
1/12.	[4]	156707-0000	SLOTTED WASHER
1/12.	[4]	156707-0000	SLOTTED WASHER
1/13.	[4]	156913-7400	LOCKING WASHER
1/13.	[4]	156913-7400	LOCKING WASHER
1/14.	[1]	156905-0900	CYLINDER
1/15.	[2]	156906-0300	PUMP PLUNGER
1/16.	[2]	156906-0300	PUMP PLUNGER
1/17.	[1]	156902-1420	COVER
1/17/3.	[1]	139799-0100	O-RING
1/19.	[6]	156913-8900	HEX-SOCKET-HEAD CAP SCREW
1/21.	[1]	156913-0900	CAPSULE
1/35.	[4]	156913-7300	SHIM
1/35.	[4]	156913-7300	SHIM
2.	[1]	479748-4500	PULSE GENERATOR
3.	[1]	029201-6150	UNION NUT
4.	[1]	139316-0000	PLAIN WASHER D25&16.5T5
5.	[1]	156913-8700	PLATE
6.	[2]	020018-2070	BLEEDER SCREW M8P1.25L20 7T
8.	[2]	014020-8140	PLAIN WASHER D16&8.5T1.2
10.	[1]	134563-2300	WOODRUFF KEY
11.	[1]	156913-3900	CAP
12.	[1]	139756-0000	O-RING
13.	[2]	012206-1220	FLAT-HEAD SCREW
16.	[1]	156809-0100	UNION NUT
17.	[1]	156809-0000	LOCKING WASHER
25.	[1]	156913-8800	DUST SEAL

Include in #1:

106671-1582 as AUTOM. ADVANCE MECHANIS

106671-1583

Cross reference number

Zexel num

Bosch num

Firm num

Name

105691-3461

9 420 615 738

1157403410 ISUZU

AUTO;TIMING DEVICE
K 14KN VARIABLE TIMER TIMER V/T TIMER

Information:

4N3181 (4N3182) 24V (Delco-Remy Number 1113853)
Rotation as seen from drive end ... ClockwiseMinimum speed with no load ... 5500 rpmMaximum speed with no load ... 7500 rpmCurrent consumption (draw) at no load: Minimum with solenoid at 20V ... 75AMaximum with solenoid at 20V ... 95AClearance between pinion and housing (pinion clearance) ... 9.1 mm (.36 in.)(1) Tension of brush spring ... 22.2 N (80 oz.)(2) Torque for screws holding nose housing to lever housing ... 18 to 2
