Information auto;timing device
BOSCH
9 420 616 122
9420616122
ZEXEL
105691-3062
1056913062
HINO
211001212A
211001212a

Rating:

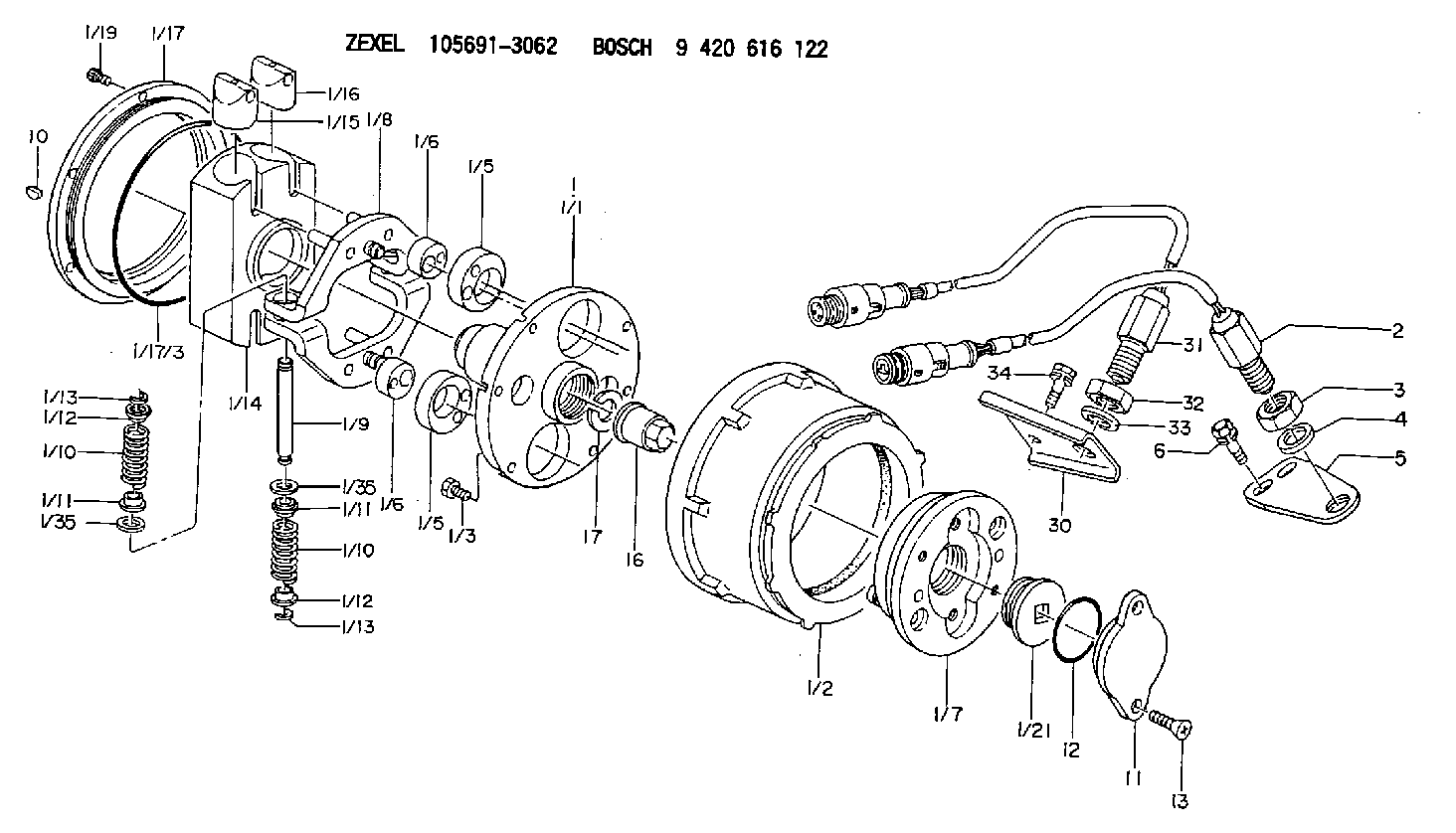

Scheme ###:
1. | [1] | 156991-3622 | AUTO;TIMING DEVICE |
1/1. | [1] | 156900-4100 | FLANGE BUSHING |
1/2. | [1] | 156901-2520 | TIMING-DEVICE HOUSING |
1/3. | [6] | 139006-2700 | BLEEDER SCREW |
1/5. | [2] | 156904-0000 | ECCENTRIC DISC |
1/5. | [2] | 156904-0000 | ECCENTRIC DISC |
1/6. | [2] | 156904-0100 | ECCENTRIC DISC |
1/6. | [2] | 156904-0100 | ECCENTRIC DISC |
1/7. | [1] | 156903-1620 | SLOTTED WASHER |
1/8. | [2] | 156907-1620 | PLATE |
1/9. | [2] | 156910-2200 | PIN |
1/10. | [4] | 156908-3800 | COMPRESSION SPRING |
1/10. | [4] | 156908-3800 | COMPRESSION SPRING |
1/11. | [4] | 156909-0000 | SLOTTED WASHER |
1/11. | [4] | 156909-0000 | SLOTTED WASHER |
1/12. | [4] | 156707-0000 | SLOTTED WASHER |
1/12. | [4] | 156707-0000 | SLOTTED WASHER |
1/13. | [4] | 156913-7400 | LOCKING WASHER |
1/13. | [4] | 156913-7400 | LOCKING WASHER |
1/14. | [1] | 156905-0300 | CYLINDER |
1/15. | [2] | 156906-0300 | PUMP PLUNGER |
1/16. | [2] | 156906-0300 | PUMP PLUNGER |
1/17. | [1] | 156902-0820 | COVER |
1/17/3. | [1] | 139799-0100 | O-RING |
1/19. | [6] | 010235-0820 | HEX-SOCKET-HEAD CAP SCREW |
1/21. | [1] | 156913-0900 | CAPSULE |
1/35. | [4] | 156913-7300 | SHIM |
1/35. | [4] | 156913-7300 | SHIM |
2. | [1] | 479729-9400 | PULSE GENERATOR |
3. | [1] | 029201-6150 | UNION NUT |
4. | [1] | 139316-0000 | PLAIN WASHER D25&16.5T5 |
5. | [1] | 156913-8000 | PLATE |
6. | [2] | 020018-2070 | BLEEDER SCREW M8P1.25L20 7T |
10. | [1] | 134563-2300 | WOODRUFF KEY |
11. | [1] | 156913-3900 | CAP |
12. | [1] | 139756-0000 | O-RING |
13. | [2] | 012206-1220 | FLAT-HEAD SCREW |
16. | [1] | 156809-0100 | UNION NUT |
17. | [1] | 156809-0000 | LOCKING WASHER |
30. | [1] | 156913-8100 | PLATE |
31. | [1] | 479749-4700 | PULSE GENERATOR |
32. | [1] | 029201-6150 | UNION NUT |
33. | [1] | 139316-0000 | PLAIN WASHER D25&16.5T5 |
34. | [2] | 020018-2070 | BLEEDER SCREW M8P1.25L20 7T |
Include in #1:
106871-3832
as AUTOM. ADVANCE MECHANIS
Cross reference number
Zexel num
Bosch num
Firm num
Name
105691-3062
9 420 616 122
211001212A HINO
AUTO;TIMING DEVICE
K
K
105691-3062
9 420 616 122
225002962A HINO
AUTO;TIMING DEVICE
A K
A K
