105690-0231 ZEXEL 9 420 616 253 BOSCH AUTO;TIMING DEVICE 9420616253 1056900231 1157405231

Information auto;timing device

BOSCH 9 420 616 253 9420616253

ZEXEL 105690-0231 1056900231

ISUZU 1157405231 1157405231

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTO;TIMING DEVICE 105690-0231 zexel genuine, new aftermarket engine parts with delivery

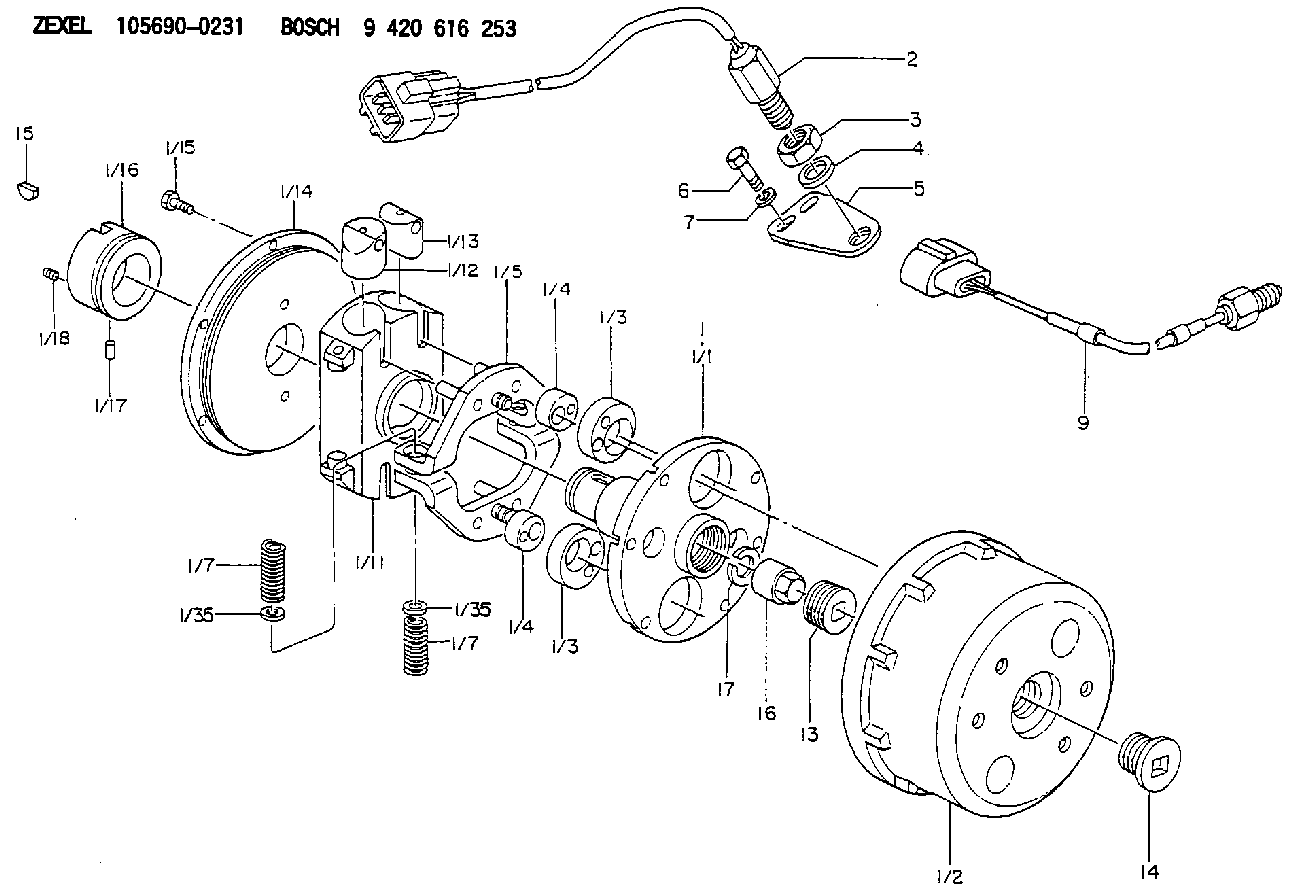

Scheme ###:

1.	[1]	156990-3020	AUTO;TIMING DEVICE
1/1.	[1]	156900-9521	FLANGE BUSHING
1/2.	[1]	156901-9121	TIMING-DEVICE HOUSING
1/3.	[2]	156904-0400	ECCENTRIC DISC
1/3.	[2]	156904-0400	ECCENTRIC DISC
1/4.	[2]	156904-0500	ECCENTRIC DISC
1/4.	[2]	156904-0500	ECCENTRIC DISC
1/5.	[2]	156907-3721	PLATE
1/7.	[4]	156908-6900	COILED SPRING
1/7.	[4]	156908-6900	COILED SPRING
1/11.	[1]	156905-1821	CYLINDER
1/12.	[2]	156906-0201	PUMP PLUNGER
1/13.	[2]	156906-0201	PUMP PLUNGER
1/14.	[1]	156902-1721	COVER
1/15.	[6]	156913-3300	BLEEDER SCREW
1/16.	[1]	156913-4820	TIMING RING
1/17.	[1]	156911-0600	BEARING PIN
1/18.	[1]	011004-0820	SET OF NUTS
1/35.	[4]	156913-7300	SHIM
1/35.	[4]	156913-7300	SHIM
2.	[1]	479771-4701	PULSE GENERATOR
3.	[1]	029201-6150	UNION NUT
4.	[1]	139316-0000	PLAIN WASHER D25&16.5T5
5.	[1]	156913-8300	PLATE
6.	[2]	020018-2070	BLEEDER SCREW M8P1.25L20 7T
7.	[2]	014020-8140	PLAIN WASHER D16&8.5T1.2
9.	[1]	479771-4521	PULSE GENERATOR
13.	[1]	156913-4701	CAPSULE
14.	[1]	156914-4521	CAPSULE
15.	[1]	025804-1610	WOODRUFF KEY
16.	[1]	131325-1800	UNION NUT
17.	[1]	029321-4030	LOCKING WASHER

Include in #1:

101606-0051 as AUTOM. ADVANCE MECHANIS

101606-0061

101606-0160

Cross reference number

Zexel num

Bosch num

Firm num

Name

105690-0231
105690-0232

9 420 616 253

1157405231 ISUZU

AUTO;TIMING DEVICE
* K
