105690-0210 ZEXEL 9 420 615 971 BOSCH AUTO;TIMING DEVICE 9420615971 1056900210 16810z5610

Information auto;timing device

BOSCH 9 420 615 971 9420615971

ZEXEL 105690-0210 1056900210

NISSAN-DIESEL 16810Z5610 16810z5610

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTO;TIMING DEVICE 105690-0210 zexel genuine, new aftermarket engine parts with delivery

Scheme ###:

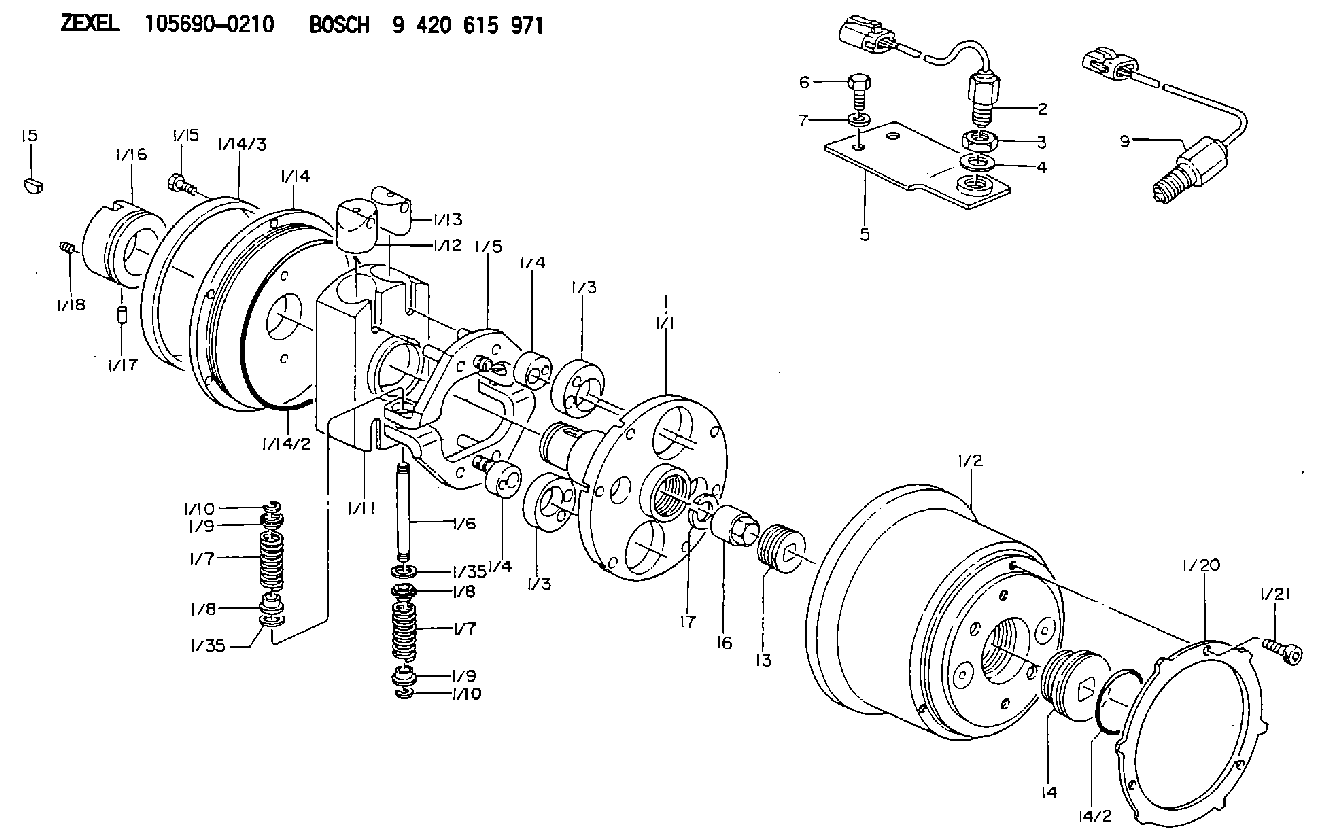

1.	[1]	156990-2620	AUTO;TIMING DEVICE
1/1.	[1]	156900-6520	FLANGE BUSHING
1/2.	[1]	156901-5420	TIMING-DEVICE HOUSING
1/3.	[2]	156904-0400	ECCENTRIC DISC
1/3.	[2]	156904-0400	ECCENTRIC DISC
1/4.	[2]	156904-0500	ECCENTRIC DISC
1/4.	[2]	156904-0500	ECCENTRIC DISC
1/5.	[2]	156907-0920	PLATE
1/6.	[2]	156910-2400	PIN
1/7.	[4]	156908-4400	COMPRESSION SPRING
1/7.	[4]	156908-4400	COMPRESSION SPRING
1/8.	[4]	156909-0300	SLOTTED WASHER
1/8.	[4]	156909-0300	SLOTTED WASHER
1/9.	[4]	156909-0400	SLOTTED WASHER
1/9.	[4]	156909-0400	SLOTTED WASHER
1/10.	[4]	156913-7400	LOCKING WASHER
1/10.	[4]	156913-7400	LOCKING WASHER
1/11.	[1]	156905-0600	CYLINDER
1/12.	[2]	156906-0201	PUMP PLUNGER
1/13.	[2]	156906-0201	PUMP PLUNGER
1/14.	[1]	156902-1020	COVER
1/14/2.	[1]	139799-0300	O-RING
1/14/3.	[1]	156913-4400	SPACER RING
1/15.	[6]	156913-3300	BLEEDER SCREW
1/16.	[1]	156913-4820	TIMING RING
1/17.	[1]	156911-0600	BEARING PIN
1/18.	[1]	011004-0820	SET OF NUTS
1/20.	[1]	156912-1000	TIMING PLATE
1/21.	[3]	156913-5500	BLEEDER SCREW
1/35.	[4]	156913-7900	SHIM
1/35.	[4]	156913-7900	SHIM
2.	[1]	479748-4700	PULSE GENERATOR
3.	[1]	029201-6150	UNION NUT
4.	[1]	139316-0000	PLAIN WASHER D25&16.5T5
5.	[1]	156913-6300	BRACKET
6.	[2]	010038-1640	BLEEDER SCREW M8P1.25L16
7.	[2]	014130-8140	CONICAL SPRING WASHER
9.	[1]	479748-4600	PULSE GENERATOR
13.	[1]	156913-4701	CAPSULE
14.	[1]	156913-5020	CAPSULE
14/2.	[1]	139733-0000	O-RING
15.	[1]	025804-1610	WOODRUFF KEY
16.	[1]	131325-1800	UNION NUT
17.	[1]	029321-4030	LOCKING WASHER

Include in #1:

101693-9340 as AUTOM. ADVANCE MECHANIS

Cross reference number

Zexel num

Bosch num

Firm num

Name

105690-0210

9 420 615 971

16810Z5610 NISSAN-DIESEL

AUTO;TIMING DEVICE
K

Information:

This Program can only be administered after a failure occurs. The decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS5560" as the Part Number and "7755" as the Group Number. Use "96" as the Warranty Claim Description Code and use "Z" as the SIMS Description Code.
Termination Date
December 19, 1999Problem
The connection plate from the fuel injection pump lever may wear prematurely causing the return spring to disconnect on certain 312 Excavators. When the return spring disconnects, the fuel injection pump will no longer operate properly.
Affected Product
Model & Identification Number
312 (6BL112-1827)
CIPI Product (05A10771, 10798, 11808)
Parts Needed
1 - 5C2890 Nut1 - 8C3111 Rod End1 - 8T4971 Bolt1 - 9X8256 Washer1 - 1643187 PlateAction Required
See the attached Rework Procedures.
Service Claim Allowances
This is a 1-hour job.
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
Attach.(1-Rework Procedure)Rework Procedure
1. Disconnect return spring from 1190312 Plate.2. Remove the ball-joint from extremity of the governor cable, and replace it by 8C3111 Rod End.3. Remove 1190312 Plate, 9X8256 Washer and 8T4134 Nut. Keep 9X8256 Washer to be reused.4. To connect new 1643187 Plate together with injection pump lever and 8C3111 Cable Rod End, use 8T4971 Bolt, (2) 9X8256 Washers and 5C2890 Nut. See Illustration 1.5. Reconnect the return spring to 1643187 Plate.6. Perform an auto calibration through controller Service Mode, and readjust if necessary the cable tension, according to Hydraulics and Electronics "Testing & Adjusting" manual.
Illustration 1
