105690-0161 ZEXEL 9 420 615 969 BOSCH AUTO;TIMING DEVICE 9420615969 1056900161 16810z5605

Information auto;timing device

BOSCH 9 420 615 969 9420615969

ZEXEL 105690-0161 1056900161

NISSAN-DIESEL 16810Z5605 16810z5605

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy AUTO;TIMING DEVICE 105690-0161 zexel genuine, new aftermarket engine parts with delivery

Scheme ###:

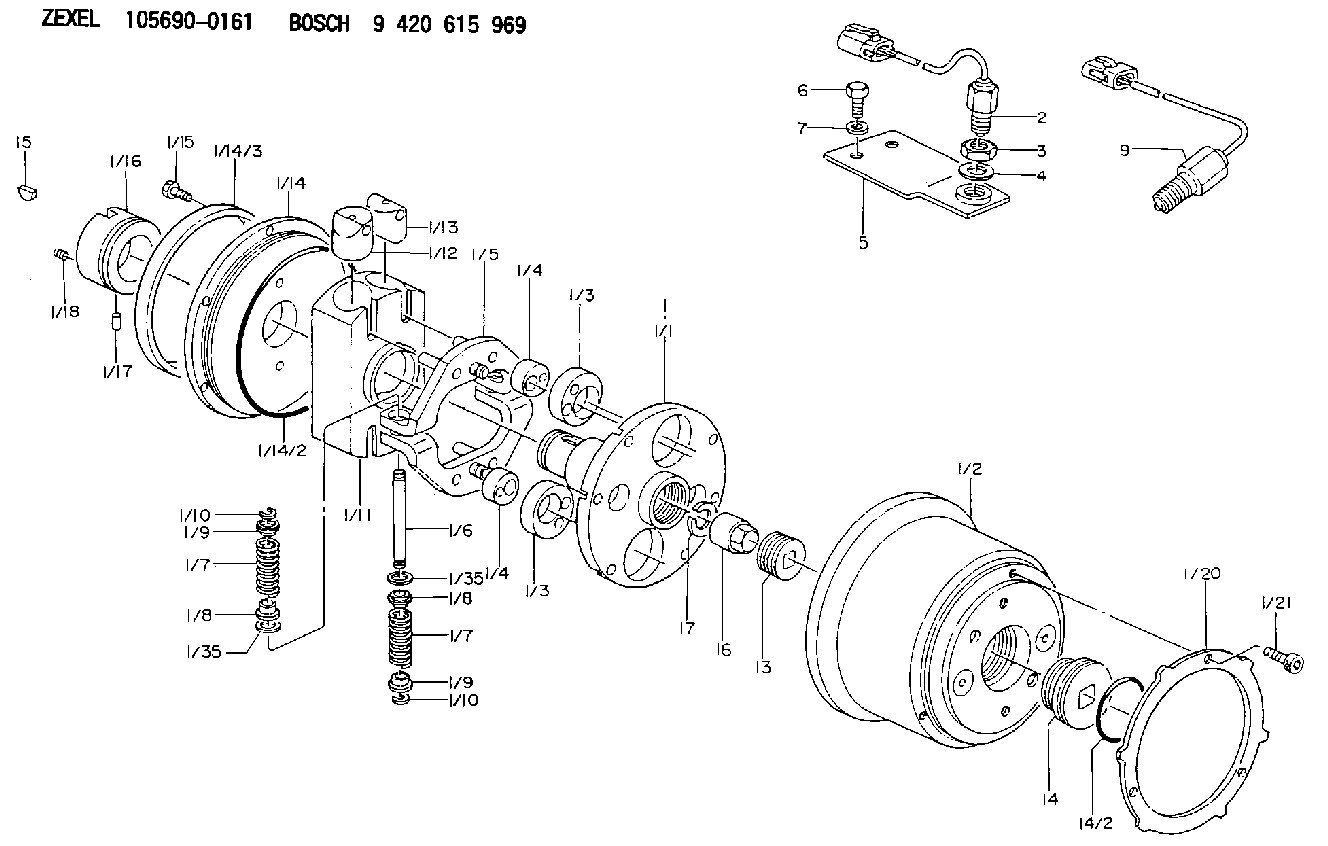

1.	[1]	156990-1921	AUTO;TIMING DEVICE
1/1.	[1]	156900-2320	FLANGE BUSHING
1/2.	[1]	156901-1020	TIMING-DEVICE HOUSING
1/3.	[2]	156904-0400	ECCENTRIC DISC
1/3.	[2]	156904-0400	ECCENTRIC DISC
1/4.	[2]	156904-0500	ECCENTRIC DISC
1/4.	[2]	156904-0500	ECCENTRIC DISC
1/5.	[2]	156907-1220	PLATE
1/6.	[2]	156910-2400	PIN
1/7.	[4]	156908-4400	COMPRESSION SPRING
1/7.	[4]	156908-4400	COMPRESSION SPRING
1/8.	[4]	156909-0300	SLOTTED WASHER
1/8.	[4]	156909-0300	SLOTTED WASHER
1/9.	[4]	156909-0400	SLOTTED WASHER
1/9.	[4]	156909-0400	SLOTTED WASHER
1/10.	[4]	156913-7400	LOCKING WASHER
1/10.	[4]	156913-7400	LOCKING WASHER
1/11.	[1]	156905-0600	CYLINDER
1/12.	[2]	156906-0201	PUMP PLUNGER
1/13.	[2]	156906-0201	PUMP PLUNGER
1/14.	[1]	156902-1020	COVER
1/14/2.	[1]	139799-0300	O-RING
1/14/3.	[1]	156913-4400	SPACER RING
1/15.	[6]	156913-3300	BLEEDER SCREW
1/16.	[1]	156913-4820	TIMING RING
1/17.	[1]	156911-0600	BEARING PIN
1/18.	[1]	011004-0820	SET OF NUTS
1/20.	[1]	156912-1000	TIMING PLATE
1/21.	[3]	156913-5500	BLEEDER SCREW
1/35.	[4]	156913-7900	SHIM
1/35.	[4]	156913-7900	SHIM
2.	[1]	479748-0901	PULSE GENERATOR
3.	[1]	029201-6150	UNION NUT
4.	[1]	139316-0000	PLAIN WASHER D25&16.5T5
5.	[1]	156913-6300	BRACKET
6.	[2]	010038-1640	BLEEDER SCREW M8P1.25L16
7.	[2]	014130-8140	CONICAL SPRING WASHER
9.	[1]	479748-1020	PULSE GENERATOR
13.	[1]	156913-4701	CAPSULE
14.	[1]	156913-5020	CAPSULE
14/2.	[1]	139733-0000	O-RING
15.	[1]	025804-1610	WOODRUFF KEY
16.	[1]	131325-1800	UNION NUT
17.	[1]	029321-4030	LOCKING WASHER

Include in #1:

101691-9868 as AUTOM. ADVANCE MECHANIS

101693-9095

101693-9096

Cross reference number

Zexel num

Bosch num

Firm num

Name

105690-0161

9 420 615 969

16810Z5605 NISSAN-DIESEL

AUTO;TIMING DEVICE
