159601-6120 ZEXEL 9 421 620 653 BOSCH ADJUSTING DEVICE 9421620653 1596016120 me748335




Information adjusting device

BOSCH 9 421 620 653 9421620653
ZEXEL 159601-6120 1596016120
MITSUBISHI ME748335 me748335
159601-6120 ADJUSTING DEVICE
Rating:
11
Buy ADJUSTING DEVICE 159601-6120 zexel genuine, new aftermarket engine parts with delivery

Scheme ###:

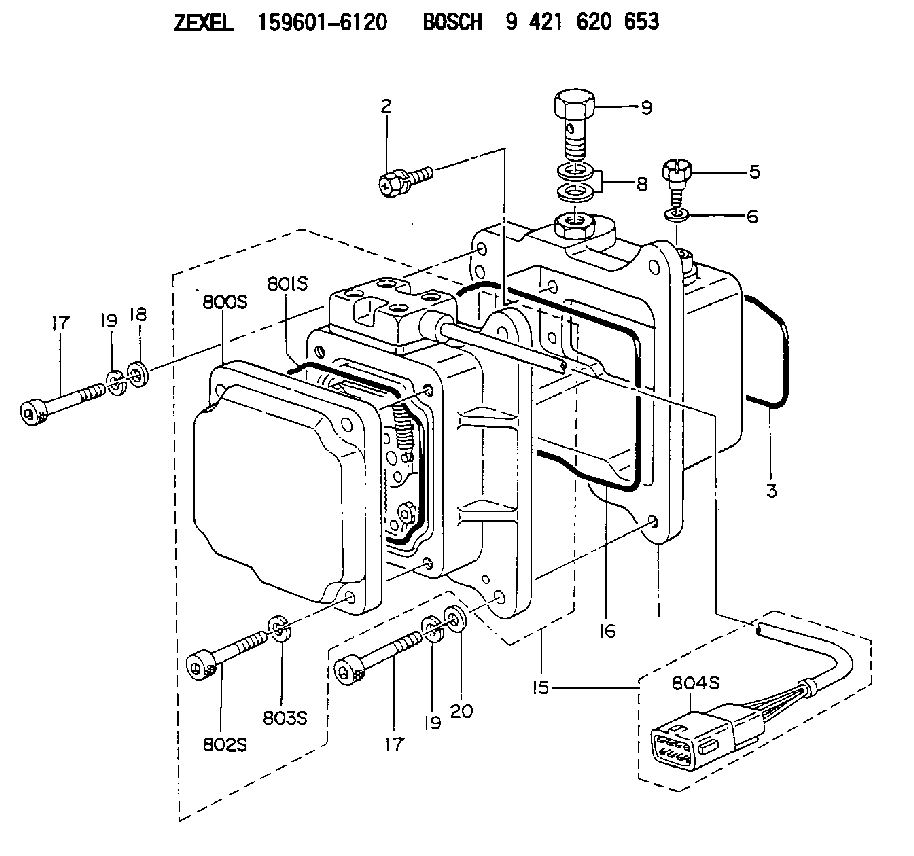

DIAPHRAGM HOUSING
1. [1] 159598-3620 DIAPHRAGM HOUSING
2. [6] 159596-2800 BLEEDER SCREW
3. [1] 159610-1400 SEAL RING
5. [1] 131420-0400 BLEEDER SCREW
6. [1] 026506-1040 GASKET D9.9&6.2T1
8. [2] 029341-4130 GASKET D20&13.8T2*
9. [1] 029731-4680 EYE BOLT
15. [1] 159605-5020 ACTUATOR
16. [1] 159610-1300 SEAL RING
17. [4] 010206-3040 HEX-SOCKET-HEAD CAP SCREW M6P1L30
17. [4] 010206-3040 HEX-SOCKET-HEAD CAP SCREW M6P1L30
18. [1] 139306-0400 PLAIN WASHER
19. [4] 029320-6010 LOCKING WASHER
19. [4] 029320-6010 LOCKING WASHER
20. [3] 159595-5700 PLAIN WASHER
800S. [1] 159595-8801 COVER
801S. [1] 159610-1200 SEAL RING
802S. [4] 010206-3040 HEX-SOCKET-HEAD CAP SCREW M6P1L30
803S. [4] 029320-6010 LOCKING WASHER
804S. [1] 159910-6800 PLUG HOUSING

Include in #1:

108622-2320 as _
108622-2340

Cross reference number

Zexel num
Bosch num
Firm num
Name
159601-6120
9 421 620 653
ME748335  MITSUBISHI
ADJUSTING DEVICE
K 74HA ACTUATOR ASSY FUN ACT




Information:

Problem
Some remanufactured fuel injection pumps have been built with the control solenoid in the wrong position. If the solenoid is in the wrong position, the wiring harness may be impossible to connect to the solenoid due to interference of other components.The affected fuel pump part numbers are:
10R-7659 Unit Injection Hydraulic Pump and Mounting Gp
10R-7660 Unit Injection Hydraulic Pump and Mounting Gp
10R-7661 Unit Injection Hydraulic Pump and Mounting Gp
10R-7662 Fuel Pump Gp
20R-3815 Fuel Injection Pump GpSolution
Illustration 1 g06120812
View of the top of the 10R-7661 Unit Injection Hydraulic Pump and Mounting Gp and 10R-7662 Fuel Pump Gp.
(X) Pump center line
(Y) Acceptable solenoid connector orientation (—30 degrees to 30 degrees from pump center line)
Illustration 2 g06120817
View of the top of the 10R-7659 Unit Injection Hydraulic Pump and Mounting Gp, 10R-7660 Unit Injection Hydraulic Pump and Mounting Gp, and 20R-3815 Fuel Injection Pump Gp.
(X) Pump center line
(Z) Acceptable solenoid connector orientation (15 degrees to 45 degrees from pump center line)Check the fuel injection pump solenoid position before attempting to install the pump. Refer to Illustration 1 and Illustration 2. If the orientation of the connector on the solenoid is not within the acceptable range, return the faulty pump and replace the pump with the same part number.Note: Do not attempt to disassemble the fuel injection pump to reposition the solenoid.
