159601-3820 ZEXEL 9 421 620 031 BOSCH ADJUSTING DEVICE 9421620031 1596013820 227101720a




Information adjusting device

BOSCH 9 421 620 031 9421620031
ZEXEL 159601-3820 1596013820
HINO 227101720A 227101720a
159601-3820 ADJUSTING DEVICE
Rating:
71
Buy ADJUSTING DEVICE 159601-3820 zexel genuine, new aftermarket engine parts with delivery

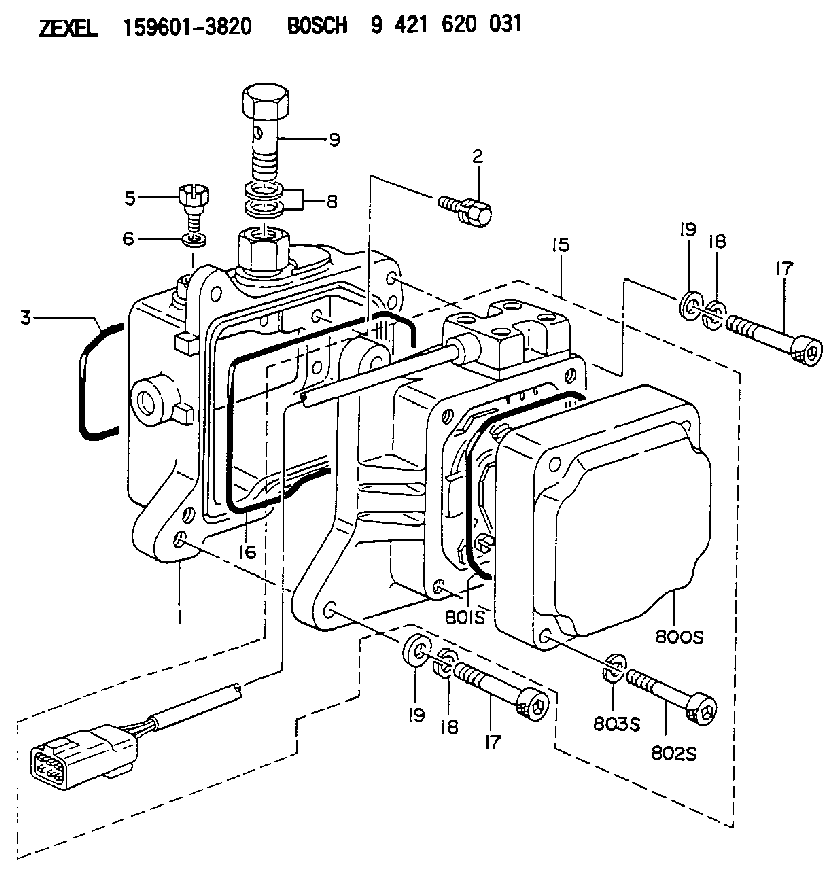

Scheme ###:

1. [1] 159598-1821 DIAPHRAGM HOUSING
2. [4] 159596-2800 BLEEDER SCREW
3. [1] 159596-1200 SEAL RING
5. [1] 131420-0400 BLEEDER SCREW
6. [1] 026506-1040 GASKET D9.9&6.2T1
8. [2] 139514-0300 GASKET
9. [1] 029731-4680 EYE BOLT
15. [1] 159605-3420 ACTUATOR
16. [1] 159596-1300 SEAL RING
17. [4] 010206-3040 HEX-SOCKET-HEAD CAP SCREW M6P1L30
17. [4] 010206-3040 HEX-SOCKET-HEAD CAP SCREW M6P1L30
18. [4] 029320-6010 LOCKING WASHER
18. [4] 029320-6010 LOCKING WASHER
19. [4] 139306-0400 PLAIN WASHER
19. [4] 139306-0400 PLAIN WASHER
800S. [1] 159595-8801 COVER
801S. [1] 159596-1400 SEAL RING
802S. [4] 010206-3040 HEX-SOCKET-HEAD CAP SCREW M6P1L30
803S. [4] 029320-6010 LOCKING WASHER

Include in #1:

Cross reference number

Zexel num
Bosch num
Firm num
Name
159601-3820
159601-3821
9 421 620 031
227101720A  HINO
ADJUSTING DEVICE
* K




Information:


Do not use a commercial coolant/antifreeze that only meets the ASTM "D3306" specification. This type of coolant/antifreeze is made for light duty automotive applications.Use only the coolant/antifreeze that is recommended.
Caterpillar recommends a 1:1 mixture of properly inhibited distilled or deionized water and glycol. This mixture will provide optimum heavy-duty performance as a coolant/antifreeze.Note: Cat DEAC does not require a treatment with an SCA at the initial fill. However, a commercial heavy-duty coolant/antifreeze that only meets "ASTM D4985", by specification, WILL require a treatment with an SCA at the initial fill. A commercial heavy-duty coolant/antifreeze that meets the "ASTM D6210" specification WILL NOT require a treatment with an SCA at the initial fill. Read the label or the instructions that are provided by the manufacturer of the commercial heavy-duty coolant/antifreeze.Note: When adding SCA at initial fill to a coolant/antifreeze that only meets the "ASTM D4985", ensure the SCA is compatible with the antifreeze/coolant. For example, a HOAT coolant that meets the "ASTM D4985" specification may not be compatible with an SCA designed for use with conventional coolants. It is the responsibility of the coolant manufacturer to provide sources of compatible SCAs. It is the responsibility of the coolant manufacturer and SCA manufacturer to demonstrate a positive influence on reducing cavitation corrosion in an operating diesel engine.Note: These coolants WILL require a treatment with a supplemental coolant additive on a maintenance basis.Note: When adding SCA at initial fill to a coolant/antifreeze that only meets the "ASTM D4985", it is a collective responsibility of the user, coolant manufacturer, and SCA manufacturer to ensure the SCA is compatible with the antifreeze/coolant based on the recommendations provided by the coolant manufacturer and SCA manufacturer. One of the test methods required to be used to help ensure SCA compatibility with the antifreeze/coolant concentrate is "ASTM D5828-97". 6% SCA in the solution that is 60 parts antifreeze/coolant of interest, 34 parts water, and 6 parts SCA must have no more than 0.1 mL of formed insolubles. 12% SCA in a solution that is 60 parts antifreeze/coolant of interest, 28 parts water, and 12 parts SCA must have no more than 2 mL of formed insolubles. The SCA manufacturer is responsible for ensuring their SCA is compatible with water meeting the "Caterpillar Minimum Acceptable Water Quality Requirements" as found in this Special Publication and as found in "ASTM D6210-06", Table X1.1.
All Cat diesel engines equipped with air-to-air aftercooling (ATAAC) require a minimum of 30 percent glycol in order to help prevent water pump cavitation.
Note: Refer to the engine Operation and Maintenance Manual for exceptions.
Table 1
Service Life Before Flushing and Before Refilling
Coolant     Service Life (1) (2) (3)
Cat ELC     965,606 kilometers (600,000 miles)
12000 hours
6 years (4)
Commercial coolant that meets the Caterpillar EC-1 specification
482,803 kilometers (300,000 miles)
6000 hours
6 years (5)
Cat DEAC
321,869 kilometers (200,000 miles)
3000 hours
3 years
Commercial Heavy-Duty Coolant/Antifreeze that meets "ASTM D4985" or "ASTM D6210"
241,402 kilometers (150,000 miles)
3000 hours
1 year

Have questions with 159601-3820?





Group cross 159601-3820 ZEXEL

Hino

159601-3820

159601-3821
9 421 620 031
227101720A
ADJUSTING DEVICE
9 421 621 284
227102100A
ADJUSTING DEVICE
