Information adjusting device
BOSCH
9 421 618 477
9421618477
ZEXEL
159601-2820
1596012820
MITSUBISHI
ME748122
me748122
Rating:

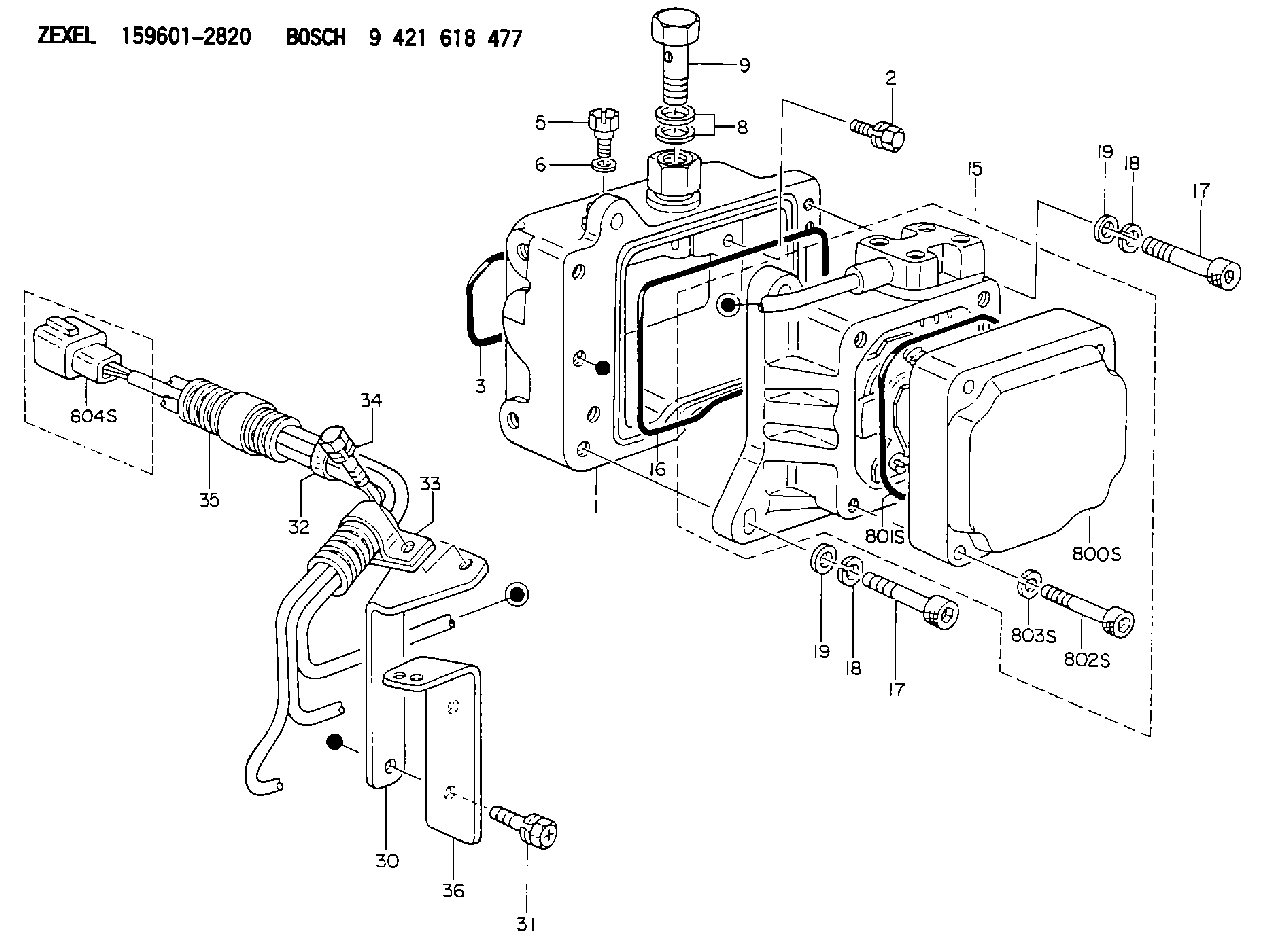

Scheme ###:
| 1. | [1] | 159598-2721 | DIAPHRAGM HOUSING |
| 2. | [4] | 159596-2800 | BLEEDER SCREW |
| 3. | [1] | 159610-0300 | SEAL RING |
| 5. | [1] | 131420-0400 | BLEEDER SCREW |
| 6. | [1] | 026506-1040 | GASKET D9.9&6.2T1 |
| 8. | [2] | 029341-4130 | GASKET D20&13.8T2* |
| 9. | [1] | 139814-0900 | EYE BOLT |
| 15. | [1] | 159605-2521 | ACTUATOR |
| 16. | [1] | 159610-0400 | SEAL RING |
| 17. | [4] | 010206-3040 | HEX-SOCKET-HEAD CAP SCREW M6P1L30 |
| 17. | [4] | 010206-3040 | HEX-SOCKET-HEAD CAP SCREW M6P1L30 |
| 18. | [4] | 029320-6010 | LOCKING WASHER |
| 18. | [4] | 029320-6010 | LOCKING WASHER |
| 19. | [4] | 139306-0400 | PLAIN WASHER |
| 19. | [4] | 139306-0400 | PLAIN WASHER |
| 30. | [1] | 159597-6901 | BRACKET |
| 31. | [2] | 020106-1440 | BLEEDER SCREW M6P1.0L14 |
| 32. | [4] | 159911-1100 | CLAMPING BAND |
| 33. | [1] | 159597-5000 | CLAMPING BAND |
| 34. | [1] | 020106-0840 | BLEEDER SCREW |
| 35. | [1] | 159900-7100 | TUBE |
| 36. | [1] | 159610-1100 | BRACKET |
| 800S. | [1] | 159595-9201 | COVER |
| 801S. | [1] | 159610-0600 | SEAL RING |
| 802S. | [4] | 010206-3040 | HEX-SOCKET-HEAD CAP SCREW M6P1L30 |
| 803S. | [4] | 029320-6010 | LOCKING WASHER |
| 804S. | [1] | 159910-6800 | PLUG HOUSING |
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Remove The Fan
Illustration 1 g00871386
(1) Cable (2) Fan (3) Guard (4) Screws (5) Filter (6) Cover
Disconnect the power to the monitor.
Remove cover (6) and remove filter (5) .
Remove guard (3) by removing screws (4) that hold guard (3) in place.
Remove the back cover of the monitor by removing the 8 screws that hold the back cover in place. Refer to Testing And Adjusting, "Cover - Remove" for details on removing the back cover.
Remove the two wire ties that secure the power wires around fan (2) .
Illustration 2 g00871408
CPU Board (7) Connector
Follow cable (1) and disconnect the connector from CPU board (7). Disconnect the connector by pulling on the connector. Do not pull on the wires.
Remove fan (2) from the monitor.Install The Fan
Connect the connector of cable (1) to the CPU board (7) .
Position fan (2) so that the power wires are routed above fan (2) .
Secure fan (2) and secure guard (3) with screws (4) .
Replace filter (5) and replace cover (6) .
Secure the power wires to fan (2) by using the wire ties.
Replace the back cover of the monitor by using the 8 screws.
