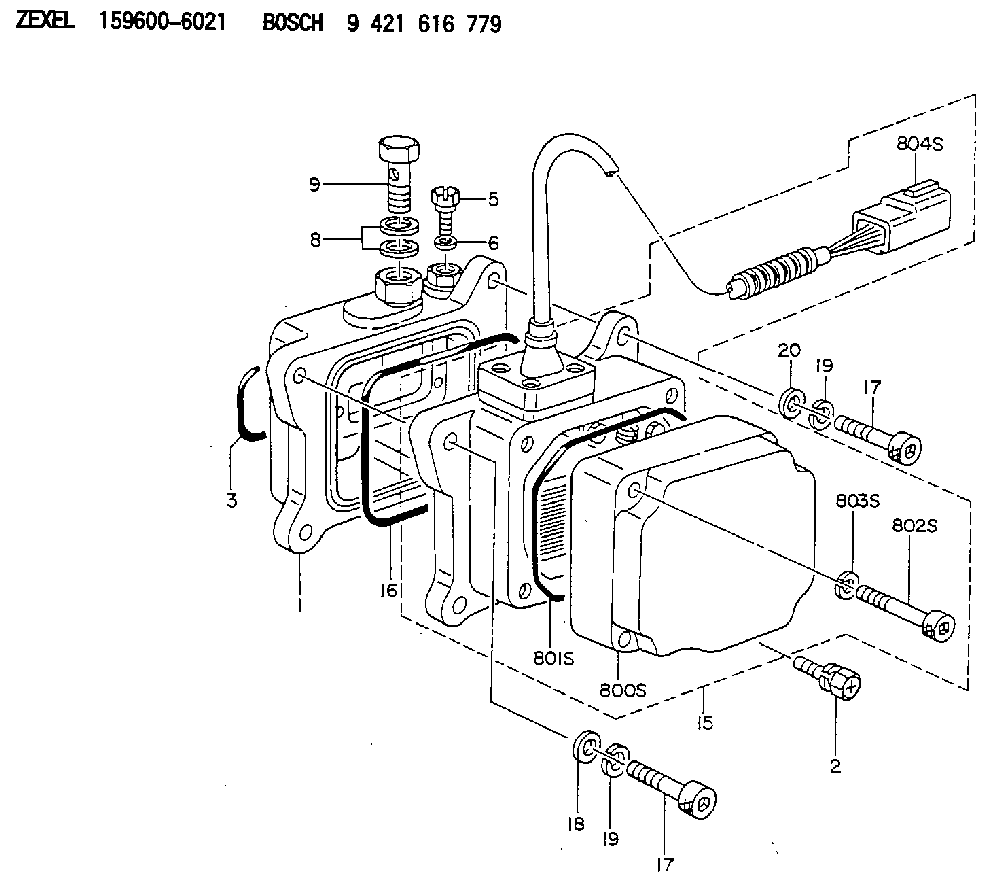

159600-6021 ZEXEL 9 421 616 779 BOSCH ADJUSTING DEVICE 9421616779 1596006021

TERMINATION DATE
31Oct2022
PROBLEM
The existing 6I-2358 Fuel Injector Pump can Leak out of one or both bushings on certain 3412C Generator Sets. If the existing fuel injector pump leaks oil it will run down the side of the engine.
AFFECTED PRODUCT
Model Identification Number
3412C DK600101, 579, 703, 816, 818, 820, 822-970, 972-1011, 1013-1022, 1024-1276, 1278-1286, 1372-1374, 1376-1473, 1475-1551, 1553, 1555-1559, 1561
PARTS NEEDED
Qty
Part Number Description
2 1S0004 SEAL-O-RING
1 2H3931 SEAL-O RING
1 4P7886 GASKET
1 6I0972 GASKET
1 8T9527 SEAL-O-RING
1 9Y6042 GASKET-OIL PUMP
1 9Y8058 GASKET
1 2109246 SEAL-O-RING
1 4202031 KIT-GASKET (F)
1 BULK_COOLANT ELC COOLANT - see OMM (Qty As Needed)
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 1% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Refer to Special Instruction, M0123519.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-4000 hrs,
0-12 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
4001-7000 hrs,
13-24 mo 50.0% 50.0% 0.0% 0.0% 50.0% 50.0%
This is a 6.0-hour job
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
