Information adjusting device
BOSCH
9 421 616 034
9421616034
ZEXEL
159600-3821
1596003821
MITSUBISHI
ME740808
me740808
Rating:

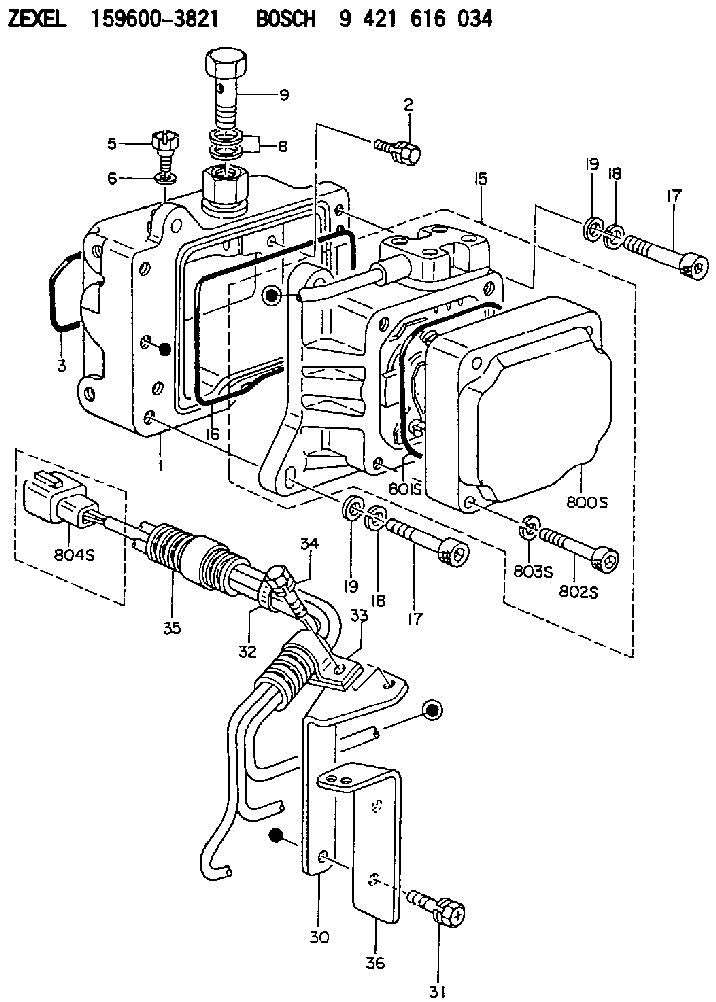

Scheme ###:
| 1. | [1] | 159598-2721 | DIAPHRAGM HOUSING |
| 2. | [4] | 159596-2800 | BLEEDER SCREW |
| 3. | [1] | 159596-1200 | SEAL RING |
| 5. | [1] | 131420-0400 | BLEEDER SCREW |
| 6. | [1] | 026506-1040 | GASKET D9.9&6.2T1 |
| 8. | [2] | 029341-4130 | GASKET D20&13.8T2* |
| 9. | [1] | 139814-0900 | EYE BOLT |
| 15. | [1] | 159604-5620 | ACTUATOR |
| 16. | [1] | 159596-1300 | SEAL RING |
| 17. | [4] | 010206-3040 | HEX-SOCKET-HEAD CAP SCREW M6P1L30 |
| 17. | [4] | 010206-3040 | HEX-SOCKET-HEAD CAP SCREW M6P1L30 |
| 18. | [4] | 029320-6010 | LOCKING WASHER |
| 18. | [4] | 029320-6010 | LOCKING WASHER |
| 19. | [4] | 139306-0400 | PLAIN WASHER |
| 19. | [4] | 139306-0400 | PLAIN WASHER |
| 30. | [1] | 159597-6900 | BRACKET |
| 31. | [2] | 020106-1440 | BLEEDER SCREW M6P1.0L14 |
| 32. | [4] | 159911-1100 | CLAMPING BAND |
| 33. | [1] | 159597-5000 | CLAMPING BAND |
| 34. | [1] | 020106-0840 | BLEEDER SCREW |
| 35. | [1] | 159900-7100 | TUBE |
| 36. | [1] | 159597-6800 | BRACKET |
| 800S. | [1] | 159595-9201 | COVER |
| 801S. | [1] | 159596-1400 | SEAL RING |
| 802S. | [4] | 010206-3040 | HEX-SOCKET-HEAD CAP SCREW M6P1L30 |
| 803S. | [4] | 029320-6010 | LOCKING WASHER |
| 804S. | [1] | 159910-6800 | PLUG HOUSING |
