159600-3521 ZEXEL 9 421 613 632 BOSCH ADJUSTING DEVICE 9421613632 1596003521 me740609




Information adjusting device

BOSCH 9 421 613 632 9421613632
ZEXEL 159600-3521 1596003521
MITSUBISHI ME740609 me740609
159600-3521 ADJUSTING DEVICE
Rating:
38
Buy ADJUSTING DEVICE 159600-3521 zexel genuine, new aftermarket engine parts with delivery

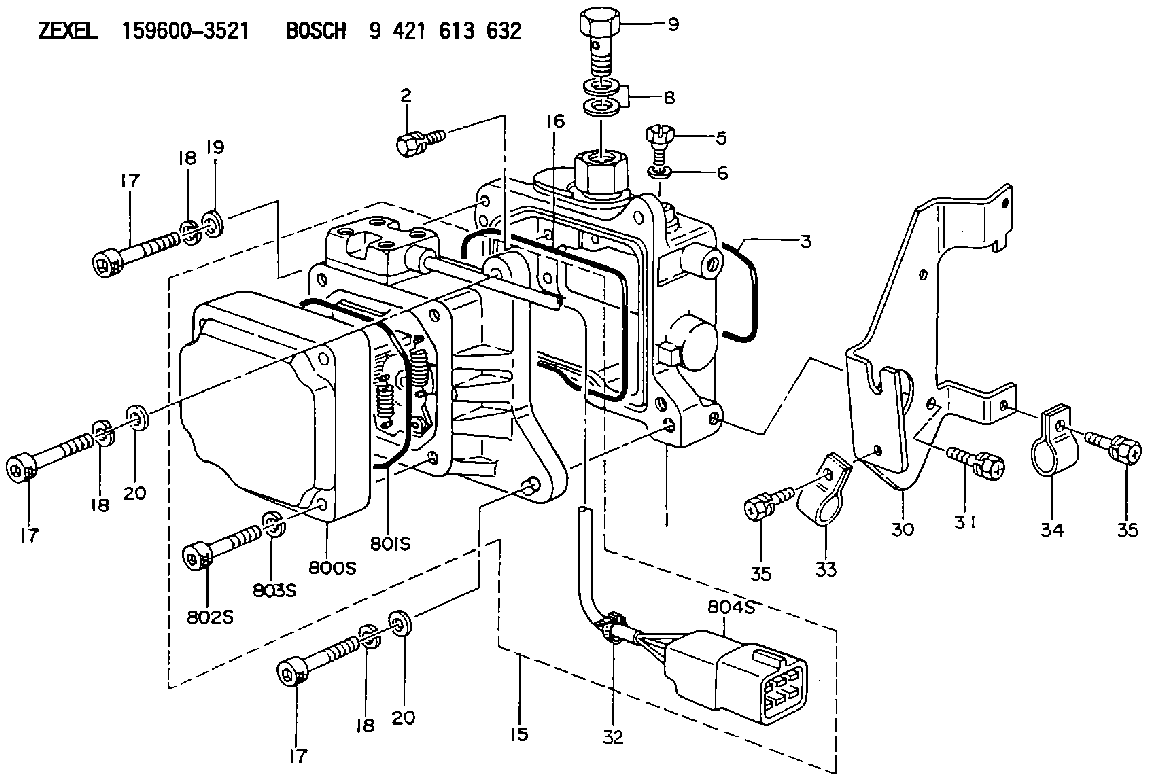

Scheme ###:

1. [1] 159595-8521 DIAPHRAGM HOUSING
2. [4] 159596-2800 BLEEDER SCREW
3. [1] 159596-1200 SEAL RING
5. [1] 131420-0400 BLEEDER SCREW
6. [1] 026506-1040 GASKET
8. [2] 029341-4130 GASKET
9. [1] 139814-0900 EYE BOLT
15. [1] 159604-4821 ACTUATOR
16. [1] 159596-1300 SEAL RING
17. [4] 010206-3040 HEX-SOCKET-HEAD CAP SCREW
17. [4] 010206-3040 HEX-SOCKET-HEAD CAP SCREW
17. [4] 010206-3040 HEX-SOCKET-HEAD CAP SCREW
18. [4] 029320-6010 LOCKING WASHER
18. [4] 029320-6010 LOCKING WASHER
18. [4] 029320-6010 LOCKING WASHER
19. [1] 139306-0400 PLAIN WASHER
20. [3] 159595-5700 PLAIN WASHER
20. [3] 159595-5700 PLAIN WASHER
30. [1] 159596-3121 BRACKET
31. [2] 020006-1440 BLEEDER SCREW
32. [1] 159911-1100 CLAMPING BAND
33. [1] 159597-8100 CLAMPING BAND
34. [1] 159597-8200 CLAMPING BAND
35. [2] 020106-1240 BLEEDER SCREW
35. [2] 020106-1240 BLEEDER SCREW
800S. [1] 159595-8801 COVER
801S. [1] 159596-1400 SEAL RING
802S. [4] 010206-3040 HEX-SOCKET-HEAD CAP SCREW
803S. [4] 029320-6010 LOCKING WASHER
804S. [1] 159910-6800 PLUG HOUSING

Cross reference number

Zexel num
Bosch num
Firm num
Name
159600-3521
159600-3522
9 421 613 632
ME740609  MITSUBISHI
ADJUSTING DEVICE
* K




Information:

(4) VOP (Valve Opening Pressure) Test A. Open the gauge protector valve [0-34500 kPa (0-5000 psi) gauge].B. Increase the pressure until test oil flows from the nozzle tip.C. Write down the VOP. (5) Pressure Loss Test A. Increase the pressure to 690 kPa (100 psi) less than the VOP.B. Close the pump isolator valve (6).C. Use the gauge protector valve (3), [0-34500 kPa (0-5000 psi) gauge] to adjust pressure to 690 kPa (100 psi) less than the VOP.D. After 30 seconds, write down the pressure loss. (6) Adjustment of Valve Opening Pressure If spray characteristics are satisfactory, adjust the valve unseating pressure: Use 7B2591 Cap Wrench (7) to remove the cap. Remove lift screw locknut (8) and loosen lift adjustment screw (9) approximately three turns, so it does not interfere with the pressure adjustment. Loosen pressure adjustment locknut (10).E. Install the nozzle on the 5P4150 Nozzle Tester. F. Use 7B2601 Wrench (11) and adjust the VOP. G. Remove the valve from the nozzle tester and put it in a vise. Install lift adjustment screw locknut (8).H. Use the 6B1655 Wrench to turn lift adjusting screw (9) down lightly against the stem of the fuel valve spring.I. Clamp the needle lift adjustment fixture to the fuel valve body.J. Use a thickness gauge and adjust screw (12) until there is a clearance of 0.43 (.017") between screw (12) and lift adjustment screw (9).K. Hold screw (12) in position with clamping screw (13).L. Remove the thickness gauge and loosen lift adjustment screw (9) until there is 0.3 (.010") clearance between screw (9) and screw (12), after lift screw locknut (8) is tightened with the 7B2587 Wrench. The correct needle lift setting for all valves is 0.177 (.007").Cleaning Needle, Nozzle And Nozzle End Of Flat Seat Valves (Except 1P1795 Master Valves)
(1) Remove cap (1), bonnet (2) or unseating pressure adjusting screw, spring retainer, spring (3) and spring stem (4). Put the correct needle extracting tool (5) through the valve body and tighten over the end of the needle. If the needle is tight, install a new valve service group, or disassemble and clean the valve according to the procedure that follows. (2) If a fuel valve has a chip of scale, metal or foreign material on the seat, this will prevent the needle, from seating on the spray valve nozzle end, and cause the inner surface of the nozzle end and the needle end to become coated with carbon. Put carbon scraper (6) in the needle extracting tool and insert it into the nozzle bore and against the nozzle end; carefully turn the tool one revolution, with a slight pressure to remove the carbon. The cutting surface of scraper (6) has been lapped as perfectly flat and square with the center line of the tool as possible. Unless it remains so, it cannot effectively remove carbon. Handle this tool with care. Two scrapers are provided, so if one becomes marred, the second can be used while another is being obtained.

Have questions with 159600-3521?





Group cross 159600-3521 ZEXEL

Mitsubishi


ME740330
ADJUSTING DEVICE
159600-3521

159600-3522
9 421 613 632
ME740609
ADJUSTING DEVICE
F 019 Z8E 990
ME755452
ADJUSTING DEVICE
F 019 Z1F 946
ME756522
ADJUSTING DEVICE
