Information adjusting device
BOSCH
9 421 618 476
9421618476
ZEXEL
159590-7220
1595907220
MITSUBISHI
ME731651
me731651
Rating:

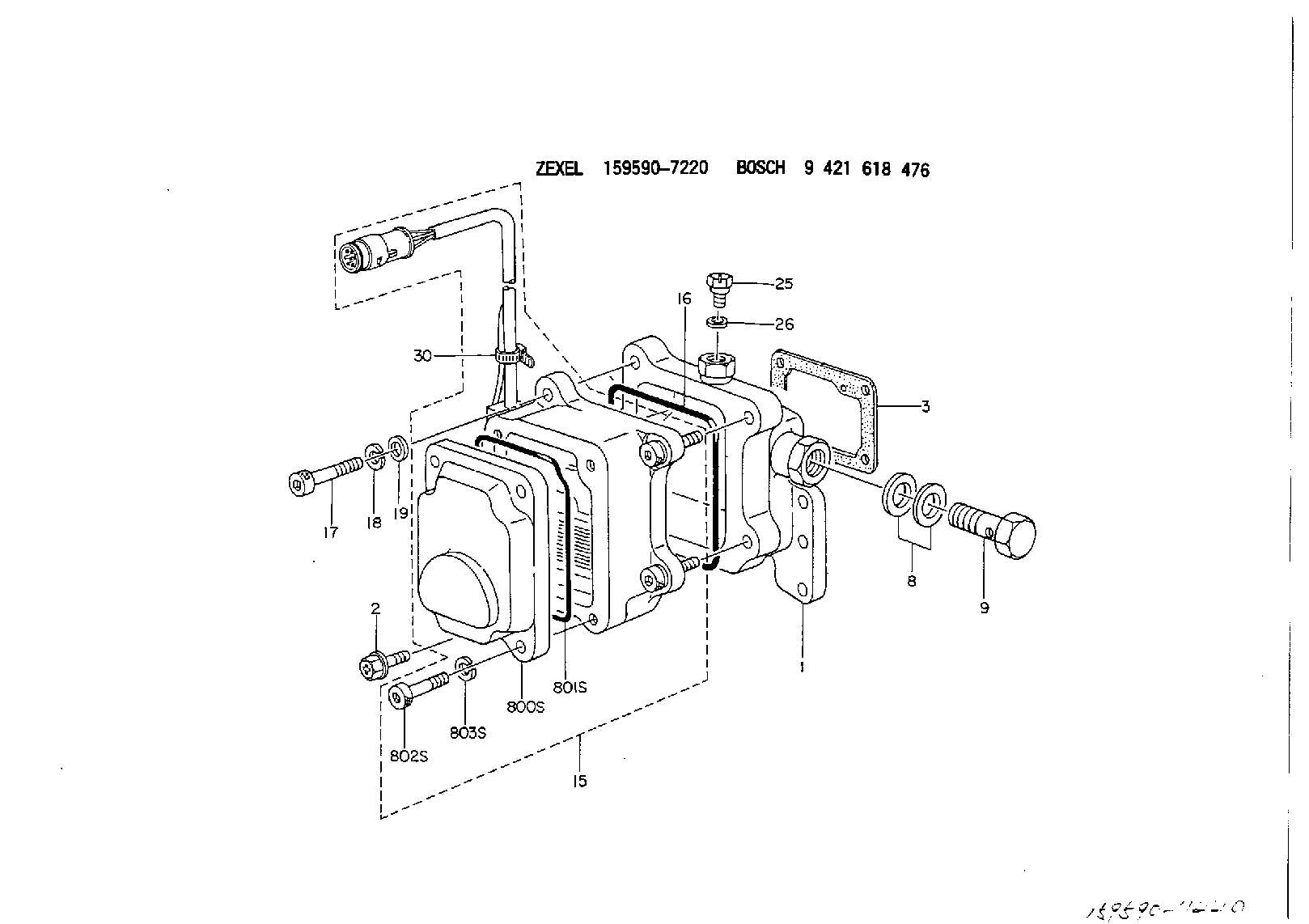

Scheme ###:
| 1. | [1] | 159595-0820 | DIAPHRAGM HOUSING |
| 2. | [5] | 159593-5800 | BLEEDER SCREW |
| 3. | [1] | 159596-5400 | GASKET |
| 8. | [2] | 029341-4130 | GASKET D20&13.8T2* |
| 9. | [1] | 029731-4680 | EYE BOLT |
| 15. | [1] | 159594-8220 | ACTUATOR |
| 16. | [1] | 159597-4700 | SEAL RING |
| 17. | [4] | 010206-2540 | HEX-SOCKET-HEAD CAP SCREW M6P1L25 |
| 18. | [4] | 029320-6010 | LOCKING WASHER |
| 19. | [4] | 139306-0400 | PLAIN WASHER |
| 25. | [1] | 131420-0400 | BLEEDER SCREW |
| 26. | [1] | 026506-1040 | GASKET D9.9&6.2T1 |
| 30. | [3] | 159911-1100 | CLAMPING BAND |
| 800S. | [1] | 159593-5500 | GOVERNOR COVER |
| 801S. | [1] | 159596-0100 | SEAL RING |
| 802S. | [4] | 010206-2540 | HEX-SOCKET-HEAD CAP SCREW M6P1L25 |
| 803S. | [4] | 029320-6010 | LOCKING WASHER |
Cross reference number
Zexel num
Bosch num
Firm num
Name
