159590-6620 ZEXEL 9 421 617 996 BOSCH ADJUSTING DEVICE 9421617996 1595906620




Information adjusting device

BOSCH 9 421 617 996 9421617996
ZEXEL 159590-6620 1595906620
159590-6620 ADJUSTING DEVICE
Rating:
76
Buy ADJUSTING DEVICE 159590-6620 zexel genuine, new aftermarket engine parts with delivery

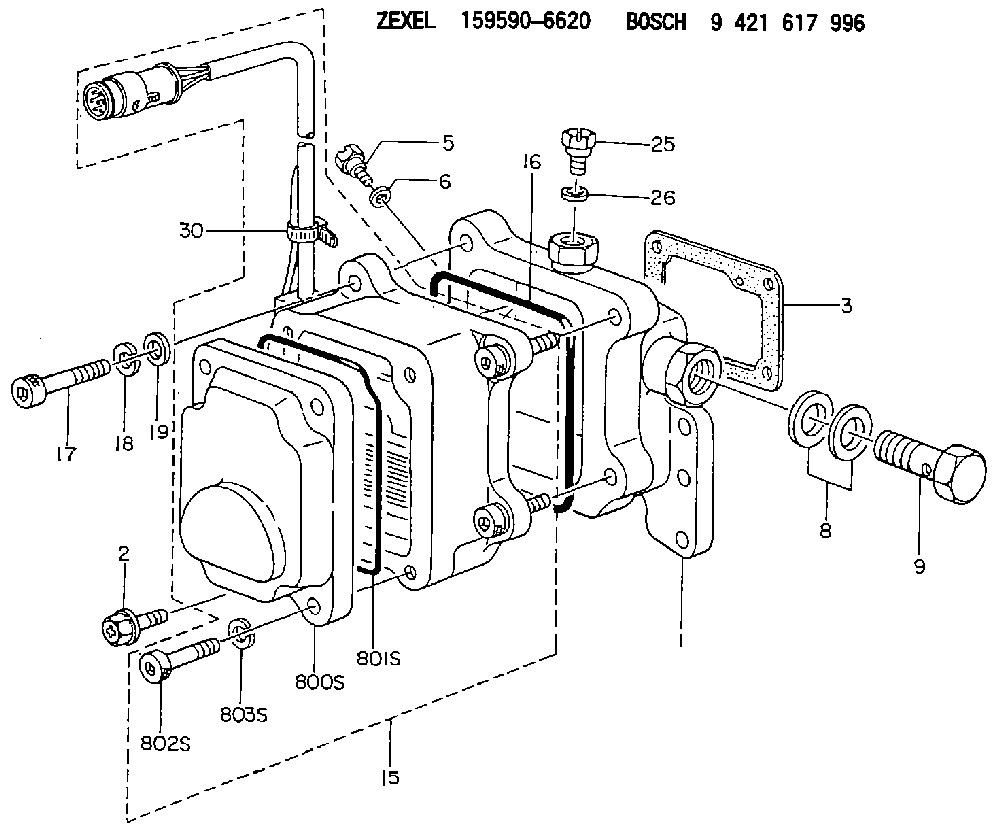

Scheme ###:

1. [1] 159593-5720 DIAPHRAGM HOUSING
2. [5] 159593-5800 BLEEDER SCREW
3. [1] 159596-5400 GASKET
5. [1] 131420-0400 BLEEDER SCREW
6. [1] 026506-1040 GASKET D9.9&6.2T1
8. [2] 139514-0300 GASKET
9. [1] 029731-4680 EYE BOLT
15. [1] 159594-7620 ACTUATOR
16. [1] 159595-9400 SEAL RING
17. [5] 010206-2540 HEX-SOCKET-HEAD CAP SCREW M6P1L25
18. [5] 029320-6010 LOCKING WASHER
19. [5] 139306-0400 PLAIN WASHER
25. [1] 131420-0400 BLEEDER SCREW
26. [1] 026506-1040 GASKET D9.9&6.2T1
30. [0] 159911-1100 CLAMPING BAND
800S. [1] 159593-5500 GOVERNOR COVER
801S. [1] 159595-9500 SEAL RING
802S. [4] 010206-2540 HEX-SOCKET-HEAD CAP SCREW M6P1L25
803S. [4] 029320-6010 LOCKING WASHER

Cross reference number

Zexel num
Bosch num
Firm num
Name
159590-6620
159590-6621
9 421 617 996

ADJUSTING DEVICE
* K
159590-6620
159590-6621
9 421 617 996
227101060A  HINO
ADJUSTING DEVICE
A * K




Information:

Check Oil Level
The vehicle must be parked on a level surface to perform this maintenance procedure.
1. Check the oil level with the engine stopped. 2. Maintain the oil level between the ADD and FULL marks in the FULL RANGE zone on the ENGINE STOPPED side of the dipstick. Do not fill the crankcase above the FULL RANGE zone. Operating your engine when the oil level is above the FULL RANGE zone could cause your crankshaft to dip into the oil. If this happens, the air bubbles created from the crankshaft dipping into the oil will reduce the lubricating characteristics of your oil and would result in the loss of power.If the dipstick does not have a FULL mark in the FULL RANGE zone, refer to calibrating the oil level gauge in the Dipsticks section of this manual or consult your Caterpillar dealer before operating the engine. 3. Add oil if necessary. See Refill Capacities and Lubricant Specifications for the size of your engine crankcase and proper oil to use. Remote mounted or auxiliary filters require additional oil. For all information pertaining to auxiliary filters, refer to the OEM or manufacturer's instructions.Leaks and Loose Connections
Inspect the Engine
For maximum service life of your truck engine, make a thorough under the hood inspection before starting the engine. Look for such items as oil or coolant leaks, loose bolts, worn fan belts, loose connections and trash build-up. Remove trash build-up and have repairs made as needed.Keep a close watch for leaks. If leaking is observed, find the source and correct the leak. If leaking is suspected, check the fluid levels more frequently than the recommended intervals prescribed in this publication. Continue monitoring fluid levels until a leak is found and fixed, or until the suspicion for a leak has been proven to be unwarranted.* Wipe all fittings, caps and plugs before servicing. * Inspect the radiator for leaks and trash build-up. * Inspect the radiator hoses for cracks and loose clamps. * Inspect the fan and accessory drive belts for cracks, breaks or other damage.Belts for multiple groove pulleys must be replaced as matched sets. If only one belt of a 2 or 3 belt set is replaced, it will carry more of a load than the belts not replaced since the older belts are stretched. The additional load on the new belt could cause it to break. * Inspect the water pump for leaks. Check weep hole for water pump breather filter, 4N1400 (1), blockage and replace if necessary. * Inspect the engine for oil leaks, such as front and rear crankshaft seals, oil pan, oil filters and valve covers. * Inspect the fuel system for leaks, loose fuel line clamps and fittings and loose or worn hoses. * Inspect wiring for loose connections and worn or frayed wires.* Inspect air intake system hoses and elbows for cracks and loose clamps. * Inspect engine-to-frame ground strap for good connection and condition.* All guards must be in place. Repair or replace missing

Have questions with 159590-6620?





Group cross 159590-6620 ZEXEL

159590-6620

159590-6621
9 421 617 996

ADJUSTING DEVICE

Hino

159590-6620

159590-6621
9 421 617 996
227101060A
ADJUSTING DEVICE
9 421 614 603

ADJUSTING DEVICE
