Information adjusting device
BOSCH
F 019 Z3E 406
f019z3e406
ZEXEL
159590-5021
1595905021
Rating:

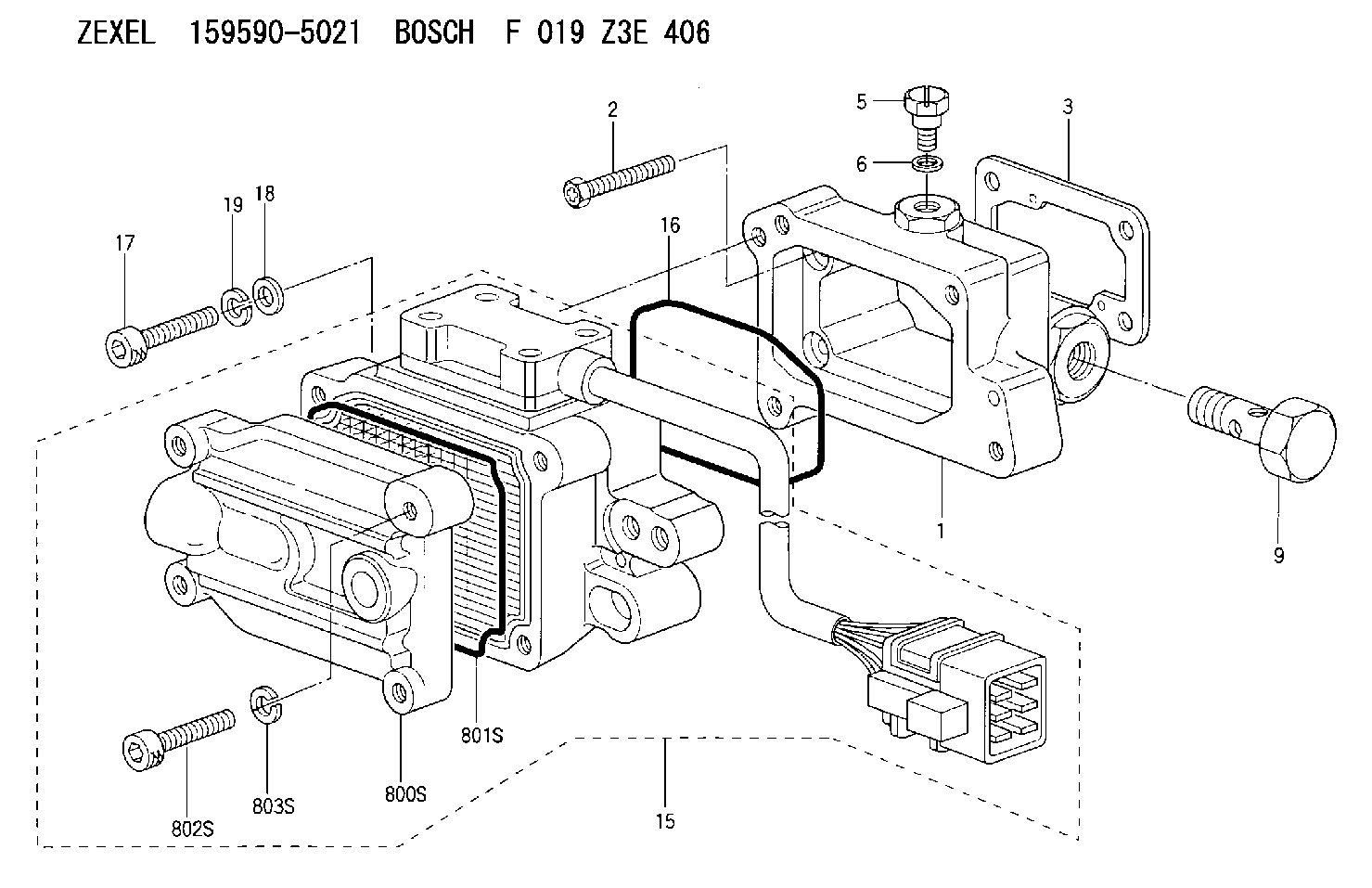

Scheme ###:
| 1. | [1] | 159591-1520 | DIAPHRAGM HOUSING |
| 2. | [4] | 139006-5200 | BLEEDER SCREW |
| 3. | [1] | 159596-5200 | GASKET |
| 5. | [1] | 131420-0400 | BLEEDER SCREW |
| 6. | [1] | 026506-1040 | GASKET D9.9&6.2T1 |
| 9. | [1] | 029731-4680 | EYE BOLT |
| 15. | [1] | 159594-6421 | ACTUATOR |
| 16. | [1] | 159596-1600 | SEAL RING |
| 17. | [4] | 010206-2540 | HEX-SOCKET-HEAD CAP SCREW M6P1L25 |
| 18. | [4] | 139306-0400 | PLAIN WASHER |
| 19. | [4] | 029320-6010 | LOCKING WASHER |
| 800S. | [1] | 159591-1600 | GOVERNOR COVER |
| 801S. | [1] | 159596-0000 | SEAL RING |
| 802S. | [4] | 010206-2540 | HEX-SOCKET-HEAD CAP SCREW M6P1L25 |
| 803S. | [4] | 029320-6010 | LOCKING WASHER |
Include in #1:
106672-0062
as _
Cross reference number
Zexel num
Bosch num
Firm num
Name
159590-5021
F 019 Z3E 406
ADJUSTING DEVICE
K 14GJ ACTUATOR ASSY GOV
K 14GJ ACTUATOR ASSY GOV
Information:
Caterpillar Reference Material
Lubricants
Oil and Your Engine SEBD0640Scheduled Oil Sampling PEDP1129Branded Fluids Question & Answer Booklet PEDP7122Cat Fluids - Molybdenum Grease (MPGM) PEHP0002Cat Fluids - Lithium Grease (MPGL) PEHP0003Cat Fluids - Special Purpose Grease (SPG) PEHP0017How to Take a Good Oil Sample PEHP6001Caterpillar Fluids Selector Dial PEWP9733Fuels
Diesel Fuels and Your Engine SEBD0717Coolants
Know Your Cooling System SEBD0518Coolant and Your Engine SEBD0970Service Manuals
3408 & 3412 Service Manual (9XM & 9XF) SENR4655Engine Supervisory System Operation Manual SEBU6260Special Instructions
The following Special Instructions pertain to the operation, maintenance, diagnostic tooling and programming of the Electronic system. Some of these publications will be included in the tool kits, the others will be available thru your Caterpillar dealer.Storage Procedure for Caterpillar Products SEHS9031Miscellaneous
Index to Guidelines for Reusable Parts and Salvage Operations SEBF8029Guideline for Reusable Parts (Cleaning and Inspection of Air Filters) SEBF8062Tag - DO NOT OPERATE SEHS7332All of the above publications are available through your Caterpillar dealer.Additional Reference Material
ASTM Specs can normally be obtained from your local technological society, library or college or contacting:* American Society for Testing and Materials
1916 Race St.
Philadelphia, PA 19103
(215) 299-5400
Society of Automotive Engineers (SAE) Specs can be found in your SAE handbook or can be obtained from your local library, college or technological society, or contacting:* Society of Automotive Engineers, Inc.
SAE International
400 Commonwealth Drive
Warrendale, PA USA 15096-0001
(412) 776-4841
American Petroleum Institute (API) classification system and oil selection for API Publication No. 1509 can be obtained from your local library, college or technological society, or contact:* American Petroleum Institute
1220 L St.
Washington, DC 20005
(202) 682-8000
Engine Manufacturers Association (EMA) information for lube oil selection can be obtained from your local library, college or technological society, or contact:* Engine Manufacturers Association
Lubricating Oils Data Book
401 N. Michigan Ave. Ste. 2400
Chicago, IL 60611
(312) 644-6610 ext. 3626
Lubricants
Oil and Your Engine SEBD0640Scheduled Oil Sampling PEDP1129Branded Fluids Question & Answer Booklet PEDP7122Cat Fluids - Molybdenum Grease (MPGM) PEHP0002Cat Fluids - Lithium Grease (MPGL) PEHP0003Cat Fluids - Special Purpose Grease (SPG) PEHP0017How to Take a Good Oil Sample PEHP6001Caterpillar Fluids Selector Dial PEWP9733Fuels
Diesel Fuels and Your Engine SEBD0717Coolants
Know Your Cooling System SEBD0518Coolant and Your Engine SEBD0970Service Manuals
3408 & 3412 Service Manual (9XM & 9XF) SENR4655Engine Supervisory System Operation Manual SEBU6260Special Instructions
The following Special Instructions pertain to the operation, maintenance, diagnostic tooling and programming of the Electronic system. Some of these publications will be included in the tool kits, the others will be available thru your Caterpillar dealer.Storage Procedure for Caterpillar Products SEHS9031Miscellaneous
Index to Guidelines for Reusable Parts and Salvage Operations SEBF8029Guideline for Reusable Parts (Cleaning and Inspection of Air Filters) SEBF8062Tag - DO NOT OPERATE SEHS7332All of the above publications are available through your Caterpillar dealer.Additional Reference Material
ASTM Specs can normally be obtained from your local technological society, library or college or contacting:* American Society for Testing and Materials
1916 Race St.
Philadelphia, PA 19103
(215) 299-5400
Society of Automotive Engineers (SAE) Specs can be found in your SAE handbook or can be obtained from your local library, college or technological society, or contacting:* Society of Automotive Engineers, Inc.
SAE International
400 Commonwealth Drive
Warrendale, PA USA 15096-0001
(412) 776-4841
American Petroleum Institute (API) classification system and oil selection for API Publication No. 1509 can be obtained from your local library, college or technological society, or contact:* American Petroleum Institute
1220 L St.
Washington, DC 20005
(202) 682-8000
Engine Manufacturers Association (EMA) information for lube oil selection can be obtained from your local library, college or technological society, or contact:* Engine Manufacturers Association
Lubricating Oils Data Book
401 N. Michigan Ave. Ste. 2400
Chicago, IL 60611
(312) 644-6610 ext. 3626
