105955-0130 ZEXEL F 019 Z3E 181 BOSCH ACTUATOR f019z3e181 1059550130

Information actuator

BOSCH F 019 Z3E 181 f019z3e181

ZEXEL 105955-0130 1059550130

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ACTUATOR 105955-0130 zexel genuine, new aftermarket engine parts with delivery

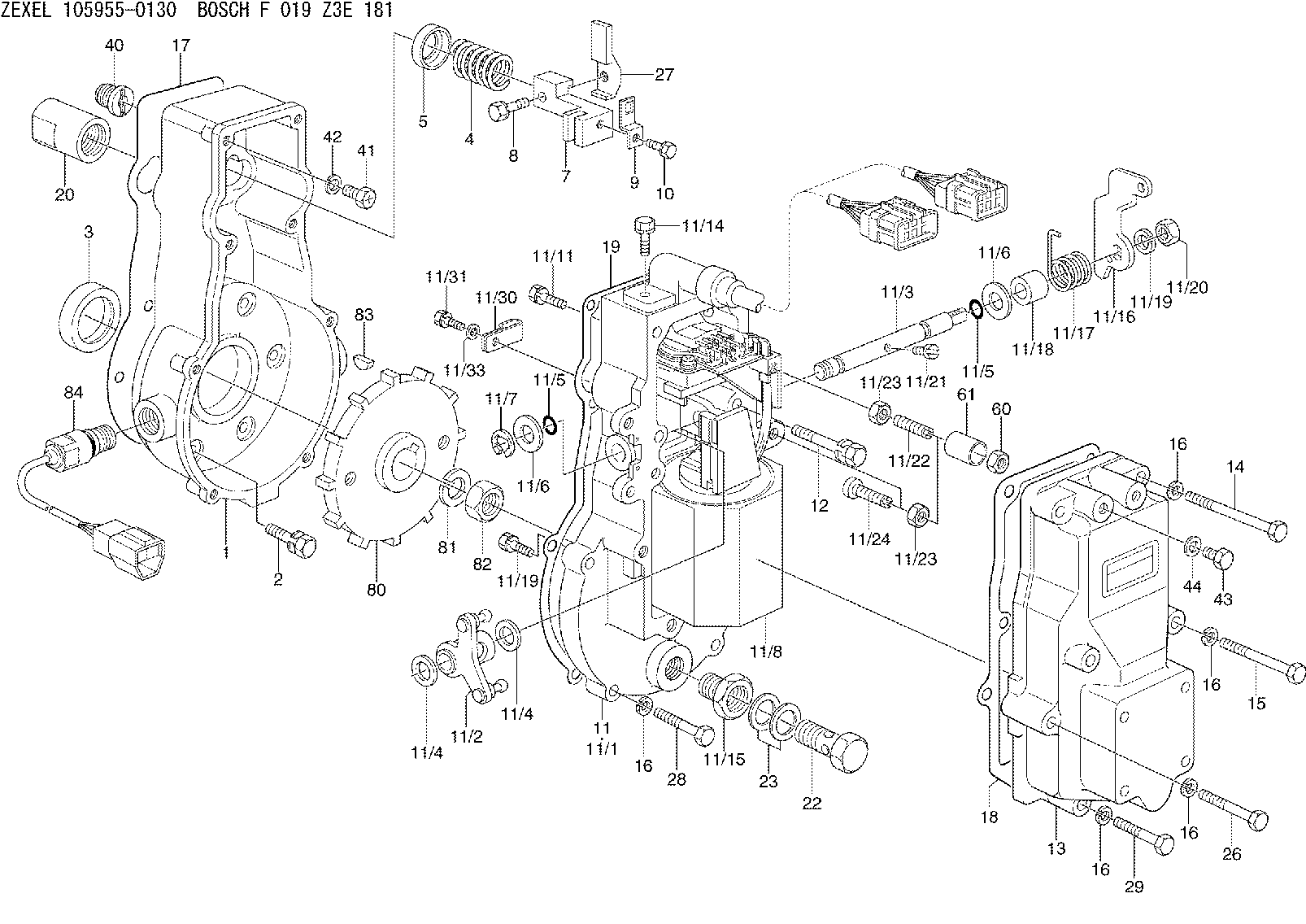

Scheme ###:

1.	[1]	159570-0700	GOVERNOR HOUSING
2.	[6]	020118-2840	BLEEDER SCREW
3.	[1]	029622-5190	PACKING RING
4.	[1]	159574-0100	COILED SPRING
5.	[1]	153400-0200	SLOTTED WASHER
7.	[1]	159574-0200	CONNECTOR
8.	[1]	020106-2040	BLEEDER SCREW
9.	[1]	159564-0504	PLATE
9B.	[1]	159584-5203	PLATE
9C.	[1]	159564-6503	PLATE
10.	[1]	020105-0840	BLEEDER SCREW
11.	[1]	159580-1120	ACTUATOR
11/1.	[1]	159572-0020	PLATE;GOV.
11/2.	[1]	159573-3020	STRAP
11/3.	[1]	159563-1700	LEVER SHAFT
11/4.	[2]	029311-0170	SHIM
11/5.	[2]	016500-0710	O-RING
11/6.	[2]	014011-0140	PLAIN WASHER
11/7.	[1]	016010-0940	LOCKING WASHER
11/8.	[1]	159573-0021	LINEAR DC MOTOR
11/9.	[4]	139006-9100	BLEEDER SCREW
11/11.	[4]	020105-2040	BLEEDER SCREW
11/14.	[2]	020106-1440	BLEEDER SCREW
11/15.	[1]	133002-1300	ADAPTOR
11/16.	[1]	159573-2000	CONTROL LEVER
11/17.	[1]	159584-2800	COILED SPRING
11/18.	[1]	159563-1800	BUSHING
11/19.	[1]	014110-8440	LOCKING WASHER D15.4&8.2T2
11/20.	[1]	013030-8140	UNION NUT
11/21.	[1]	159563-1000	FLAT-HEAD SCREW
11/22.	[1]	139006-9800	FLAT-HEAD SCREW
11/23.	[2]	013020-6040	UNION NUT
11/30.	[1]	159573-1800	CLAMPING BAND
11/31.	[1]	020104-0640	BLEEDER SCREW
11/33.	[1]	014010-4140	PLAIN WASHER
11/34.	[1]	139006-9900	FLAT-HEAD SCREW
12.	[2]	010006-6040	BLEEDER SCREW
13.	[1]	159561-1900	GOVERNOR COVER
14.	[2]	010006-4040	BLEEDER SCREW
15.	[2]	010006-6040	BLEEDER SCREW
16.	[14]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
17.	[1]	159574-0800	GASKET
18.	[1]	154390-0400	GASKET
19.	[1]	159574-0900	GASKET
20.	[1]	155404-1400	CAP
22.	[1]	029731-4680	EYE BOLT
23.	[2]	029341-4130	GASKET
26.	[2]	159574-0600	BLEEDER SCREW
27.	[1]	159574-0500	PLATE
28.	[4]	010006-2840	BLEEDER SCREW
29.	[2]	010006-3840	BLEEDER SCREW
40.	[1]	154007-3600	ADAPTOR
41.	[1]	010038-1840	BLEEDER SCREW
42.	[1]	014110-8440	LOCKING WASHER D15.4&8.2T2
43.	[1]	029110-6020	CAPSULE
44.	[1]	026506-1040	GASKET
60.	[2]	013020-6040	UNION NUT
61.	[2]	159586-8400	SLIDING PIECE
80.	[1]	159574-1500	TOOTHED GEAR
81.	[1]	014111-8420	LOCKING WASHER
82.	[1]	013131-8120	UNION NUT
83.	[1]	025805-1910	WOODRUFF KEY
84.	[1]	479748-2020	PULSE GENERATOR

Include in #1:

103682-0551 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105955-0130

F 019 Z3E 181

ACTUATOR
K

Information:

Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 1*******
0-4000 hrs,
0-36 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
4001-6000 hrs,
37-48 mo 33.0% 50.0% 0.0% 0.0% 50.0% 50.0%
This is a 12.0-hour job for Group 1
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 2*******
0-4000 hrs,
0-36 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
4001-6000 hrs,
37-48 mo 33.0% 50.0% 0.0% 0.0% 50.0% 50.0%
This is a 20.0-hour job for Group 2
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 3*******
0-4000 hrs,
0-36 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
4001-6000 hrs,
37-48 mo 33.0% 50.0% 0.0% 0.0% 50.0% 50.0%
This is a 15.0-hour job for Group 3
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
