Information actuator
BOSCH
F 019 Z9E 473
f019z9e473
ZEXEL
105952-2950
1059522950

Rating:

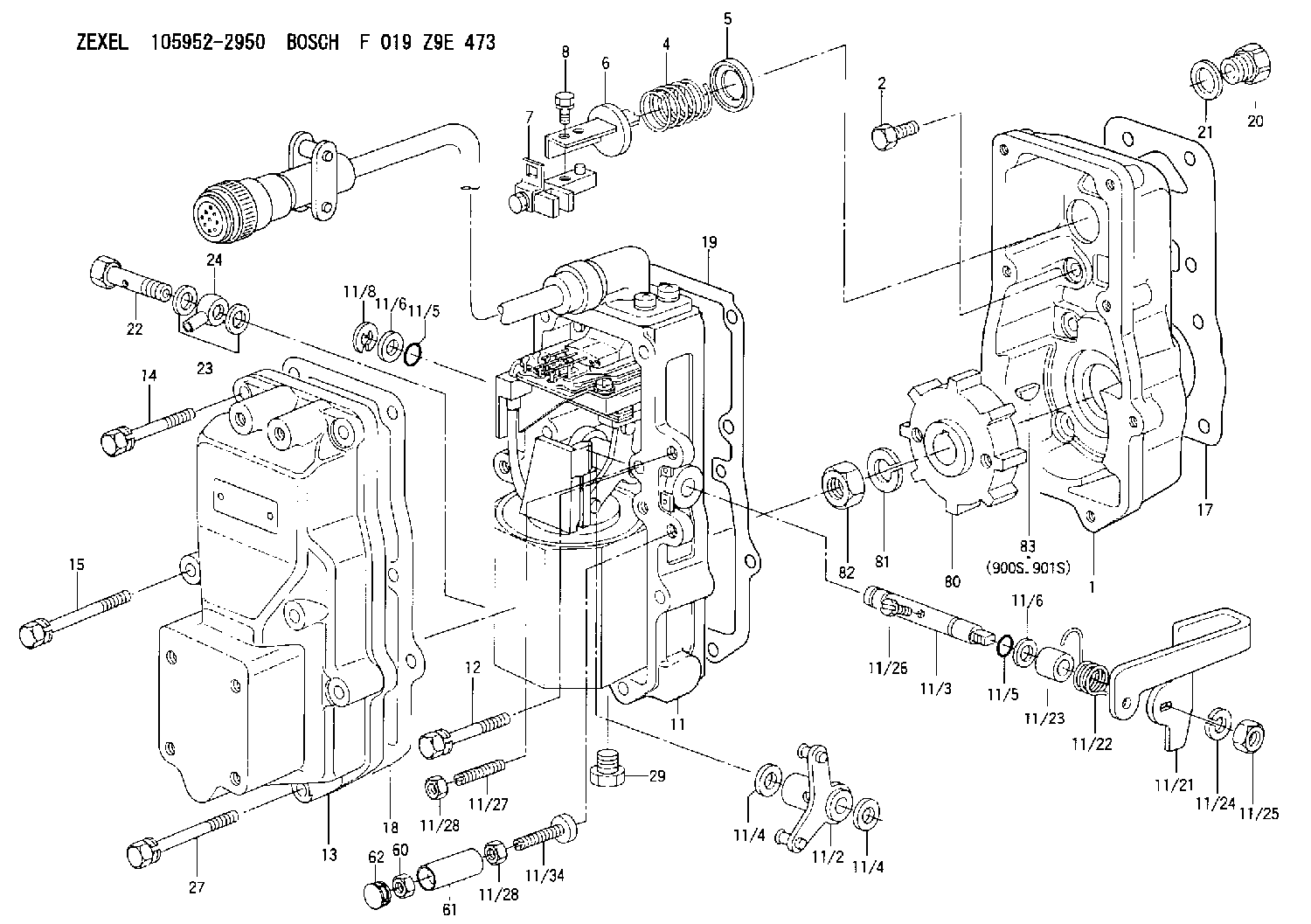

Scheme ###:
1. | [1] | 159560-0100 | GOVERNOR HOUSING |
2. | [8] | 139006-4100 | BLEEDER SCREW |
4. | [1] | 159564-5200 | COILED SPRING |
5. | [1] | 159564-4000 | SLOTTED WASHER |
6. | [1] | 159635-8800 | SLOTTED WASHER |
7. | [1] | 159636-4521 | CONNECTOR |
7B. | [1] | 159636-4621 | CONNECTOR |
7C. | [1] | 159636-4721 | CONNECTOR |
8. | [1] | 020105-1240 | BLEEDER SCREW M5P0.8L12 |
11. | [1] | 159579-8220 | ACTUATOR |
11/1. | [1] | 159562-4120 | PLATE;GOV. |
11/2. | [1] | 159636-5020 | STRAP |
11/3. | [1] | 159563-1700 | LEVER SHAFT |
11/4. | [2] | 029311-0170 | SHIM |
11/4. | [2] | 029311-0170 | SHIM |
11/5. | [2] | 139706-0000 | O-RING |
11/5. | [2] | 139706-0000 | O-RING |
11/6. | [2] | 014011-0140 | PLAIN WASHER D22&10.5T1.6 |
11/6. | [2] | 014011-0140 | PLAIN WASHER D22&10.5T1.6 |
11/8. | [1] | 016010-0940 | LOCKING WASHER |
11/10. | [4] | 020106-2540 | BLEEDER SCREW M6P1L25 |
11/12. | [4] | 020105-2040 | BLEEDER SCREW M5P0.8L20 |
11/17/6. | [1] | 016520-2410 | O-RING |
11/17/8. | [1] | 159910-9100 | PLUG HOUSING |
11/18. | [4] | 020106-1840 | BLEEDER SCREW M6P1L18 |
11/19. | [2] | 131002-2700 | ADAPTOR |
11/21. | [1] | 159563-6300 | CONTROL LEVER |
11/22. | [1] | 159584-2800 | COILED SPRING |
11/23. | [1] | 159563-1800 | BUSHING |
11/24. | [1] | 014110-8440 | LOCKING WASHER |
11/25. | [1] | 013030-8140 | UNION NUT M8P1.25H5 |
11/26. | [1] | 159563-1000 | FLAT-HEAD SCREW |
11/27. | [1] | 139006-9800 | FLAT-HEAD SCREW |
11/28. | [2] | 029240-6010 | UNION NUT M6P1.0H5* |
11/28. | [2] | 029240-6010 | UNION NUT M6P1.0H5* |
11/32. | [1] | 020106-1440 | BLEEDER SCREW M6P1.0L14 |
11/34. | [1] | 139006-9900 | FLAT-HEAD SCREW |
12. | [2] | 020106-4040 | BLEEDER SCREW |
13. | [1] | 159561-0400 | GOVERNOR COVER |
14. | [4] | 139006-9300 | BLEEDER SCREW |
15. | [2] | 139006-9200 | BLEEDER SCREW |
17. | [1] | 154371-5600 | GASKET |
18. | [1] | 154390-0400 | GASKET |
19. | [1] | 154390-0500 | GASKET |
20. | [1] | 155404-1700 | CAP |
21. | [1] | 026524-3040 | GASKET |
22. | [1] | 029731-4680 | EYE BOLT |
23. | [3] | 029341-4130 | GASKET D20&13.8T2* |
24. | [1] | 027114-1040 | INLET UNION |
27. | [2] | 139006-9400 | BLEEDER SCREW |
29. | [1] | 029111-4120 | SCREW PLUG M14P1.5L13 |
60. | [2] | 013020-6040 | UNION NUT M6P1H5 |
61. | [2] | 159586-8400 | SLIDING PIECE |
62. | [2] | 159586-8500 | CAP |
80. | [1] | 159584-0200 | TOOTHED GEAR |
81. | [1] | 014111-2420 | LOCKING WASHER |
82. | [1] | 013031-2120 | UNION NUT |
83. | [1] | 025803-1310 | WOODRUFF KEY |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
Include in #1:
106681-4460
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
105952-2950
F 019 Z9E 473
ACTUATOR
K
K
