105952-2940 ZEXEL F 019 Z9E 083 BOSCH ACTUATOR f019z9e083 1059522940

Information actuator

BOSCH F 019 Z9E 083 f019z9e083

ZEXEL 105952-2940 1059522940

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ACTUATOR 105952-2940 zexel genuine, new aftermarket engine parts with delivery

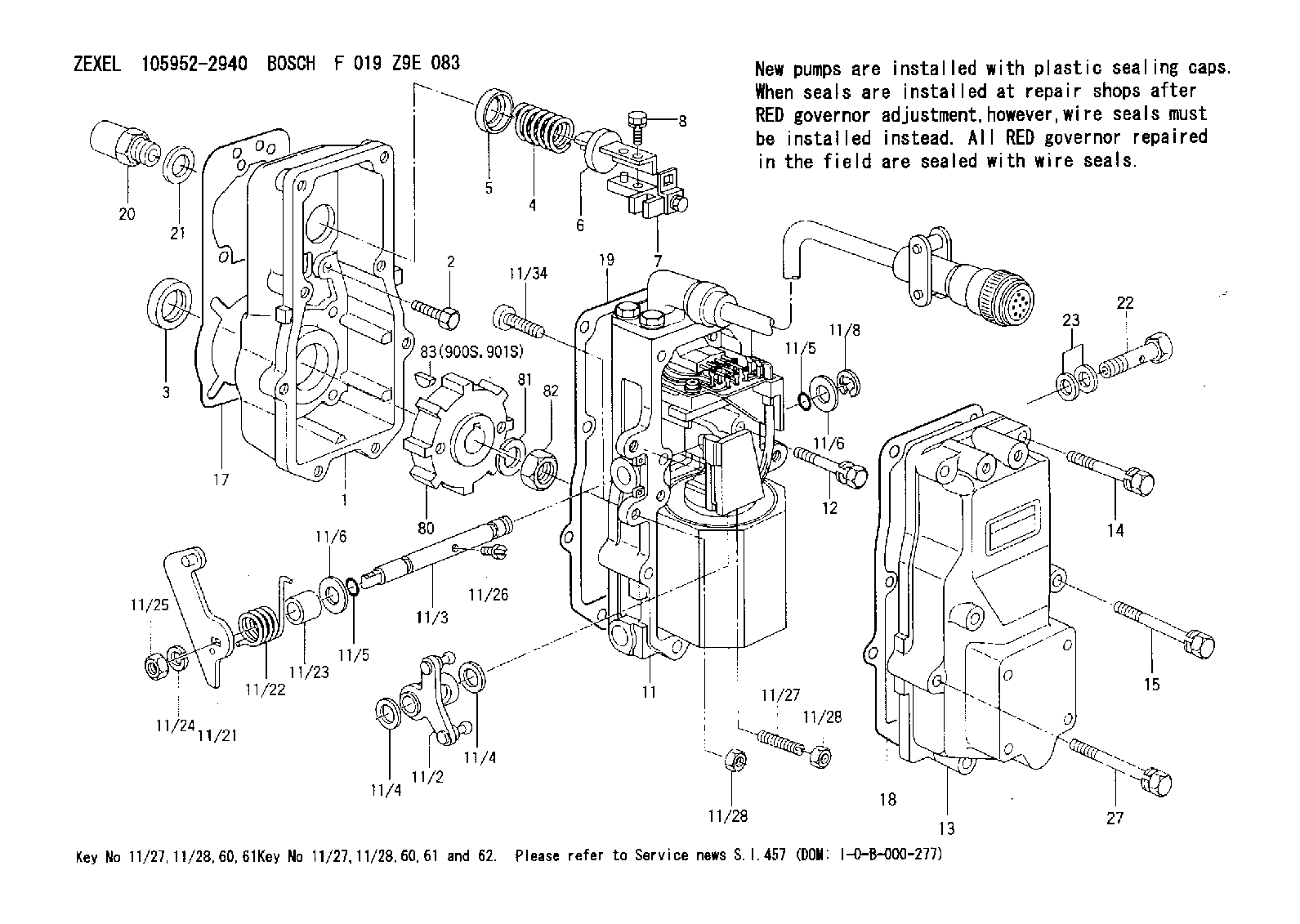

Scheme ###:

1.	[1]	159560-0100	GOVERNOR HOUSING
2.	[8]	139006-4100	BLEEDER SCREW
3.	[1]	029621-7050	PACKING RING
4.	[1]	159564-5200	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159635-8800	SLOTTED WASHER
7.	[1]	159636-4521	CONNECTOR
7B.	[1]	159636-4621	CONNECTOR
7C.	[1]	159636-4721	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW
11.	[1]	159579-8020	ACTUATOR
11/2.	[1]	159636-5020	STRAP
11/3.	[1]	159563-1700	LEVER SHAFT
11/4.	[2]	029311-0170	SHIM
11/4.	[2]	029311-0170	SHIM
11/5.	[2]	159635-0200	O-RING
11/5.	[2]	159635-0200	O-RING
11/6.	[2]	014011-0140	PLAIN WASHER
11/6.	[2]	014011-0140	PLAIN WASHER
11/8.	[1]	016010-0940	LOCKING WASHER
11/9.	[1]	159585-0020	LINEAR DC MOTOR
11/10.	[4]	010206-2520	HEX-SOCKET-HEAD CAP SCREW
11/12.	[4]	020105-2040	BLEEDER SCREW
11/17.	[1]	159589-0620	CABLE SET
11/18.	[4]	020106-1840	BLEEDER SCREW
11/19.	[1]	131002-2700	ADAPTOR
11/21.	[1]	159563-2300	CONTROL LEVER
11/22.	[1]	159563-4800	COILED SPRING
11/23.	[1]	159563-1800	BUSHING
11/24.	[1]	014110-8440	LOCKING WASHER D15.4&8.2T2
11/25.	[1]	013030-8140	UNION NUT
11/26.	[1]	159563-1000	FLAT-HEAD SCREW
11/27.	[1]	139006-9800	FLAT-HEAD SCREW
11/28.	[2]	013020-6040	UNION NUT
11/28.	[2]	013020-6040	UNION NUT
11/29.	[1]	159563-2701	BRACKET
11/32.	[2]	020106-1440	BLEEDER SCREW
11/34.	[1]	139006-9900	FLAT-HEAD SCREW
11/40.	[4]	014010-6140	PLAIN WASHER D13&6.5T1.0
11/41.	[4]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-0400	GOVERNOR COVER
14.	[4]	139006-9300	BLEEDER SCREW
15.	[2]	139006-9200	BLEEDER SCREW
17.	[1]	154371-5600	GASKET
18.	[1]	154390-0400	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	155404-3400	CAP
21.	[1]	026524-3040	GASKET
22.	[1]	029731-4680	EYE BOLT
23.	[2]	029341-4130	GASKET
27.	[2]	139006-9400	BLEEDER SCREW
60.	[2]	013020-6040	UNION NUT
61.	[2]	159586-8400	SLIDING PIECE
80.	[1]	159564-8600	TOOTHED GEAR
81.	[1]	014111-2420	LOCKING WASHER
82.	[1]	013031-2120	UNION NUT
83.	[1]	025803-1310	WOODRUFF KEY 13 MM
900S.	[1]	025803-1310	WOODRUFF KEY 13 MM
901S.	[1]	025803-1610	WOODRUFF KEY 16 MM

Include in #1:

106673-4240 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105952-2940

F 019 Z9E 083

ACTUATOR
K
