105952-2920 ZEXEL F 019 Z9E 044 BOSCH ACTUATOR f019z9e044 1059522920




Information actuator

BOSCH F 019 Z9E 044 f019z9e044
ZEXEL 105952-2920 1059522920
105952-2920 ACTUATOR
Rating:
50
Buy ACTUATOR 105952-2920 zexel genuine, new aftermarket engine parts with delivery

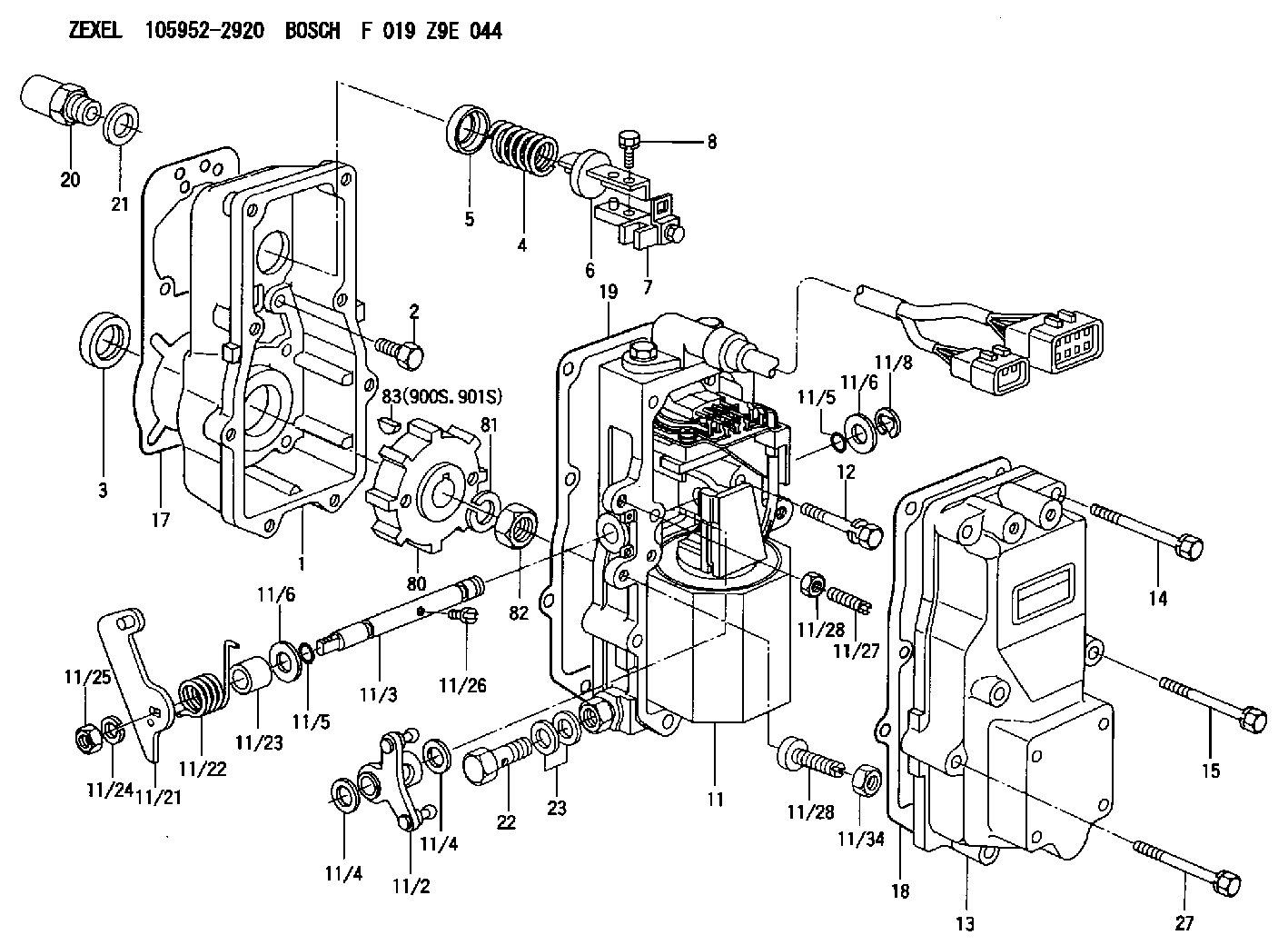

Scheme ###:

1. [1] 159560-0100 GOVERNOR HOUSING
2. [8] 139006-4100 BLEEDER SCREW
3. [1] 029621-7050 PACKING RING
4. [1] 159635-8500 COILED SPRING
5. [1] 159564-4000 SLOTTED WASHER
6. [1] 159635-8800 SLOTTED WASHER
7. [1] 159636-4521 CONNECTOR
7B. [1] 159636-4621 CONNECTOR
7C. [1] 159636-4721 CONNECTOR
8. [1] 020105-1240 BLEEDER SCREW M5P0.8L12
11. [1] 159579-7220 ACTUATOR
11/2. [1] 159636-5020 STRAP
11/3. [1] 159563-1700 LEVER SHAFT
11/4. [2] 029311-0170 SHIM
11/4. [2] 029311-0170 SHIM
11/5. [2] 159635-0200 O-RING
11/5. [2] 159635-0200 O-RING
11/6. [2] 014011-0140 PLAIN WASHER D22&10.5T1.6
11/6. [2] 014011-0140 PLAIN WASHER D22&10.5T1.6
11/8. [1] 016010-0940 LOCKING WASHER
11/10. [4] 139006-9100 BLEEDER SCREW
11/12. [4] 020105-2040 BLEEDER SCREW M5P0.8L20
11/17/6. [1] 016520-2410 O-RING
11/17/8. [1] 159910-3300 SOCKET HOUSING
11/17/12. [1] 159910-3500 SOCKET HOUSING
11/17/19. [1] 159910-3400 HOLDER
11/17/20. [1] 159910-3600 HOLDER
11/18. [4] 020106-1840 BLEEDER SCREW M6P1L18
11/19. [1] 131002-2700 ADAPTOR
11/21. [1] 159583-2800 CONTROL LEVER
11/22. [1] 159563-4800 COILED SPRING
11/23. [1] 159563-1800 BUSHING
11/24. [1] 014110-8440 LOCKING WASHER
11/25. [1] 013030-8140 UNION NUT M8P1.25H5
11/26. [1] 159563-1000 FLAT-HEAD SCREW
11/27. [1] 155615-1700 FLAT-HEAD SCREW
11/28. [2] 029240-6010 UNION NUT M6P1.0H5*
11/28. [2] 029240-6010 UNION NUT M6P1.0H5*
11/29. [1] 159563-2701 BRACKET
11/32. [2] 020106-1440 BLEEDER SCREW M6P1.0L14
11/34. [1] 159563-8400 FLAT-HEAD SCREW
12. [2] 020106-4040 BLEEDER SCREW
13. [1] 159561-0400 GOVERNOR COVER
14. [4] 139006-9300 BLEEDER SCREW
15. [2] 139006-9200 BLEEDER SCREW
17. [1] 154371-5600 GASKET
18. [1] 154390-0400 GASKET
19. [1] 154390-0500 GASKET
20. [1] 155404-3400 CAP
21. [1] 026524-3040 GASKET
22. [1] 029731-4680 EYE BOLT
23. [2] 029341-4130 GASKET D20&13.8T2*
27. [2] 139006-9400 BLEEDER SCREW
80. [1] 159564-9200 TOOTHED GEAR
81. [1] 014111-2420 LOCKING WASHER
82. [1] 013031-2120 UNION NUT
83. [1] 025803-1310 WOODRUFF KEY
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106685-4164 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105952-2920
F 019 Z9E 044

ACTUATOR
K 14JT ACTUATOR GOV
