105952-2810 ZEXEL F 019 Z9E 820 BOSCH ACTUATOR f019z9e820 1059522810

Information actuator

BOSCH F 019 Z9E 820 f019z9e820

ZEXEL 105952-2810 1059522810

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ACTUATOR 105952-2810 zexel genuine, new aftermarket engine parts with delivery

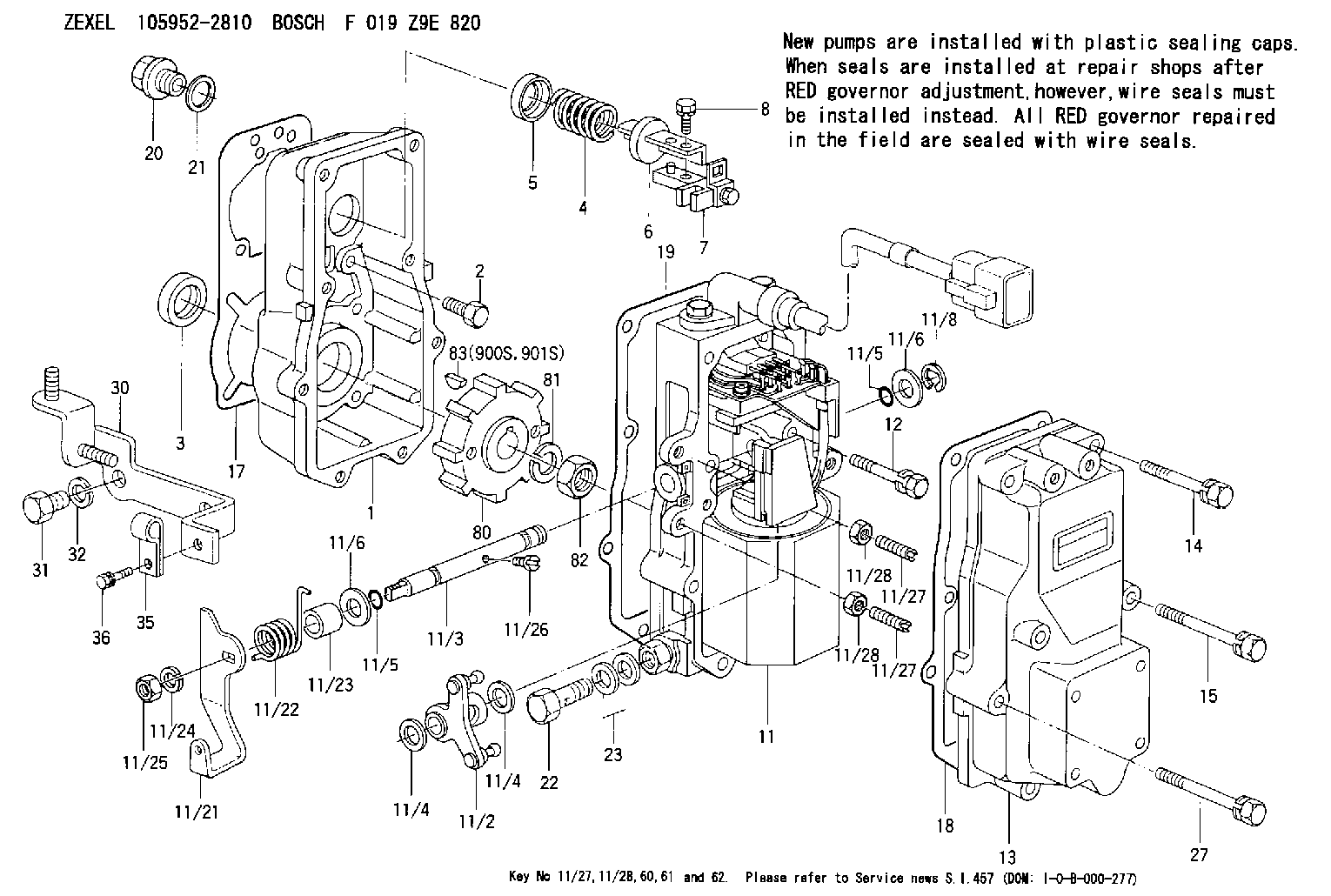

Scheme ###:

1.	[1]	159560-0900	GOVERNOR HOUSING
2.	[8]	139006-4100	BLEEDER SCREW
3.	[1]	029621-7050	PACKING RING
4.	[1]	159564-0000	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159635-8800	SLOTTED WASHER
7.	[1]	159636-3121	CONNECTOR
7B.	[1]	159636-3321	CONNECTOR
7C.	[1]	159636-3521	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159569-7821	ACTUATOR
11/2.	[1]	159583-1020	STRAP
11/3.	[1]	159563-1700	LEVER SHAFT
11/4.	[2]	029311-0170	SHIM
11/4.	[2]	029311-0170	SHIM
11/5.	[2]	016500-0710	O-RING
11/5.	[2]	016500-0710	O-RING
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/8.	[1]	016010-0940	LOCKING WASHER
11/10.	[4]	020106-2540	BLEEDER SCREW M6P1L25
11/12.	[4]	020105-2040	BLEEDER SCREW M5P0.8L20
11/18.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
11/19.	[1]	134002-0200	ADAPTOR
11/21.	[1]	159563-6100	CONTROL LEVER
11/22.	[1]	159563-1600	COILED SPRING
11/23.	[1]	159563-1800	BUSHING
11/24.	[1]	014110-8440	LOCKING WASHER
11/25.	[1]	013030-8140	UNION NUT M8P1.25H5
11/26.	[1]	159563-1000	FLAT-HEAD SCREW
11/27.	[2]	139006-9800	FLAT-HEAD SCREW
11/27.	[2]	139006-9800	FLAT-HEAD SCREW
11/28.	[2]	013020-6040	UNION NUT M6P1H5
11/28.	[2]	013020-6040	UNION NUT M6P1H5
11/32.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-0400	GOVERNOR COVER
14.	[4]	139006-9300	BLEEDER SCREW
15.	[2]	139006-9200	BLEEDER SCREW
17.	[1]	159566-0400	GASKET
18.	[1]	154390-0400	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	153021-6300	CAP
21.	[1]	026524-3040	GASKET
22.	[1]	029731-4680	EYE BOLT
23.	[2]	139514-0300	GASKET
27.	[2]	139006-9400	BLEEDER SCREW
30.	[1]	159584-1320	BRACKET
31.	[2]	010010-2040	BLEEDER SCREW M10P1.5L20
32.	[2]	014111-0440	LOCKING WASHER
35.	[1]	159564-7100	CLAMPING BAND
36.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
60.	[2]	013020-6040	UNION NUT M6P1H5
80.	[1]	159584-0000	TOOTHED GEAR
81.	[1]	014111-2420	LOCKING WASHER
82.	[1]	013031-2120	UNION NUT
83.	[1]	025803-1310	WOODRUFF KEY
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

108622-3406 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105952-2810

F 019 Z9E 820

ACTUATOR
K 14JD ACTUATOR GOV

Information:

Cylinder Heads Without Guides Cylinder Heads With Guides New cylinder heads have been introduced on the 4.236 engine. The new heads have replaceable valve guides. The differences between the earlier and current heads are explained below. The change became effective at engine number LD---U040236M and up. See General Information in Systems Operation for the engine serial number location.Double valve springs:(1) Outer spring: Length under test force ... 45.22 mm (1.780 in)Test force ... 178 9 N (40 2 lb)(Damper coils of spring go toward cylinder head).(2) Inner spring: Length under test force ... 39.70 mm (1.563 in)Test force ... 69 4 N (15.4 1 lb)(Damper coils of spring go toward cylinder head).Single valve springs (not shown). Length under test force ... 41.4 mm (1.63 in)Test force ... 251 13 N (56.4 3 lb)(No damper coils).Cylinder Heads Without Removable Guides
(3) Exhaust valve stem diameter ... 9.449 to 9.469 mm (0.372 to 0.3728 in) Valves are available in stem oversizes of 0.08, 0.38 and 0.76 mm (0.003, .015 and .030 in).Exhaust valve overall length ... 123.11 to 123.52 mm (4.847 to 4.863 in)Bore in cylinder head for valve ... 9.506 to 9.531 mm (0.3743 to 0.3752 in)Clearance between valve stem and bore ... 0.0368 to 0.0826 mm (0.00145 to 0.00325 in)Maximum permissible clearance between valve stem and bore ... 0.15 mm (0.006 in)(4) Intake valve stem diameter ... 9.462 to 9.487 mm (0.3725 to 0.3735 in) Valves are available in stem oversizes of 0.08, 0.38, and 0.76 mm (0.003, .015 and .030 in).Intake valve overall length ... 122.71 to 123.11 mm (4.831 to 4.847 in)Bore in cylinder head for valve ... 9.506 to 9.531 mm (0.3743 to 0.3752 in)Clearance between valve stem and bore ... 0.0191 to 0.0699 mm (0.00075 to 0.00275 in)Maximum permissible clearance between valve stem and bore ... 0.13 mm (0.005 in)Cylinder Heads With Removable Guides
(5) Valve guides: Inside diameter ... 9.53 to 9.55 mm (0.375 to 0.376 in)Outside diameter ... 15.900 to 15.913 mm (0.6260 to 0.6265 in)Parent bore diameter in cylinder head for valve guide ... 15.875 to 15.888 mm (0.6250 to 0.6255 in)Interference fit of guide in cylinder head ... 0.005 to 0.046 mm (0.0002 to 0.0018 in)Overall length of guide:Intake ... 57.94 mm (2.281 in)Exhaust ... 61.913 mm (2.4375 in)Projection of guide above valve spring recess ... 15.09 mm (0.594 in)(6) Exhaust valve stem diameter ... 9.449 to 9.468 mm (0.3720 to 0.3728 in) Clearance of valve in guide ... 0.058 to 0.102 mm (0.0023 to 0.0040 in)Maximum
