105952-2800 ZEXEL F 019 Z3E 909 BOSCH ACTUATOR f019z3e909 1059522800




Information actuator

BOSCH F 019 Z3E 909 f019z3e909
ZEXEL 105952-2800 1059522800
105952-2800 ACTUATOR
Rating:
36
Buy ACTUATOR 105952-2800 zexel genuine, new aftermarket engine parts with delivery

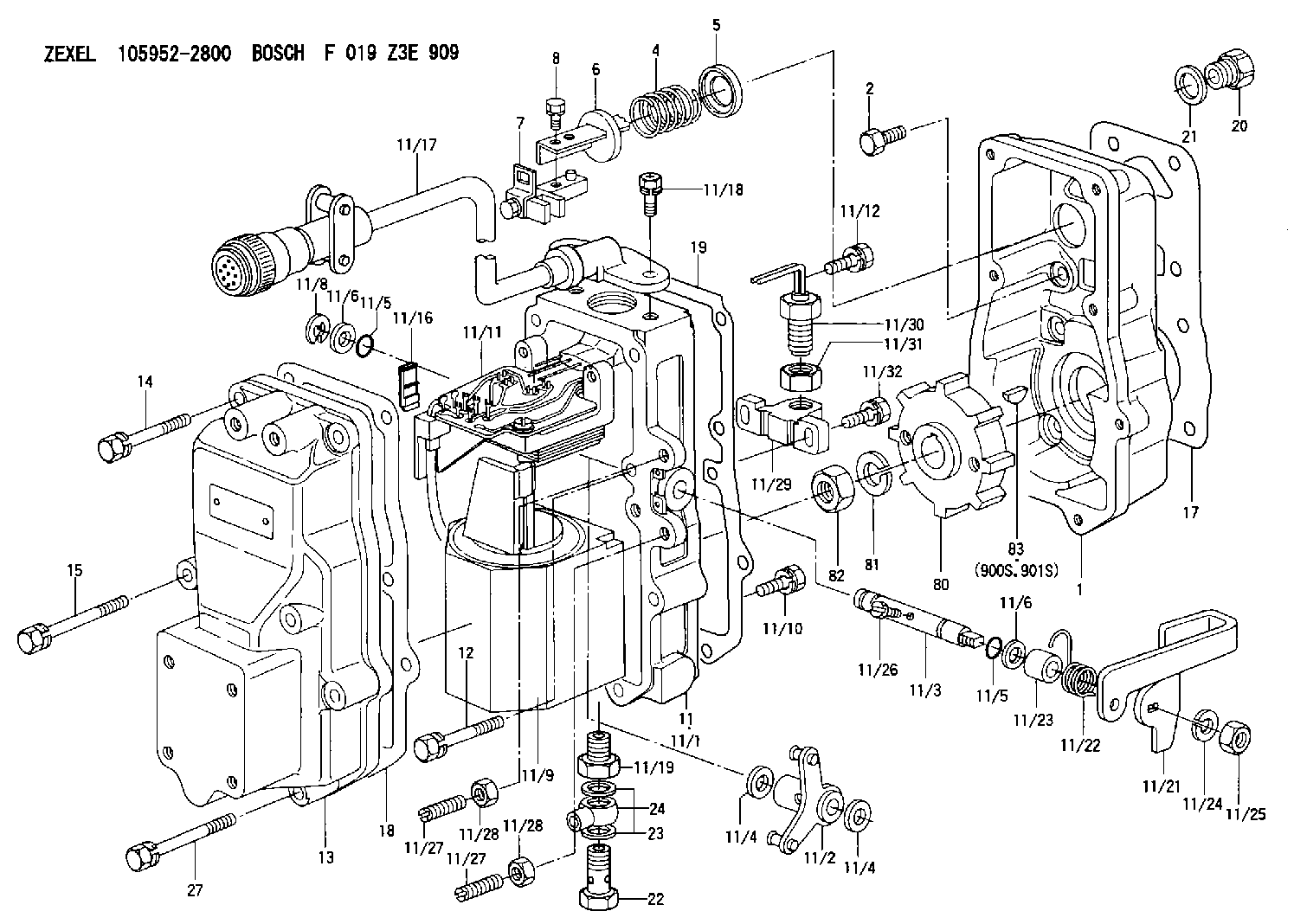

Scheme ###:

1. [1] 159560-0100 GOVERNOR HOUSING
2. [8] 139006-4100 BLEEDER SCREW
4. [1] 159564-5200 COILED SPRING
5. [1] 159564-4000 SLOTTED WASHER
6. [1] 159564-4100 SLOTTED WASHER
7. [1] 159636-4521 CONNECTOR
7B. [1] 159636-4621 CONNECTOR
7C. [1] 159636-4721 CONNECTOR
8. [1] 020105-1240 BLEEDER SCREW M5P0.8L12
11. [1] 159579-6320 ACTUATOR
11/2. [1] 159636-5020 STRAP
11/3. [1] 159563-1700 LEVER SHAFT
11/4. [2] 029311-0170 SHIM
11/4. [2] 029311-0170 SHIM
11/5. [2] 139706-0000 O-RING
11/5. [2] 139706-0000 O-RING
11/6. [2] 014011-0140 PLAIN WASHER D22&10.5T1.6
11/6. [2] 014011-0140 PLAIN WASHER D22&10.5T1.6
11/10. [4] 020106-2540 BLEEDER SCREW M6P1L25
11/12. [4] 020105-2040 BLEEDER SCREW M5P0.8L20
11/17. [1] 159587-9920 CABLE SET
11/18. [2] 020106-1440 BLEEDER SCREW M6P1.0L14
11/19. [1] 131002-2700 ADAPTOR
11/22. [1] 159584-2800 COILED SPRING
11/23. [1] 159563-1800 BUSHING
11/24. [1] 014110-8440 LOCKING WASHER
11/25. [1] 013030-8140 UNION NUT M8P1.25H5
11/26. [1] 159563-1000 FLAT-HEAD SCREW
11/27. [2] 155615-1700 FLAT-HEAD SCREW
11/27. [2] 155615-1700 FLAT-HEAD SCREW
11/28. [2] 029240-6010 UNION NUT M6P1.0H5*
11/28. [2] 029240-6010 UNION NUT M6P1.0H5*
11/29. [1] 159563-2701 BRACKET
11/32. [2] 020106-1440 BLEEDER SCREW M6P1.0L14
12. [2] 020106-4040 BLEEDER SCREW
13. [1] 159561-0400 GOVERNOR COVER
14. [4] 139006-9300 BLEEDER SCREW
15. [2] 139006-9200 BLEEDER SCREW
17. [1] 154371-5600 GASKET
18. [1] 154390-0400 GASKET
19. [1] 154390-0500 GASKET
20. [1] 155404-1700 CAP
21. [1] 026524-3040 GASKET
22. [1] 029731-4680 EYE BOLT
23. [2] 029341-4130 GASKET D20&13.8T2*
24. [1] 152308-1900 INLET UNION
27. [2] 139006-9400 BLEEDER SCREW
80. [1] 159564-8600 TOOTHED GEAR
81. [1] 014111-2420 LOCKING WASHER
82. [1] 013031-2120 UNION NUT
83. [1] 025803-1310 WOODRUFF KEY
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106673-4180 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105952-2800
105952-2801
F 019 Z3E 909

ACTUATOR
* K




Information:

Start By:a. remove all turbochargersb. remove crankshaft rear seal and wear sleeve 1. Disconnect connector (1). 2. Attach Tool (A) and fasten a hoist.3. Remove four bolts (3) and stack (2). The weight of the stack and hardware is 45 kg (100 lb). 4. Remove hose clamp (6).5. Remove five bolts (5) and support (4).6. Repeat Steps 4 and 5 for the other side of the engine. 7. Remove six bolts (7) that connect oil pan (8) to flywheel housing (9). Loosen the rest of the bolts that hold the oil pan in position. 8. Attach Tool (A) to the flywheel housing and a hoist. 9. Lift the end of the engine enough so a 1/2 in. Hardened Washer (10) can be installed on each side of the engine between the oil pan and the cylinder block.10. Install blocks under the oil pan to support the engine when the flywheel housing is removed. Lower the engine onto the blocks. 11. Remove twenty one bolts (11) and flywheel housing (9). The weight of the flywheel housing is 91 kg (200 lb).Install Flywheel Housing
1. Install two 1/2 -13 NC × 4 in. Long Guide Bolts in the cylinder block. Make sure gasket (12) is in position. The cylinder block, both sides of gasket (12) and the surface of the flywheel housing that makes contact with the gasket must not have any oil, fuel, water or gasket adhesive on them when the flywheel housing is installed on the engine.2. Install Tool (A) on the flywheel housing. Install flywheel housing (9) on the engine. The weight of the flywheel housing is approximately 91 kg (200 lb). Leave Tool (A) attached.
Torque Sequence Put 9S-3263 Thread Lock on bolts (17) through (20) before installation.3. Install the bolts that hold the flywheel housing in place.4. Use the following procedure to tighten the bolts: a. Tighten bolts 1 through 8 in number sequence to 136 14 N m (100 10 lb ft).b. Tighten bolts 9 through 20 in number sequence to 55 7 N m (41 5 lb ft).c. Again, tighten bolts 1 through 8 in number sequence to 136 14 N m (100 10 lb ft).d. Again, tighten bolts 9 through 20 in number sequence to 55 7 N m (41 5 lb ft). If a new gasket is installed, cut the ends of the gasket so it is even with the bottom of the cylinder block.5. Use Tool (A) and a hoist to lift the flywheel housing and engine enough so that the washers between the oil pan and the cylinder block can be removed. 6. Tighten the bolts that hold the oil pan to the cylinder block. Install six bolts (7) that hold oil pan (8) to flywheel housing (9). 7. Install support (4) with five bolts (5). Install clamp (6) to a torque of 7.0 1.5 N m (5 1 lb ft).8. Repeat Step (7) for the other side of the engine.
