Information actuator
BOSCH
F 019 Z2E 972
f019z2e972
ZEXEL
105952-2761
1059522761

Rating:

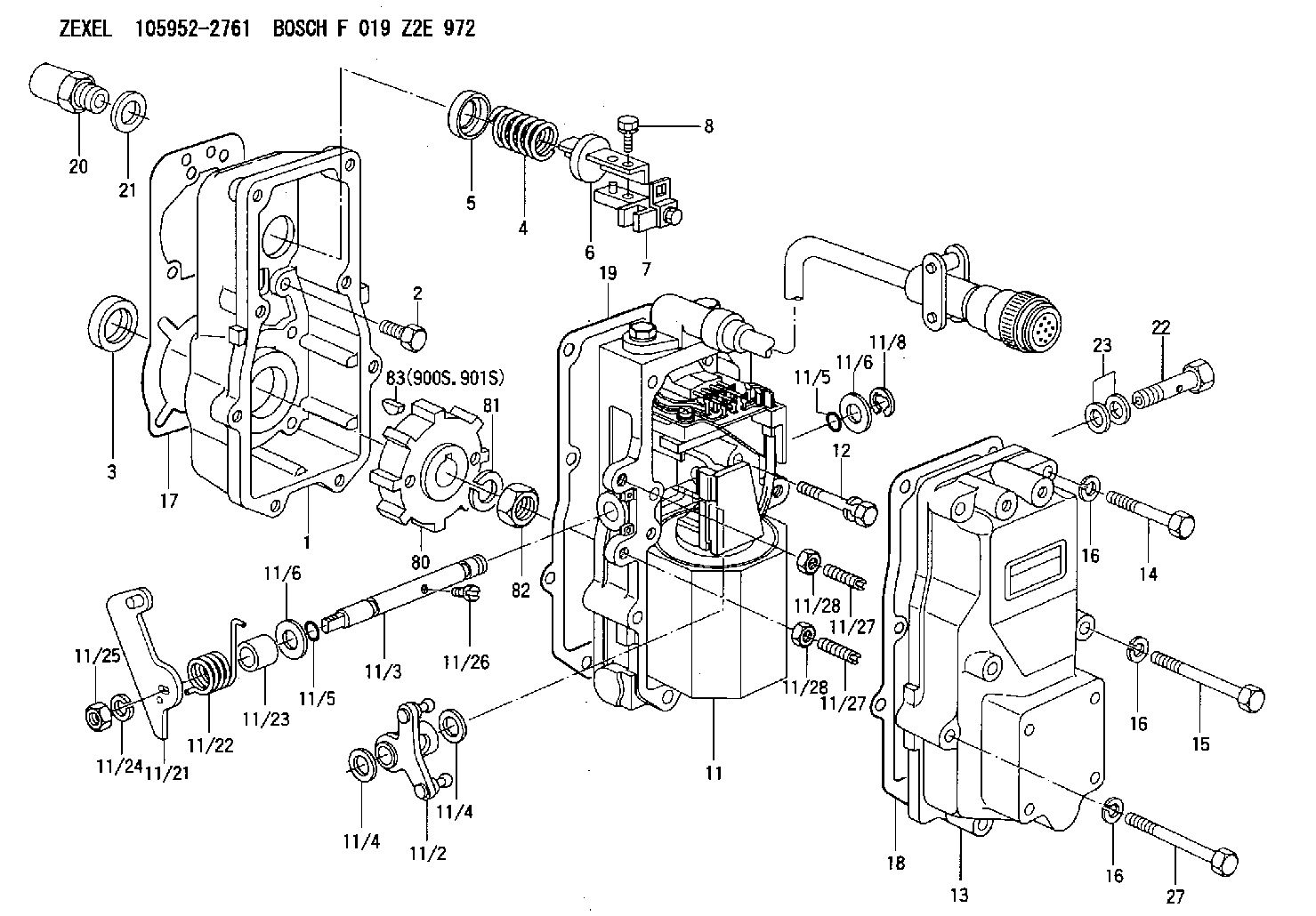

Scheme ###:
1. | [1] | 159560-0100 | GOVERNOR HOUSING |
2. | [8] | 139006-4100 | BLEEDER SCREW |
3. | [1] | 029621-7050 | PACKING RING |
4. | [1] | 159564-5200 | COILED SPRING |
5. | [1] | 159564-4000 | SLOTTED WASHER |
6. | [1] | 159564-4100 | SLOTTED WASHER |
7. | [1] | 159636-4520 | CONNECTOR |
7B. | [1] | 159636-4620 | CONNECTOR |
7C. | [1] | 159636-4720 | CONNECTOR |
8. | [1] | 020105-1240 | BLEEDER SCREW M5P0.8L12 |
11. | [1] | 159579-6221 | ACTUATOR |
11/1. | [1] | 159562-1120 | PLATE;GOV. |
11/2. | [1] | 159636-5020 | STRAP |
11/3. | [1] | 159563-1700 | LEVER SHAFT |
11/4. | [2] | 029311-0170 | SHIM |
11/4. | [2] | 029311-0170 | SHIM |
11/5. | [2] | 016500-0710 | O-RING |
11/5. | [2] | 016500-0710 | O-RING |
11/6. | [2] | 014011-0140 | PLAIN WASHER D22&10.5T1.6 |
11/6. | [2] | 014011-0140 | PLAIN WASHER D22&10.5T1.6 |
11/8. | [1] | 016010-0940 | LOCKING WASHER |
11/10. | [4] | 010206-2520 | HEX-SOCKET-HEAD CAP SCREW |
11/12. | [4] | 020105-2040 | BLEEDER SCREW M5P0.8L20 |
11/17. | [1] | 159568-5623 | CABLE SET |
11/18. | [2] | 159563-2100 | BLEEDER SCREW |
11/19. | [1] | 131002-2700 | ADAPTOR |
11/21. | [1] | 159563-2300 | CONTROL LEVER |
11/22. | [1] | 159563-1600 | COILED SPRING |
11/23. | [1] | 159563-1800 | BUSHING |
11/24. | [1] | 014110-8440 | LOCKING WASHER |
11/25. | [1] | 013030-8140 | UNION NUT M8P1.25H5 |
11/26. | [1] | 159563-1000 | FLAT-HEAD SCREW |
11/27. | [2] | 155615-1700 | FLAT-HEAD SCREW |
11/27. | [2] | 155615-1700 | FLAT-HEAD SCREW |
11/28. | [2] | 029240-6010 | UNION NUT M6P1.0H5* |
11/28. | [2] | 029240-6010 | UNION NUT M6P1.0H5* |
11/29. | [1] | 159563-2701 | BRACKET |
11/30. | [1] | 479749-2400 | PULSE GENERATOR |
11/31. | [1] | 159592-0300 | UNION NUT |
11/32. | [2] | 020106-1440 | BLEEDER SCREW M6P1.0L14 |
11/40. | [4] | 014010-6140 | PLAIN WASHER D13&6.5T1 |
11/41. | [4] | 014110-6440 | LOCKING WASHER |
11/42. | [2] | 014110-6440 | LOCKING WASHER |
12. | [2] | 020106-4040 | BLEEDER SCREW |
13. | [1] | 159561-0400 | GOVERNOR COVER |
14. | [4] | 139006-9300 | BLEEDER SCREW |
15. | [2] | 139006-9200 | BLEEDER SCREW |
16. | [8] | 014110-6440 | LOCKING WASHER |
16. | [8] | 014110-6440 | LOCKING WASHER |
16. | [8] | 014110-6440 | LOCKING WASHER |
17. | [1] | 154371-5600 | GASKET |
18. | [1] | 154390-0400 | GASKET |
19. | [1] | 154390-0500 | GASKET |
20. | [1] | 155404-3400 | CAP |
21. | [1] | 026524-3040 | GASKET |
22. | [1] | 029731-4680 | EYE BOLT |
23. | [2] | 029341-4130 | GASKET D20&13.8T2* |
27. | [2] | 139006-9400 | BLEEDER SCREW |
80. | [1] | 159584-0200 | TOOTHED GEAR |
81. | [1] | 014111-2420 | LOCKING WASHER |
82. | [1] | 013031-2120 | UNION NUT |
83. | [1] | 025803-1310 | WOODRUFF KEY |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
Include in #1:
106685-4321
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
1. Turn the engine counterclockwise (as seen from the flywheel end of the engine) with Tool (A) until the No. 1 piston is at top center (TC) on the compression stroke. Install the timing bolt. Install 6V-2112 Timing Pin through the hole in the injection pump housing. See the topic "Finding Top Center Compression Position for NO. 1 Piston" in SENR6577 Testing & Adjusting. Tool (B), 6V-2112 Timing Pin, replaces 6V-6019 Timing Pin. 2. Remove two bolts (1).3. Remove eleven bolts (2) and cover (3). 4. Remove four bolts (5), retainer (6) and automatic timing advance (4).Install Automatic Timing Advance
1. Install automatic timing advance (4). Install retainer (6) and four bolts (5).2. Tighten the bolts (5) with fingers until there is a small amount of friction (slight drag) between the retainer and automatic timing advance (4). This friction will hold the unit against the timing gears. This prevents play (backlash) when gears are turned to the correct position.3. Remove the timing bolt. Turn the flywheel until the timing pin will go into the groove in the injection pump camshaft.4. With the timing pin installed, turn the flywheel clockwise (opposite the direction of engine rotation) a minimum of 30 degrees. The reason for this step is to be sure the play is removed from the timing gears when the engine is put on top center (TC).5. Turn the flywheel in the direction of engine rotation until the No. 1 piston of the engine is on top center compression stroke. Then turn the timing bolt into the threaded hole in the flywheel.6. Tighten bolts (5) to 25 N m (20 lb ft). Then remove the timing pin from the injection pump housing.7. Tighten bolts (5) to 135 7 N m (100 5 lb ft). Then remove the timing bolt from the flywheel.8. Turn the crankshaft two complete revolutions and check the timing again to see that timing pin will go into the groove in the injection pump camshaft with bolt in flywheel.9. If timing is not correct, do the procedure of Steps 1 through 7 again. If the timing is correct, be sure to remove the timing pin and the timing bolt. 5. Install eleven bolts (2) and cover (3).6. Install two bolts (1). Disassemble Automatic Timing Advance
Start By:a. remove automatic timing advance 1. Remove flange assembly (1). 2. Remove two springs (2) and two weights (3) from drive gear assembly (4). 3. Remove two slides (5) from pistons (6).4. Separate drive gear assembly (4) from advance sleeve (7).Assemble Automatic Timing Advance
1. Put weights (3) in position in flange assembly (1) as shown.2. Install springs (2) in flange assembly (1). 4. Use 1P-008 General Purpose Lubricant to hold slides (5) in position on drive gear assembly (4). Install slides (5) on pistons (6).5. Install advance sleeve (7) to drive gear assembly (4). 6. Install drive gear assembly (4) on flange assembly (1). Make sure slides (5) fit in grooves of the weights.End By:a. install automatic timing advance
1. Install automatic timing advance (4). Install retainer (6) and four bolts (5).2. Tighten the bolts (5) with fingers until there is a small amount of friction (slight drag) between the retainer and automatic timing advance (4). This friction will hold the unit against the timing gears. This prevents play (backlash) when gears are turned to the correct position.3. Remove the timing bolt. Turn the flywheel until the timing pin will go into the groove in the injection pump camshaft.4. With the timing pin installed, turn the flywheel clockwise (opposite the direction of engine rotation) a minimum of 30 degrees. The reason for this step is to be sure the play is removed from the timing gears when the engine is put on top center (TC).5. Turn the flywheel in the direction of engine rotation until the No. 1 piston of the engine is on top center compression stroke. Then turn the timing bolt into the threaded hole in the flywheel.6. Tighten bolts (5) to 25 N m (20 lb ft). Then remove the timing pin from the injection pump housing.7. Tighten bolts (5) to 135 7 N m (100 5 lb ft). Then remove the timing bolt from the flywheel.8. Turn the crankshaft two complete revolutions and check the timing again to see that timing pin will go into the groove in the injection pump camshaft with bolt in flywheel.9. If timing is not correct, do the procedure of Steps 1 through 7 again. If the timing is correct, be sure to remove the timing pin and the timing bolt. 5. Install eleven bolts (2) and cover (3).6. Install two bolts (1). Disassemble Automatic Timing Advance
Start By:a. remove automatic timing advance 1. Remove flange assembly (1). 2. Remove two springs (2) and two weights (3) from drive gear assembly (4). 3. Remove two slides (5) from pistons (6).4. Separate drive gear assembly (4) from advance sleeve (7).Assemble Automatic Timing Advance
1. Put weights (3) in position in flange assembly (1) as shown.2. Install springs (2) in flange assembly (1). 4. Use 1P-008 General Purpose Lubricant to hold slides (5) in position on drive gear assembly (4). Install slides (5) on pistons (6).5. Install advance sleeve (7) to drive gear assembly (4). 6. Install drive gear assembly (4) on flange assembly (1). Make sure slides (5) fit in grooves of the weights.End By:a. install automatic timing advance
